8.4
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
WIRE COLOR PRIMARY CIRCUIT FUNCTION
OR/RD
Park Brake Monitor Circuit
(Grounded in Park)
VT
Reverse Monitor (Grounded in
Reverse)

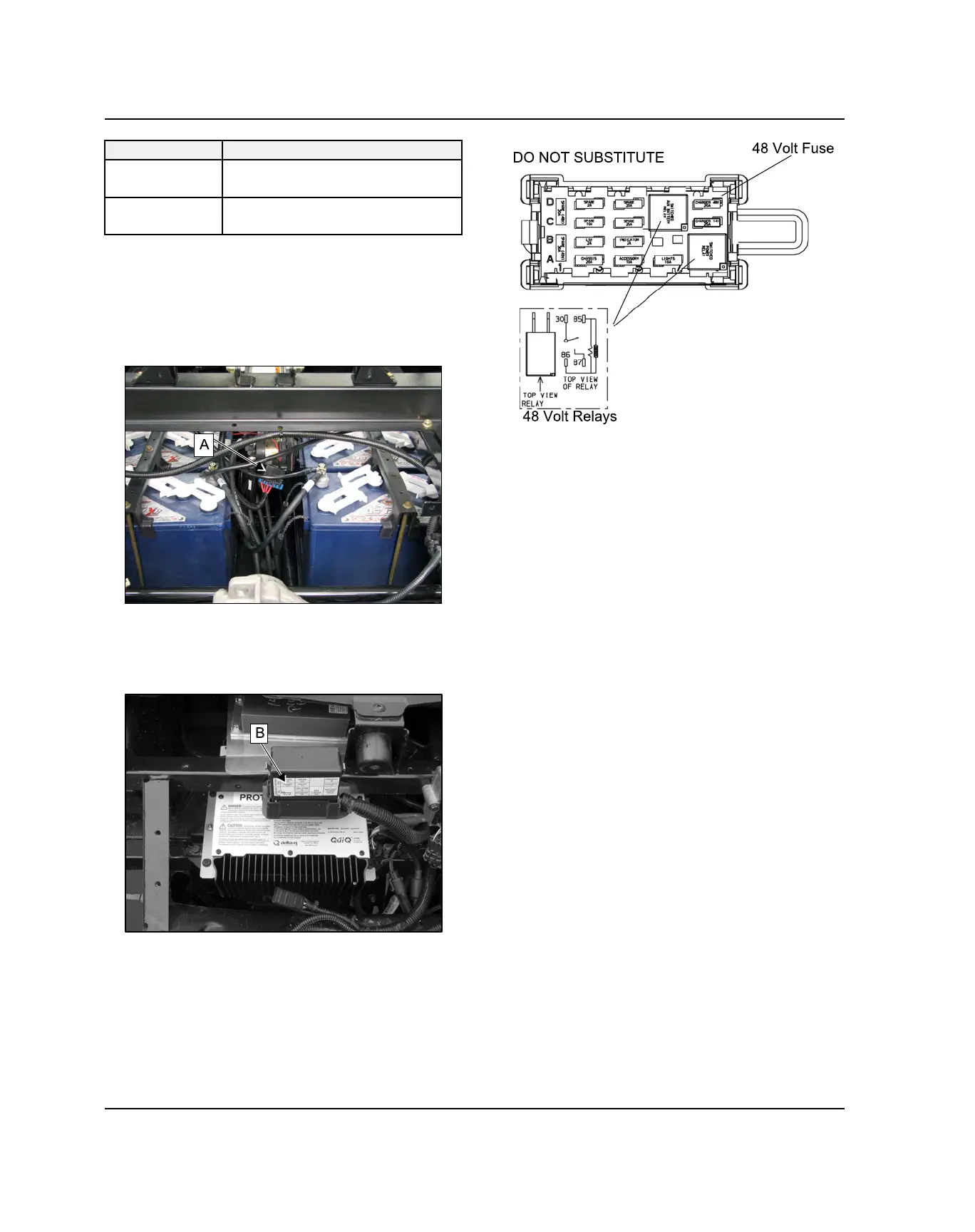

48 VOLT FUSE AND RELAY LOCATION
There are three 48 volt fuses located in fuse block (A).
Two spare 48 volt fuses can be found in fuse block (B),
located under the hood. Open cargo box for access to
fuse block (A).
Two 48 volt relays and a 48 volt fuse (fuse is for
accessory battery charge circuit) are located in the main
fuse box (B) under the hood.
ELECTRICAL
