1.14
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.

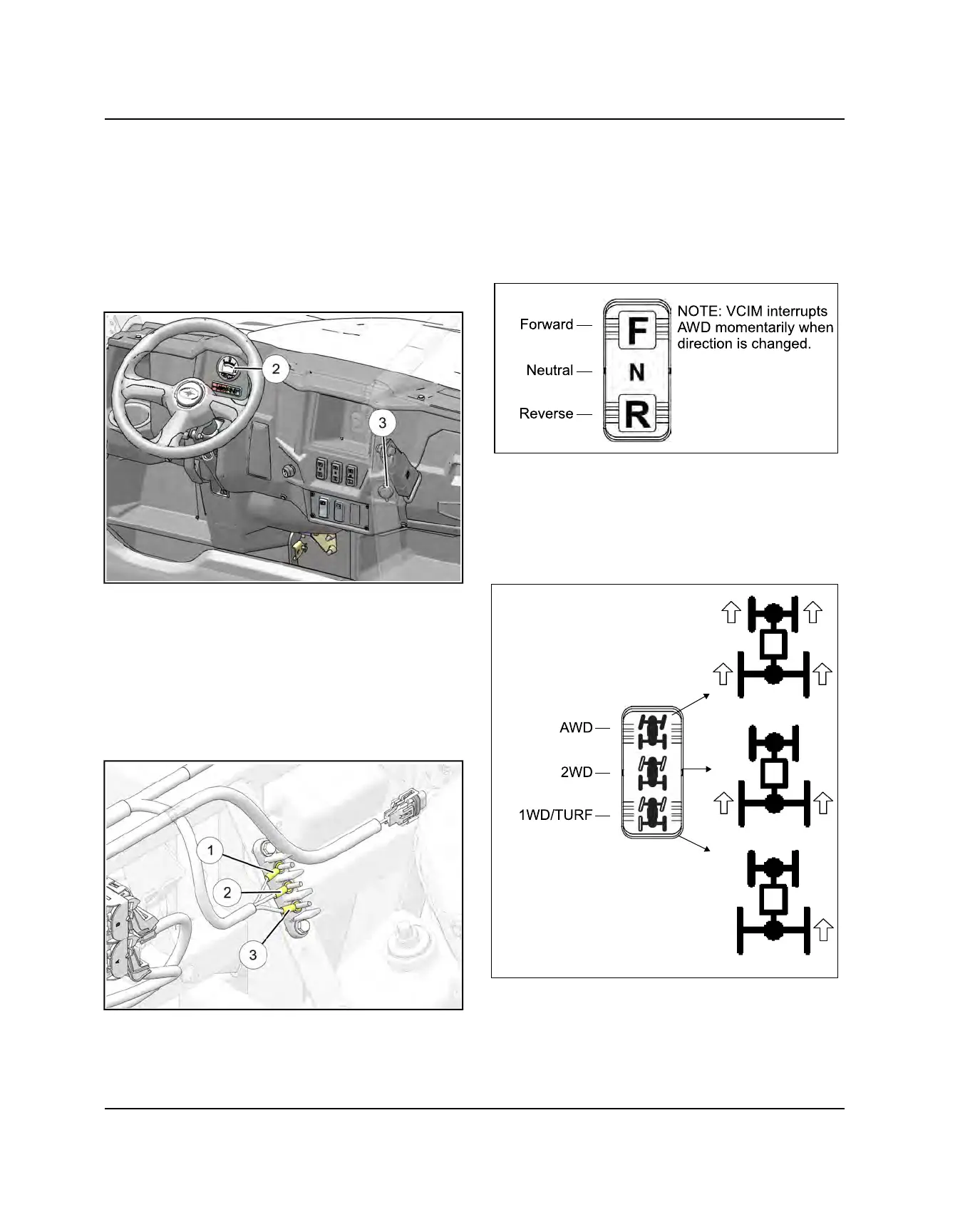

HOUR METER
The hour meter (2) records and displays the hours of
actual vehicle movement since manufacture (see image
below).
12 VOLT AUXILIARY POWER OUTLET
The 12-volt receptacle (3) can be used to power
accessories, but is limited to 10 amps (the terminal board
and 12-volt outlet are fused together at 10 amps).
AUXILIARY 12 VOLT TERMINAL BOARD
The 12-volt terminal board (under hood) contains a
switched 12-volt
q
, a ground terminal
w
and a constant
12-volt
e
that can be used to power auxiliary lights and
accessories. The switched and constant terminals are
fused separately at 10 amps. The 10 amp switched
terminal fuse includes loads connected to both terminal
board and Auxiliary Power Outlet on the dash.
DIRECTION SELECTOR SWITCH
When the direction selector is in the center position, the
vehicle is in neutral. The vehicle will not move if the
accelerator is depressed. Place the switch in neutral
before turning the key on.
Always come to a complete stop before reversing
direction.
ALL WHEEL DRIVE (AWD) SWITCH
The AWD switch has three positions: All Wheel Drive
(AWD), Differential Lock/Two Wheel Drive (2WD) and Off
(1WD/Turf Mode).
AWD MODE - Once enabled, the AWD remains enabled
until the switch is turned off.
GENERAL / BATTERY
