5
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
5.19

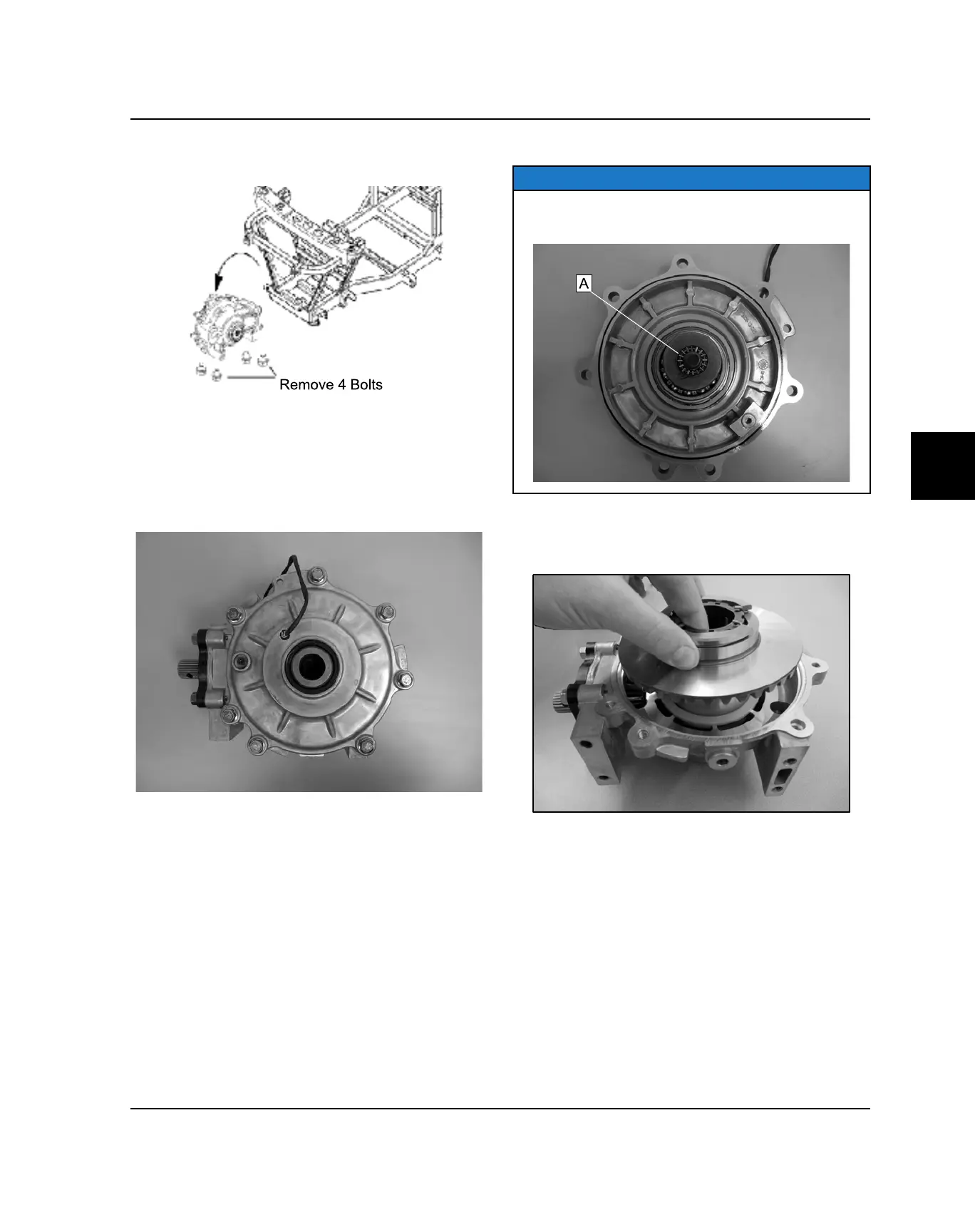

6. Remove bolts securing bottom of gearcase to frame.
7. Remove gearcase from right side of frame.
GEARCASE DISASSEMBLY / INSPECTION
1. Drain and properly dispose of used oil.
2. Remove gearcase cover bolts.
3. Remove gearcase cover / output hub assembly.
NOTE
Be careful not to misplace the thrust bearing (A) located
between the two output hubs.
4. Hold the roller bearing cage in place and carefully
withdraw the ring gear assembly from the gearcase
housing.
FINAL DRIVE
