5. Replace the bearing carrier bushings if worn or
damaged.
ASSEMBLY
1. Thoroughly clean the bearing carrier housing and
prepare the components for assembly.
2. Support the bottom of the bearing carrier housing.

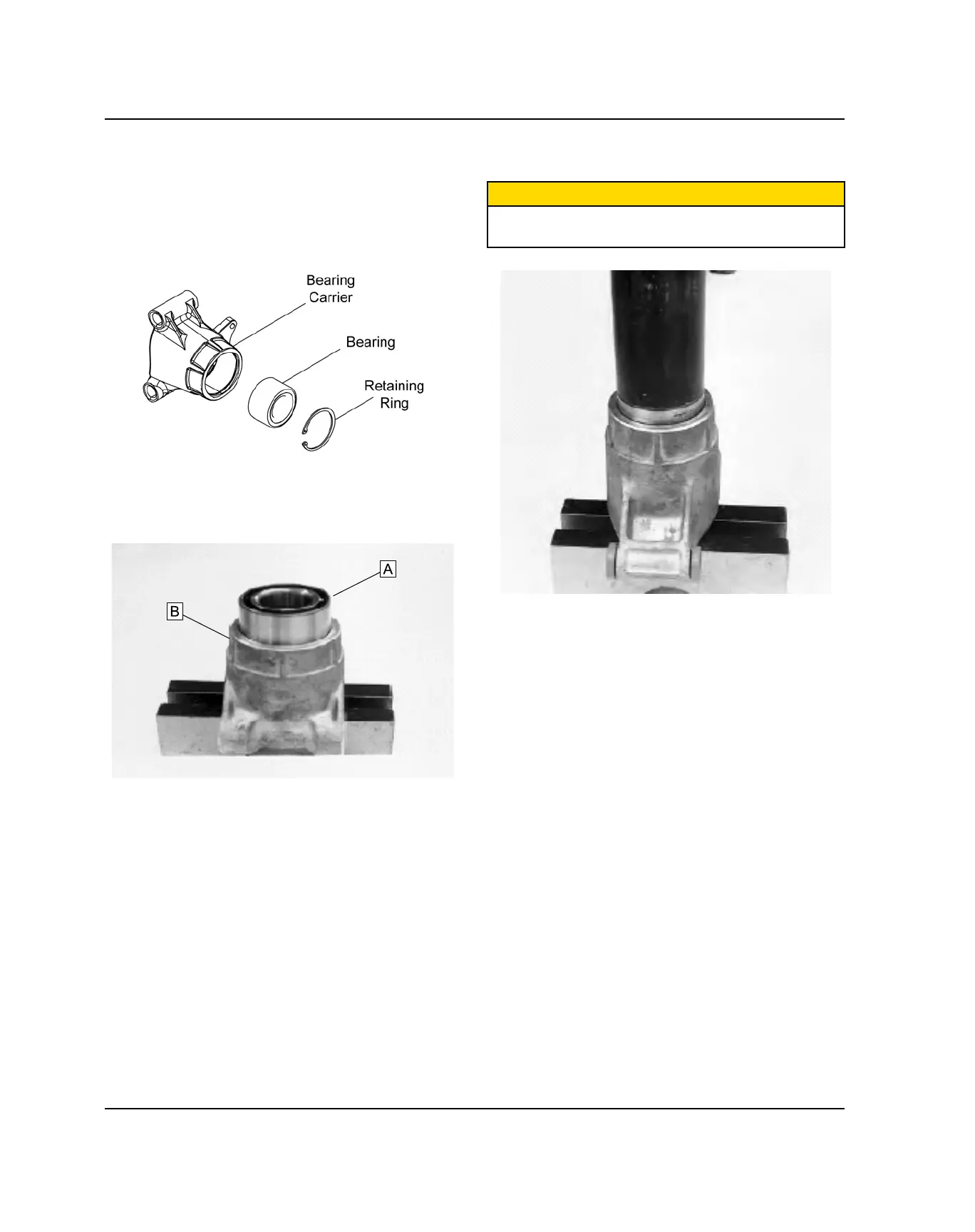

Start the bearing (A) in the bearing carrier housing
(B). Use an arbor press to install the bearing.
3. Press the bearing into place until the outer bearing
race bottoms in housing.
CAUTION
Use an arbor and press only on the outer race, as
bearing damage may occur.
4. Install a new retaining ring into the bearing carrier
groove.
INSTALLATION
1. Place the bearing carrier over the drive shaft.
2. Align the bottom of the bearing carrier with the lower
A-arm. If previously removed, install new lower A-
arm bushings. Install the lower bearing carrier
fastener.
