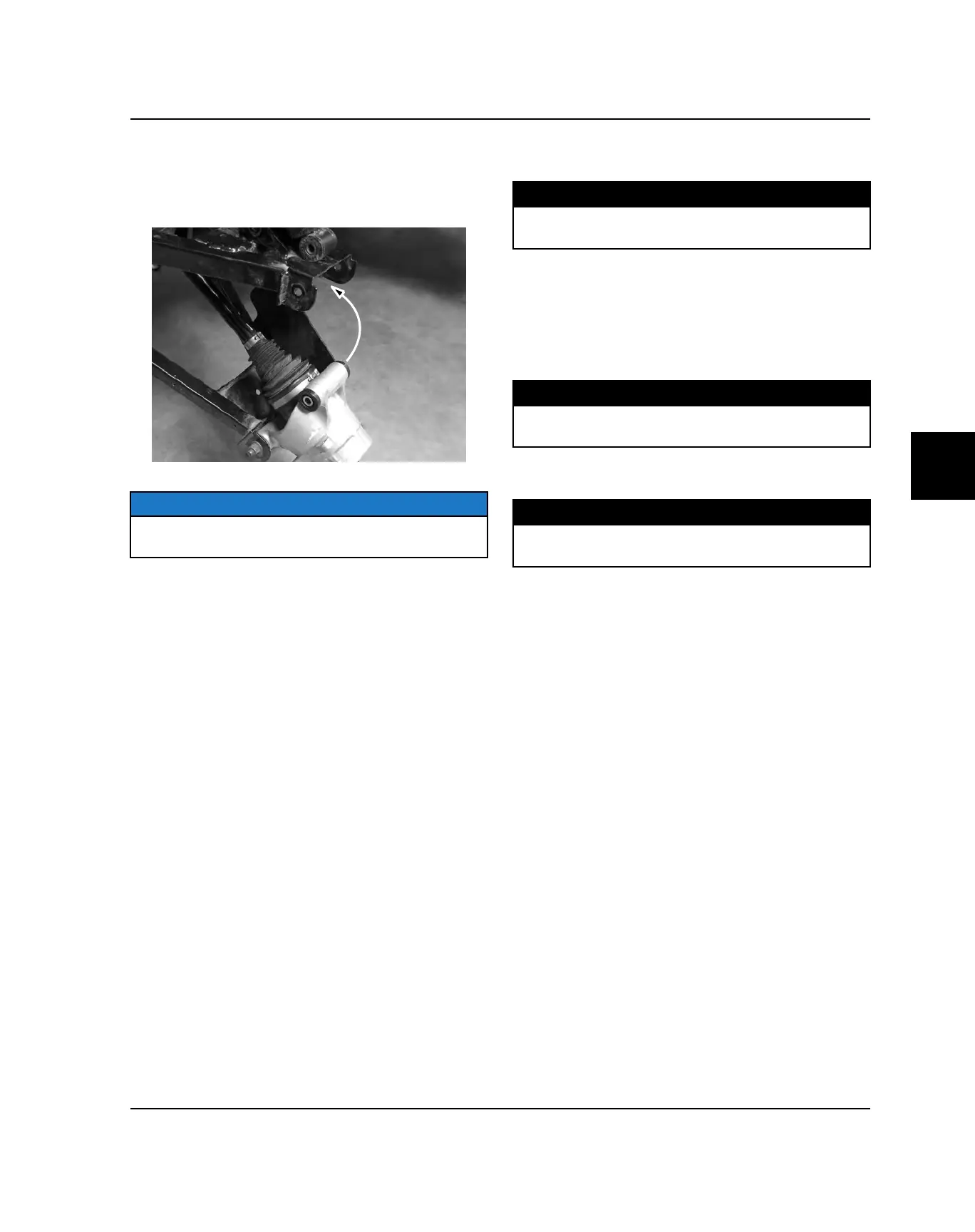

3. With the drive shaft placed in the bearing carrier,
align the top of the bearing carrier with the upper A-
arm. If previously removed, install new upper A-arm
bushings. Install the upper bearing carrier fastener.
NOTE
The lower shock bolt may need to be removed to allow
the upper A-arm to move freely.
4. Torque the upper and lower bearing carrier fasteners
to specification.
TORQUE
Bearing Carrier Fasteners:
30 ft-lb (41 Nm)
5. Install the wheel hub assembly onto the rear drive
shaft.
6. Install the washers (domed side out) and the wheel
hub castle nut.
7. Install the wheel, washers and wheel nuts. Torque
wheel nuts to specification.
TORQUE
Wheel Lug Nuts:
35 ft-lb (47 Nm)
8. Carefully lower the vehicle. Torque the rear hub
castle nut to specification. Install a new cotter key.
TORQUE
Rear Hub Castle Nut:
110 ft-lb (150 Nm)
