5.4
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
PROP SHAFT SERVICE
PROP SHAFT REMOVAL

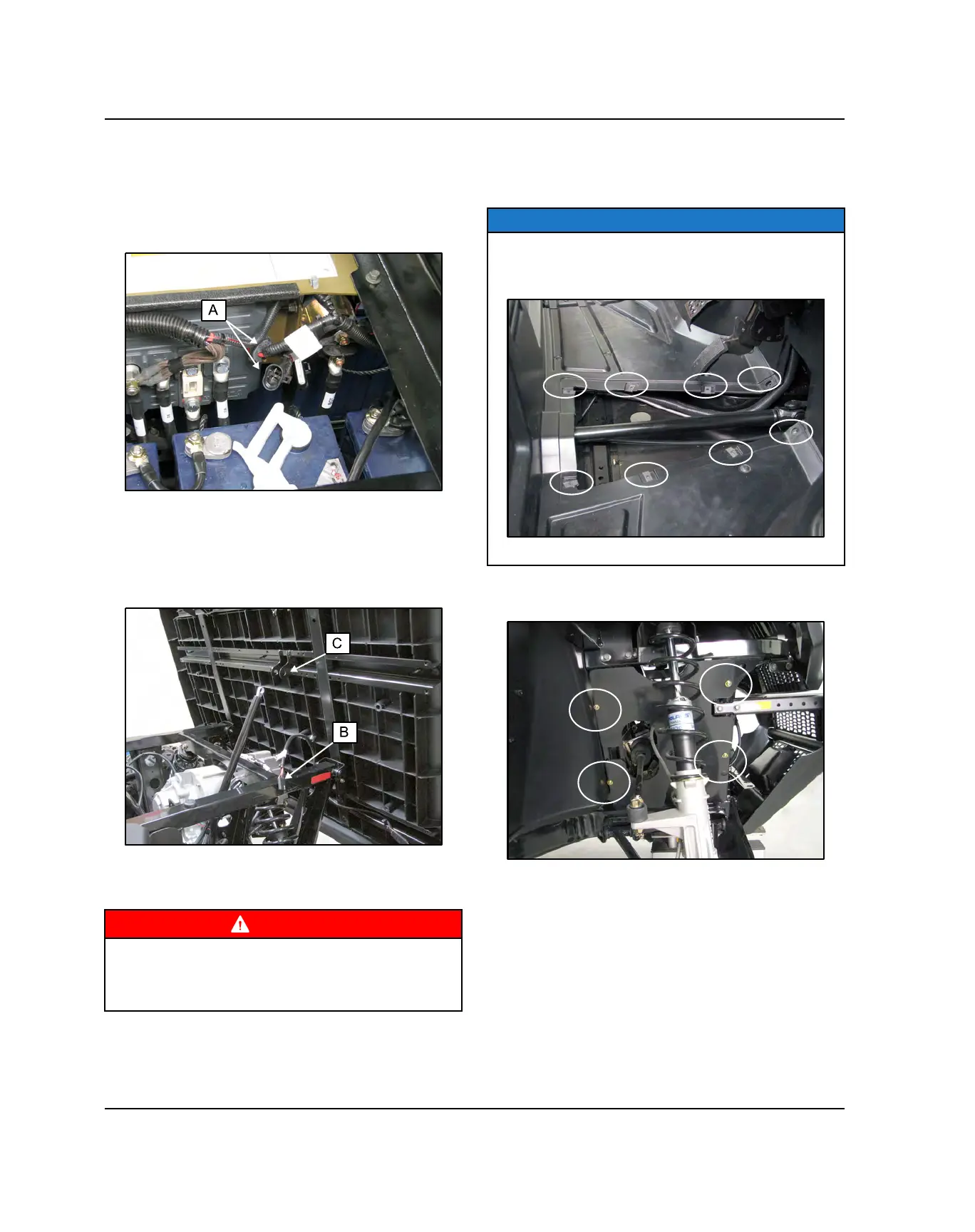

1. Remove seat and disconnect Main Power Connector
(A).
2. Open cargo box and disconnect wire harness (B),
then disconnect strut at (C) and pivot box to the
vertical position.
3. Elevate and safely support vehicle under the frame.
WARNING
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure. Wear eye protection when removing
bearings and seals.
4. Remove prop shaft inspection cover in the center of
the foot well area.
NOTE
Roll pin can also be accessed through the skid plate
hole if a hoist is available.
5. Remove right wheel and inner fender panel.
FINAL DRIVE
