Polaris RANGER EV 2015 - Parking Brake; System View

7
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
7.9

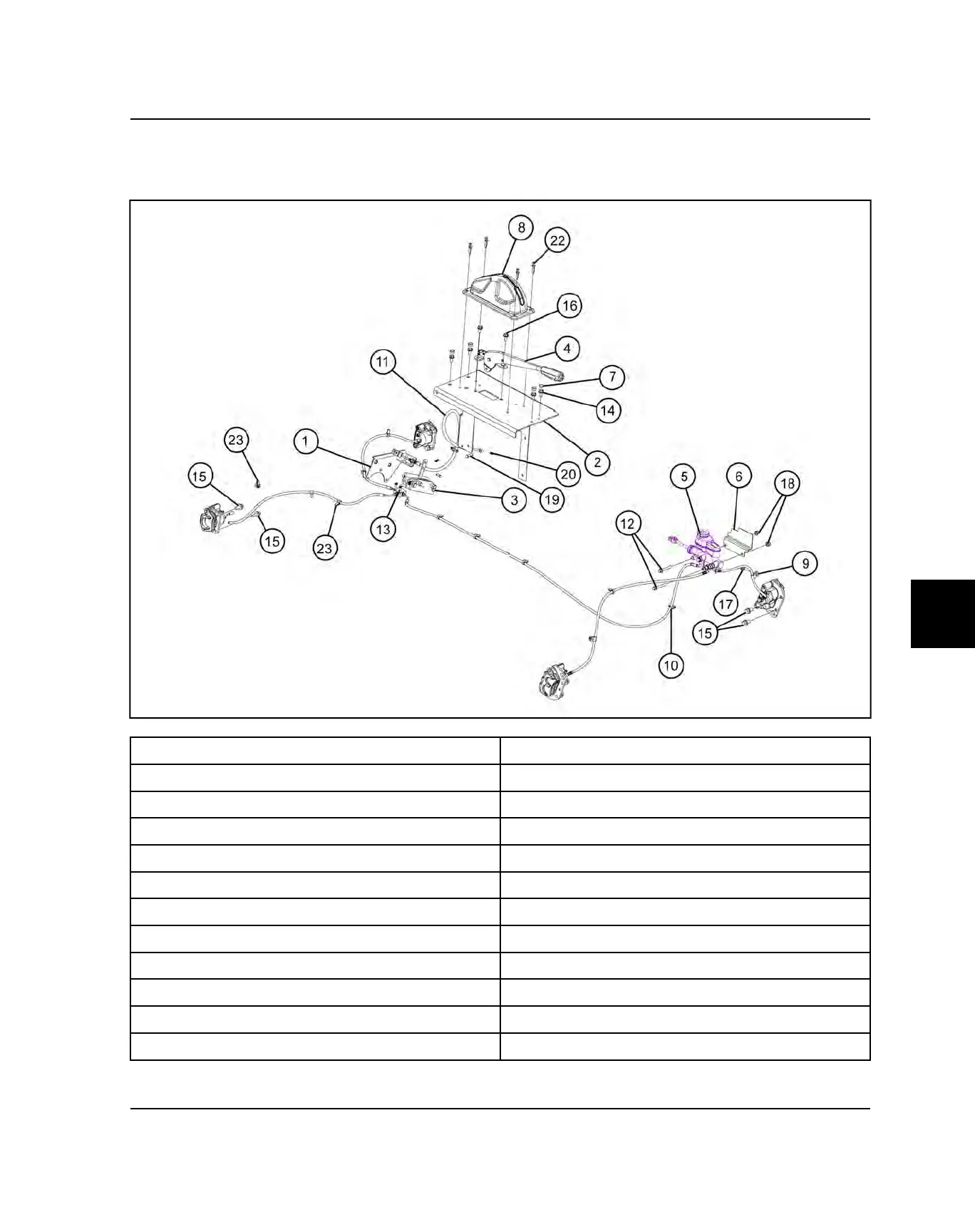

PARKING BRAKE
SYSTEM VIEW
q
Bracket, Parking Brake Caliper
f
Screw - 10-24 x 1 QTY.2) 35 in-lb (4 Nm)
w
Mount, Parking Brake
g
Bolt - M8 x 1.25 x 20 (QTY.2)17 ft-lb (23 Nm)
e
Caliper Assembly, Parking Brake
h
Bolt - M10 x 1.25 x 20 (QTY.8) 28 ft-lb (38 Nm)
r
Lever Assembly, Parking Brake
j
Bolt - M8 x 1.25 x 20 (QTY.4) 17 ft-lb (23 Nm)
t
Brake System, Assembly
k
Nut - 5/16 – 18 (QTY.2)
y
Shield, Master Cylinder
l
Nut - M8 x 1.25 (QTY.2) 15 ft-lb (20 Nm)
u
Screw, Cap
1*
Clevis Pin - 5/16 x 1 (QTY.1)
i
Boot, Park Brake
2)
Clip, Clevis Pin
o
Cable Clamp
2!
Clevis Pin - 1/4 x 3/4 (QTY.1)
a
Routing Clip
2@
Push Rivet (QTY.4)
s
Cable, Parking Brake
2#
Clip, Silencer
d
Screw - M8 x 1.25 x 55 (QTY.2)
BRAKE SYSTEM
