BATTERY MAINTENANCE
TO MAXIMIZE BATTERY SERVICE LIFE
The following are key items to ensure maximum service
life from the batteries.
• Always check and maintain water level monthly. Use
only distilled water. Water level should be kept 1/4” (6
mm) below fill well. Do not overfill the battery.
• Always keep batteries fully charged. For maximum life,
charge your vehicle at every opportunity. Use only the
charger supplied with the vehicle. See freeze point
table below.
• Inspect / tighten battery terminal connections monthly
or whenever batteries are serviced.
• Tighten terminals to specified torque.
TORQUE
Battery Cable Terminals: 8.0 ft-lbs (11.0 Nm)Battery
Contactor Terminals: 8.0 ft-lbs (11.0 Nm)
• Always keep battery terminals clean and free of
corrosion at all times.
• Avoid discharging batteries more than 80%. See ,
page 1.12and Battery Charging, page 1.21 for more
details.
• Make sure new batteries are fully charged before
using. New deep cycle batteries need to be cycled
several times before reaching full capacity as shown in
the Battery Conditioning chart below.
• Make sure vent caps are installed properly during
vehicle operation and battery charging.
• Avoid charging at high temperatures. See Battery
Charging, page 1.21.
• Use only genuine Polaris accessories and follow
instructions provided.
BATTERY CONDITIONING
Number of
Charge Cycles
NEW 15 30 45
Percent of Full
Capacity
80% 90% 95% 100%
BATTERY FREEZE POINTS
Percent
Charged
100% 50% 0%
Freeze Point
(Approximate)
-60° F
(-51° C)
0° F
(-18° C)
+25° F
(-4° C)
BATTERY ACCESS
1. Lift front edge of seat upward to release pins.
2. Slide seat forward to release hinge bracket tabs.
3. Remove storage trays by pulling upward at the rear
edges.

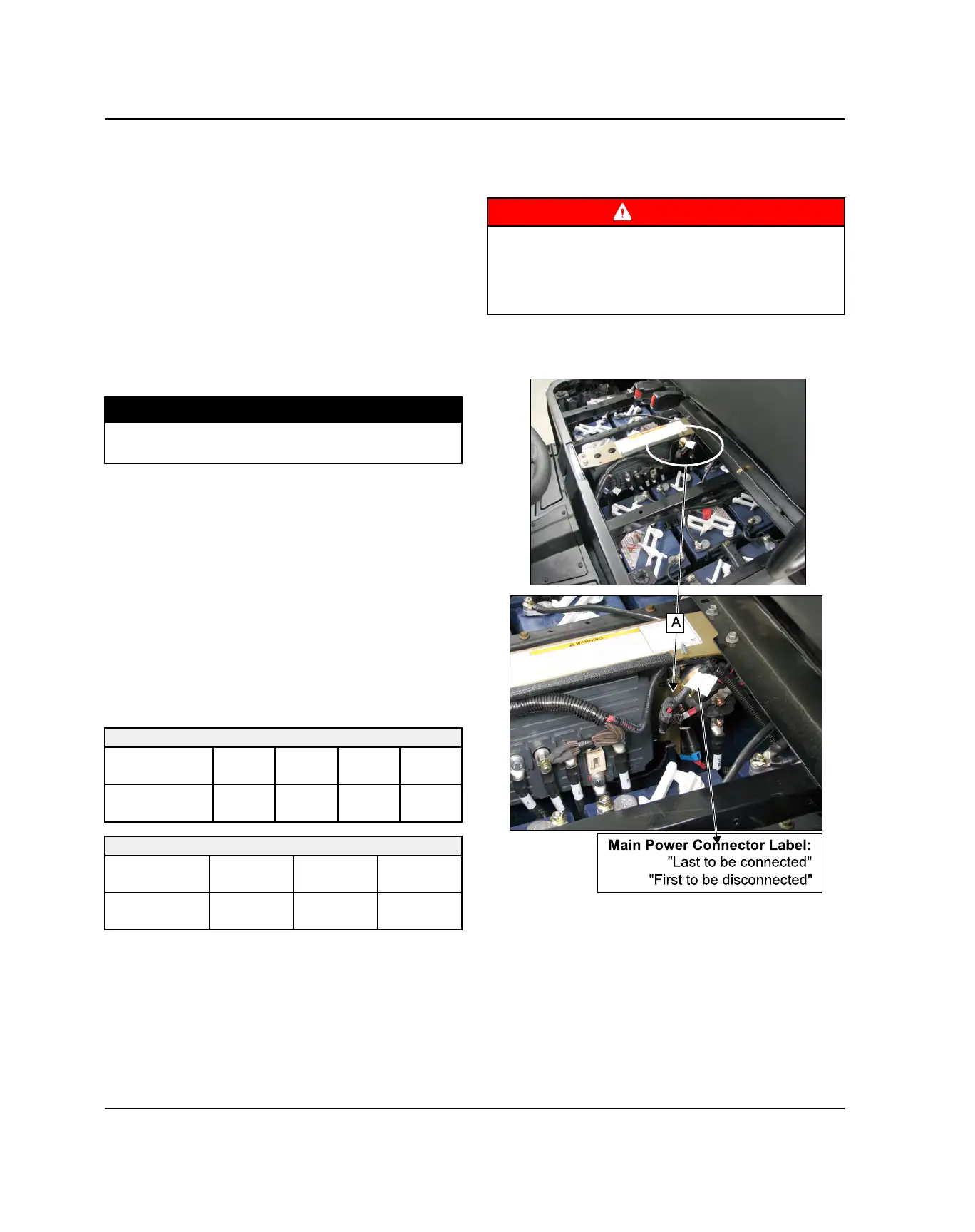

MAIN POWER CONNECTOR
WARNING
Use insulated tools or insulate any tools used within the
battery area to prevent sparks or battery explosion
caused by shorting the battery terminals or wiring.
Remove the batteries or cover the exposed terminals
with an insulating material.
Always disconnect the Main Power Connector (A) before
servicing or unplugging any electrical components.
BATTERY TERMINAL FASTENER TORQUE
Battery terminal fastener torque is one of the most
important maintenance items on the RANGER EV.
Always use a torque wrench when tightening battery
terminal fasteners.
Loose terminals reduce battery performance and
increase the amount of heat present at the battery
