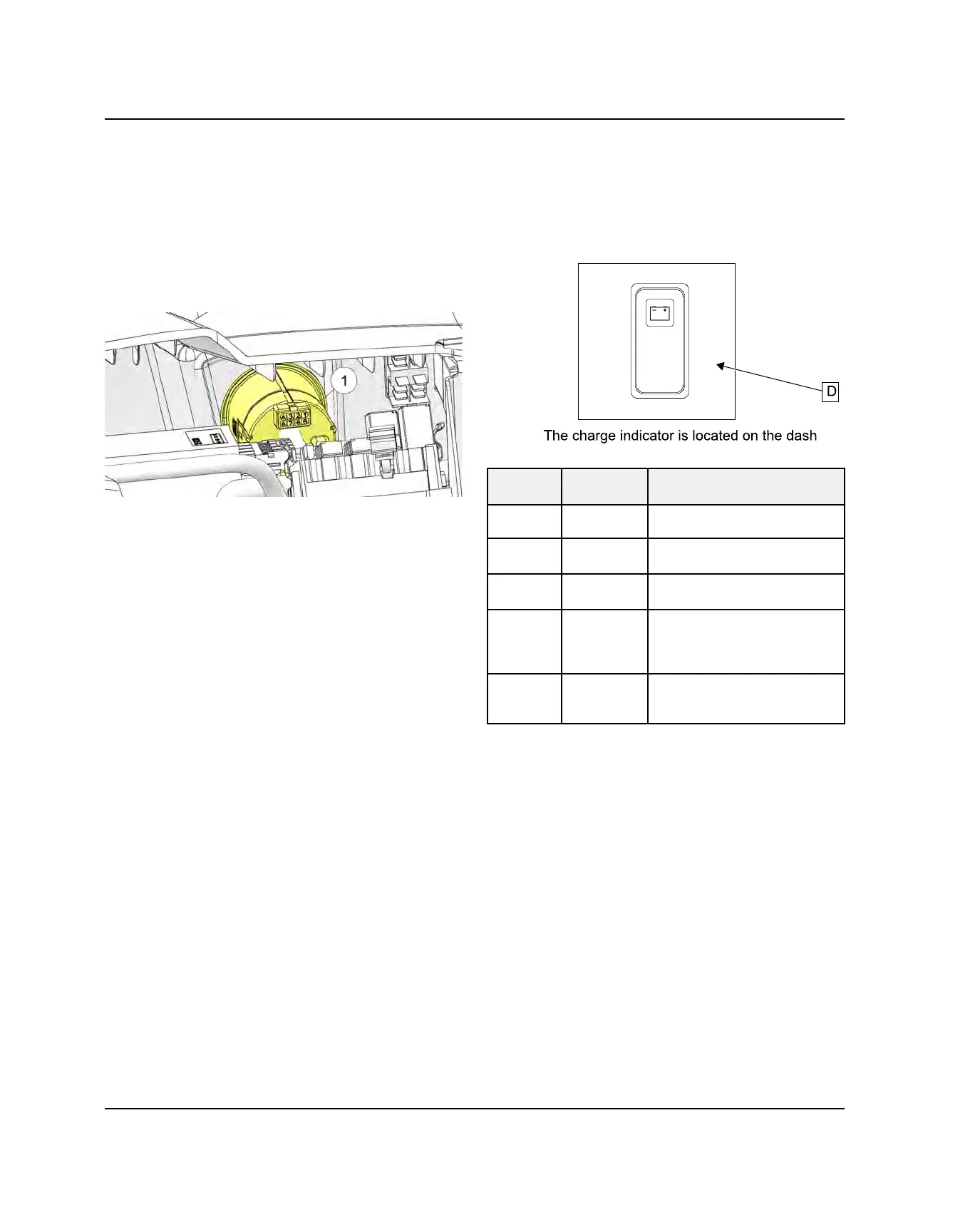

Gauge Removal:
1. Disconnect the Main Power Connector under the
seat (See Main Power Connector, page 1.20).
2. Reach under the dash panel and press on the top
and bottom of the gauge retainer while pushing on
the back side of the gauge. The pressure applied will
release the tabs on the right and left of the gauge
and allow the gauge (1) to be removed from the
display side of the dash panel.
3. Remove hour meter wires and fuel gauge connector
from the back side of the gauge.
4. Reverse removal procedures to reinstall the gauge.
CHARGE STATUS INDICATOR
When charging the batteries, the charge status indicator
LED light (D) flashes and changes color to indicate the
status of the charge cycle. See Table 2. Current to the
LED (and therefore the color of the LED) is controlled by
the VCIM.
COLOR
INDICA-
TION CODE DEFINITION
Green Solid
Charge is complete, charger is in
maintenance mode.
Green
Slow
Flash
More than 80% of charge is
completed.
Green
Fast
Flash
Less than 80% of charge is
completed.
Amber
Flashing
Charge rate is reduced, low AC
voltage or high internal charger
temperature exists; open hood to
improve air flow.
Red
Flashing
Charger error exists; reset
charger power and refer to
Battery section in this chapter.
