2.10
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
TRANSAXLE (REAR GEARCASE)
LUBRICANT
Level Inspection
1. Position vehicle on a level surface.
2. Inspect vent hose routing and check it for kinks or
obstructions. The end of the hose should be inside
the frame rail and point downward.

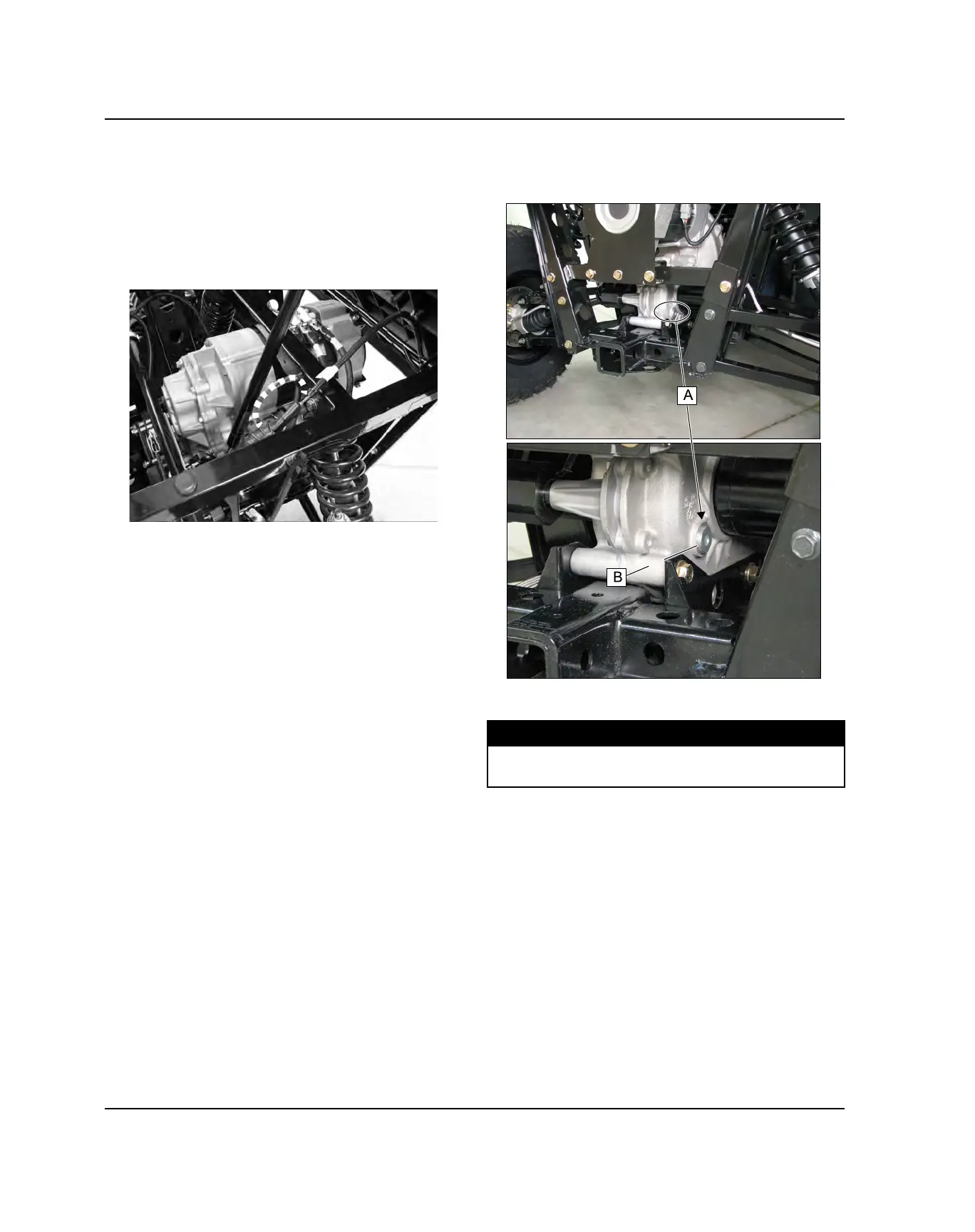

3. Remove fill plug (A) and check lubricant level.
4. If lubricant level is not even with the bottom of fill hole
threads (B), add ATV Angle Drive Fluid as needed.
Do not overfill.
5. Reinstall fill plug and torque to specification.
TORQUE
Fill Plug / Drain Plug:
14 ft-lb (19 Nm)
Transaxle Lubricant Change
1. Place a drain pan under transaxle drain plug area.
2. Place towels beneath fill plug and remove fill plug.
MAINTENANCE
