48 VDC - 14 VDC CONVERTER
CONVERTER INFORMATION

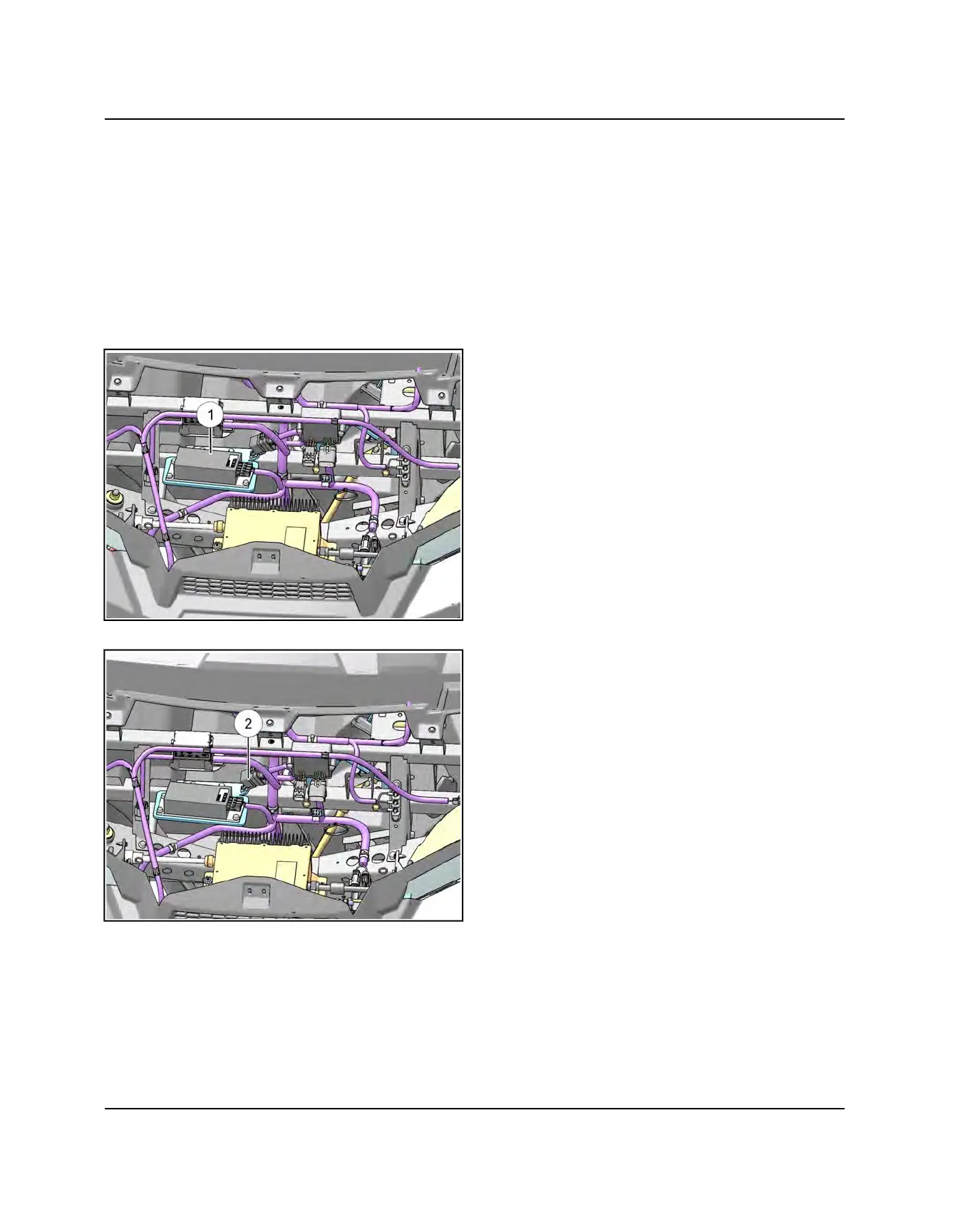

• The 48V - 14.0V DC-DC Converter (1) is located under
the hood, above the battery charger on the RH side of
the vehicle.
• The converter receives 48v from the DC-DC Converter
Relay (2) through a 30A fuse located in the 48v fuse
center. The converter’s ground is located on the
controller #2 ground post. The converter distributes
14.0v to terminal A2 (Chassis fuse, 20A) in the fuse/
relay box.
