2.14
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.

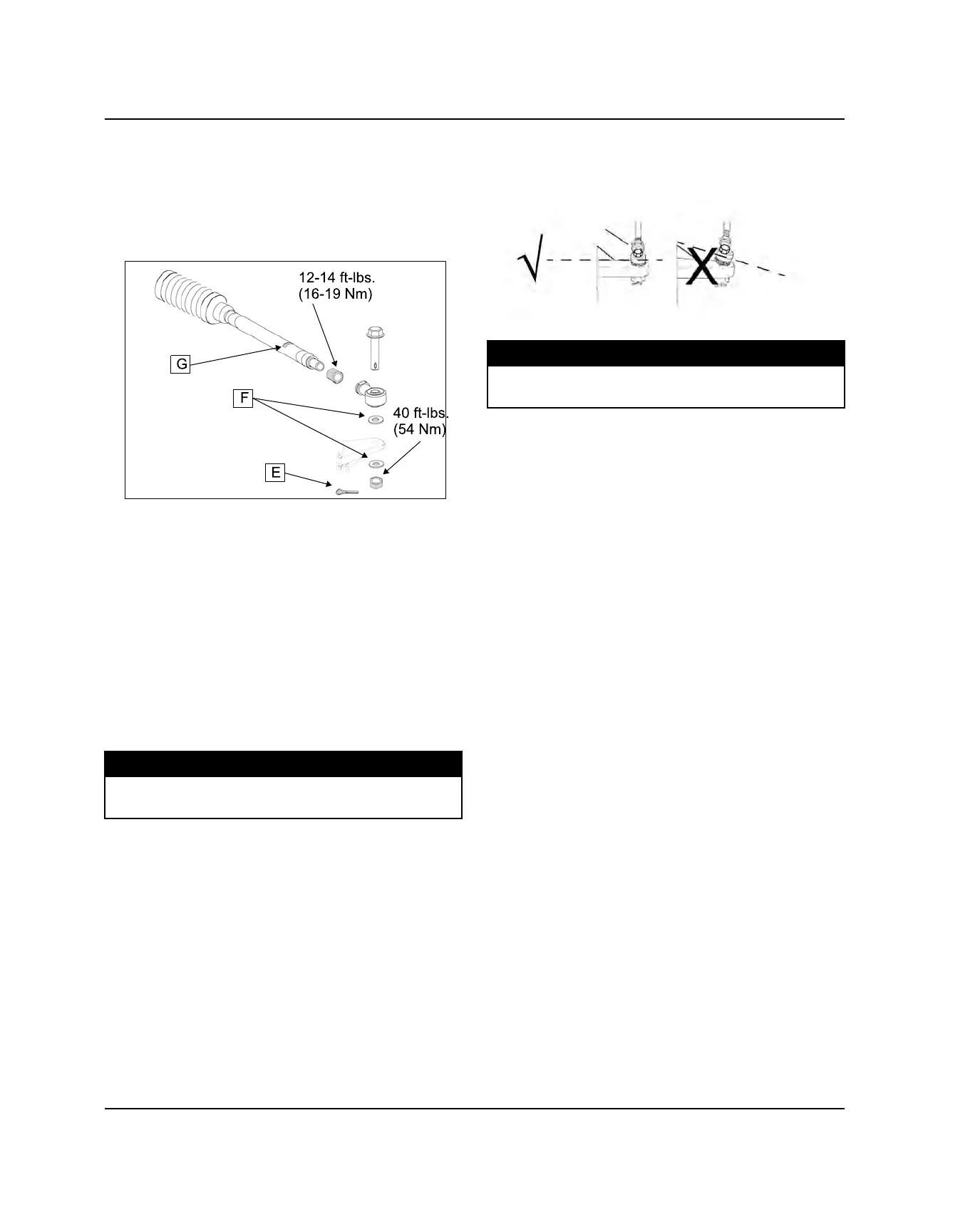

5. Remove tie rod end nut and bolt with washers (F).
6. Hold tie rod at (G) and rotate rod end 1/2 turn at a
time to shorten or lengthen the overall tie rod length.
Shorten the tie rod to increase the amount of toe-out.
Lengthen the rod to decrease the amount of toe-out).
7. Temporarily install the tie rod on strut with washers,
bolt and nut. Tighten nut by hand so rod end is
securely supported and parallel with the mounting
surface on strut.
8. Verify steering wheel is centered and re-check
alignment.
9. Repeat above steps as required until proper
alignment is achieved, then assemble the tie rod to
strut with washers, bolt and nut.
10. Torque nut to specification and install a NEW cotter
pin.
TORQUE
Tie Rod End Nut Torque:
40 ft-lb (54 Nm)
11. HOLD tie rod end parallel with mounting surface.
Torque jam nut to specification. Check to be sure rod
end rotates freely.
TORQUE
Tie Rod Jam Nut:
14 ft-lb (19 Nm)
MAINTENANCE
