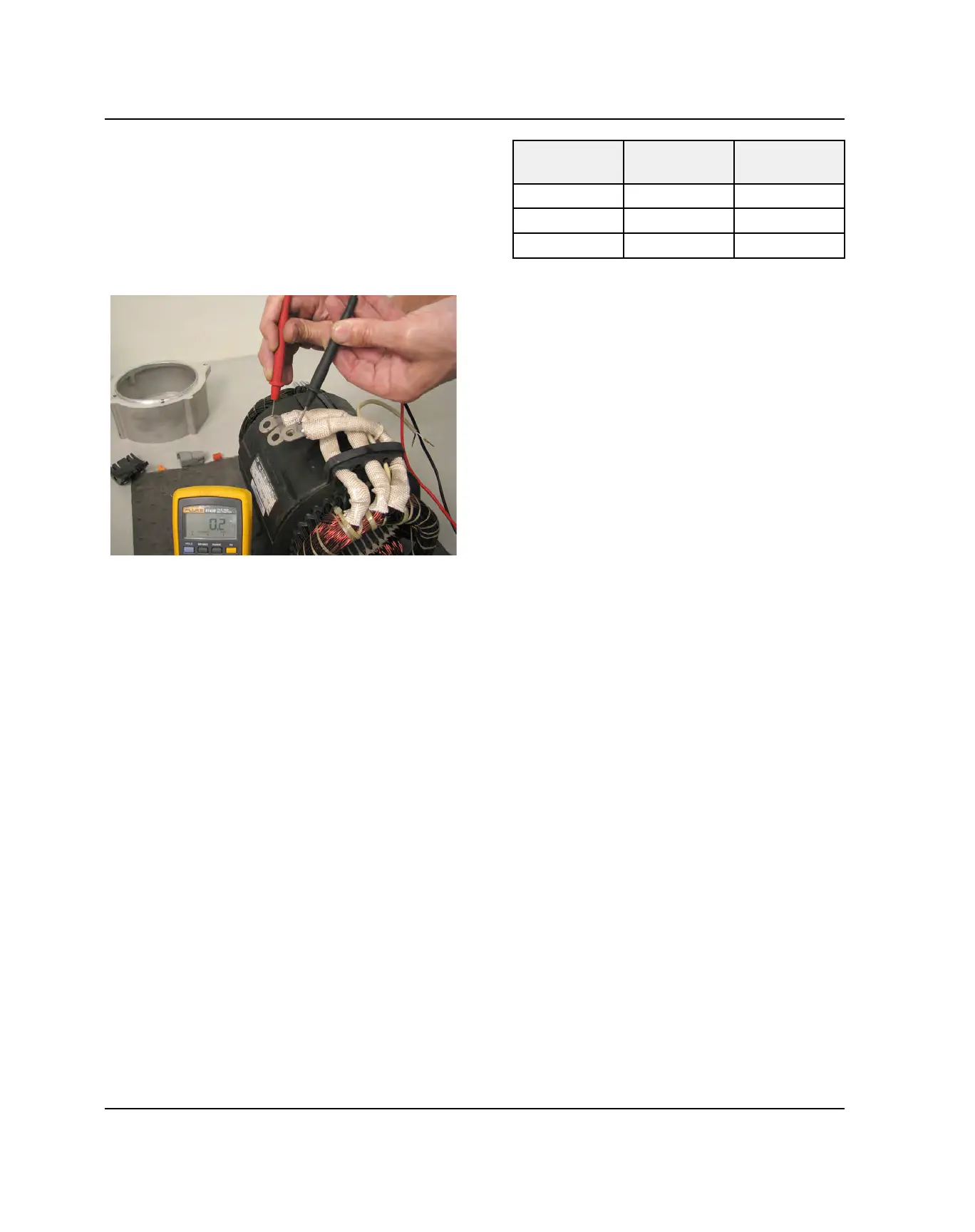

4. Connect one lead of an Ohmmeter to one stator lead
and the other Ohmmeter lead to each of the other
two. There should be good continuity (less than .5
Ohms) between each combination of two stator
windings. NOTE: If reading is greater than .5 Ohms,
be sure to subtract meter lead resistance from the
measured resistance (connect leads together and
record resistance displayed on meter. Subtract this
value from stator winding resistance measurement.
OHMMETER
LEAD 1
OHMMETER
LEAD 2
RESISTANCE
(+/- 20%)
Stator Phase 1 Stator Phase 2 0.1 - 0.2 Ω
Stator Phase 1 Stator Phase 3 0.1 - 0.2 Ω
Stator Phase 2 Stator Phase 3 0.1 - 0.2 Ω
DRIVE MOTOR
