Commissioning – Main Menu Functions 3-45
FlexFit – Linkageless Control – Revision 1.0
PREFERRED
UTILITIES MFG CORPORATION
CC
OO
MM
MM
II
SS
SS
II
OO
NN
II
NN
GG

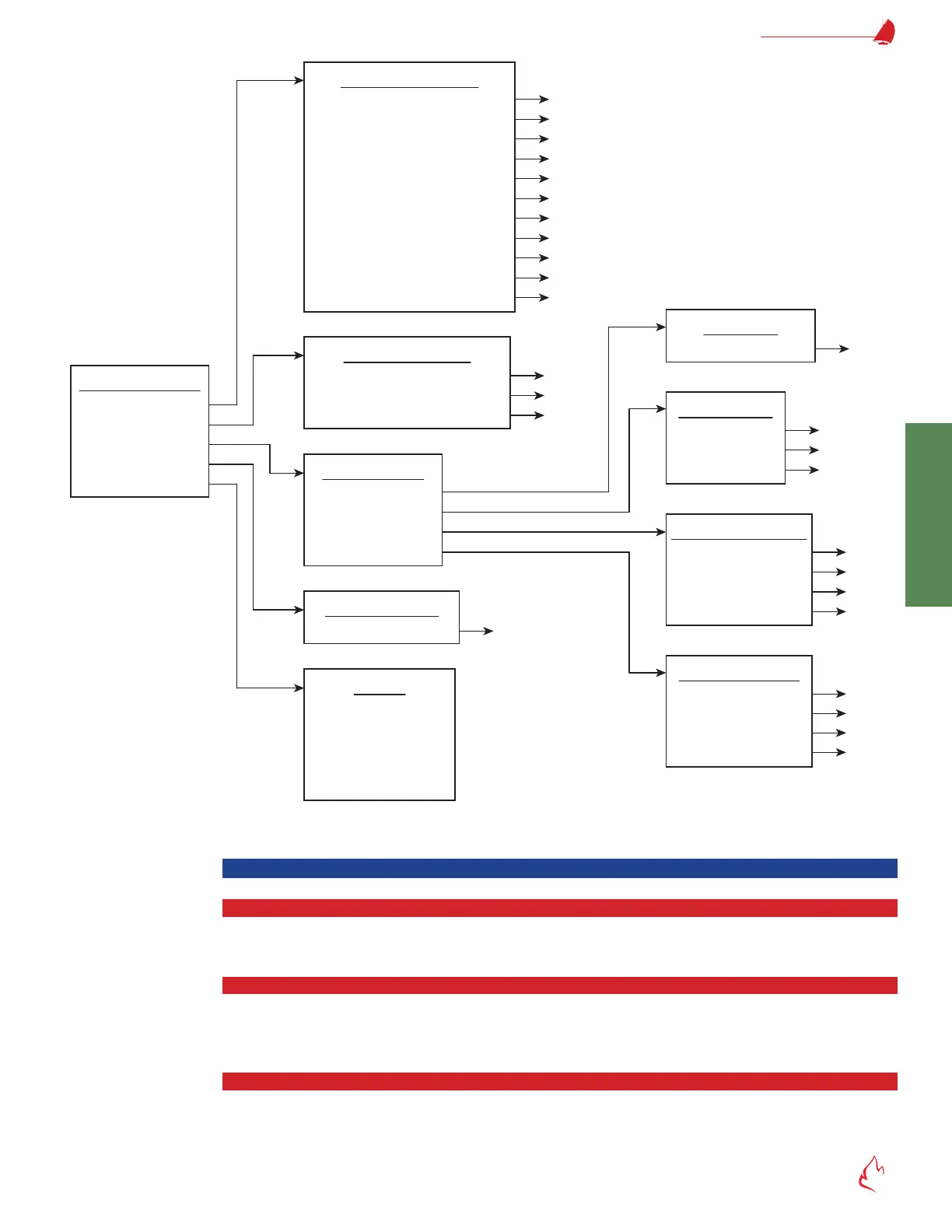

Figure 3 – 4
Advanced Settings
Flame Safety Options
Firing Rate Settings
Flex Sequences
FGR Servo Check
Modbus Setup
Flex Enable
Flex Sequences Option
Flex PTFI MTFI
PTFI Ign Xfmr Sec
Fuel1 MTFI
Fuel2 MTFI
Flex Direct Spark DSI
Fuel1 DSI Option
Fuel1 DSI MTFI Sec
Fuel2 DSI Option
Fuel2 DSI MTFI Sec
Flex Gas Leak Test
Fuel1 Leak Test Option
Fuel1 Leak Test Sec
Fuel2 Leak Test Option
Fuel2 Leak Test Sec
Flame Safety Options
M78 PFEP, Pilot Proving Seconds
Post Purge Sec
FD Fan Start Delay
Alarm SP, Flue Temp
Lockout SP, Flue Temp
Assured Low Fire Cutoff
HOLD Alarm Delay
HOLD Lockout Delay
Power Fail Response
Fuel 1 Proof of Closure Installed
Fuel 2 Proof of Closure Installed
Flex Sequences
Flex Enable
Flex PTFI MTFI
Flex Direct Spark DSI
Flex Gas Leak Test
Firing Rate Settings
Operator High Fire Limiter Option
High Fire Limiter, 0-100%
+/- Avoid Gap, Firing Rate
FGR Servo Check
FGR Servo Check Mode
Modbus
Modbus Mode
Modbus Address
Modbus Baudrate
Modbus Parity
Modbus Comm Timeout
P1.2.1
P1.2.2
P1.2.3
P1.2.4
P1.2.5
P1.2.6
P1.2.7
P1.2.8
P1.2.9
P1.2.10
P1.2.11
P1.3.1
P1.3.2
P1.3.3
P1.3.4
P1.3.5
P1.3.6
P1.3.7
P1.3.8
P1.3.9
P2.5.6
P3.7.1
P3.7.2
P3.7.3
Menu Tree 4
Main Menu Functions
Entering and Navigating the Main Menu
Press the UP and DOWN buttons simultaneously to enter the main menu. ENTER or NEXT will navigate deeper into the menu
structure; ESC or BACK will navigate higher out of the menu structure.
Lockout Data
Detailed information about the last 10 lockouts are stored in the retentive memory. Time, date, and 77 data points with each
lockout provide a snapshot of the boiler/burner state at the time of the lockout. This data is preserved during a power cycle of the
combustion controller (CC). "Table 5 – 1 Lockout Messages" on page 5-86, lists the lockout message data.
Passwords
Navigate to Main Menu > Password to enter a password and see the current password level, change a password, or log out.
