QD1 Quick Disconnect Cables
This section applies to QD1 quick disconnect cables. If not using the QD1 cables, refer to "Servo Wiring" on page 2-24.
QD1 cables are ITC-ER (Exposed Run) and do not need to be run in conduit if the following are true:
• The cable is protected from physical damage using mechanical protection such as struts, angles, channels, etc.
• The cable must be supported and be secured at intervals not exceeding 6 ft.
• The cable must not contact, or be secured to, surfaces exceeding 185 F (85 C)
Connectors are NEMA 4 rated when hand-tight. Do not over tighten. For long runs, multiple cables can be connected together.
Maximum combined cable length is 250 ft. Max quick disconnect junction box (QD1-JB) servo stub length is 20 ft.
Connections to a quick disconnect junction box (QD1-JB) must start at “A” and not skip outputs. The output following the last
servo can be connected to the “IN” of another QD1-JB, or to a servo Daisy Chain. Servo addresses must follow the Daisy Chain (or
QD1-JB) sequence, and not skip any values.
Begin by wiring the QD1-Cable-F-xx cable to the FlexFit-CC.

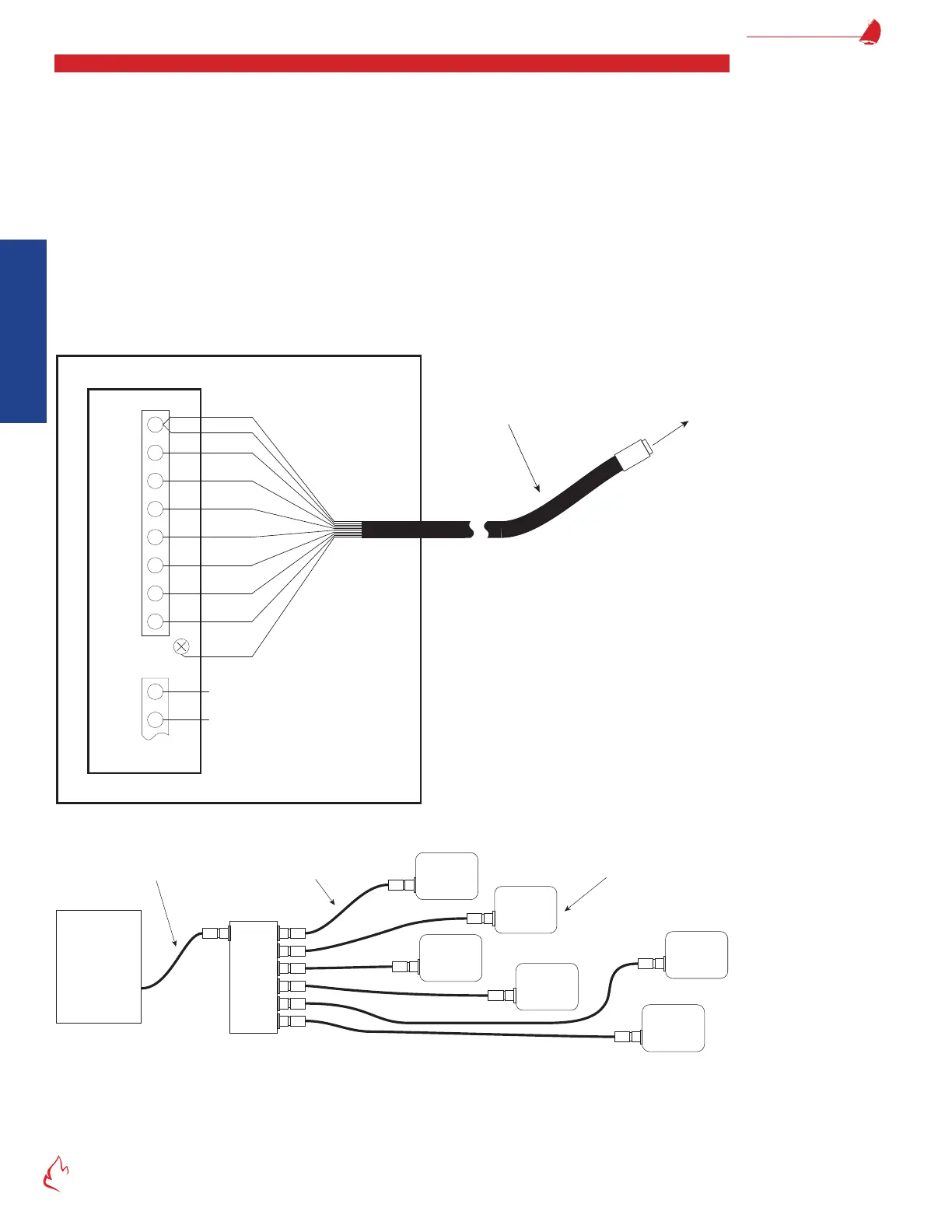

Figure 2 – 12 QD1
OUT
24V+
24V-
Comm+
Comm-
Shield
Servo N
Servo H
120V H
120V N
GROUND
120 Vac
220 VA
60 Hz
H
N
Load includes
O
2
Sensor,
up to 7 servos
79
80
Wht/Blk
Blk/Wht
FF-CC
Wht/Grn
Grn/Wht
Red/Wht
Wht/Red
Gray
Wht/Org
Org/Wht
Grn/Yel
QD1-Cable-F-xx
Burner Control Cabinet
F
To rst servo or
junction box
to FlexFit Wiring
Figure 2 – 13 QD1
F F F F FF
M
IN
A B C D E F
F
Burner
Control
Panel
F
M
Address: 5
F
M
Address: 4
F
M
Address: 3
F
M
Address: 2
F
M
Address: 1
F
M
Address: 0
QD1-Cable-F-xx
QD1-Cable-MF-xx
BMU-SM-tt-QD1M servos
(BMU-SM-tt-QD1MF servos can also be used)
Quick Disconnect
Junction Box (QD1-JB)
MM
MMM
M
Junction Box Connections (Example)
