MAX™ Operator Manual
©
Original Printed In English
AIR SUPPLY
The Sharp MAX™ has a filter/regulator equipped with
a male end 1/4” nominal flow NPT air quick disconnect
plug (Figure 2-1A). The machine requires 100 PSI
(regulated to 80 PSI) of non-lubricated clean dry air at
5 SCFM. Connect the air supply line to the machine
using a MIL-C-4109E or equivalent disconnect cou-
pling.
NOTE: Do not use a lubricator or lubricated air on
the machine. Damage to valves and cylinders will
occur.
1. Connect air hose to regulator.
2. Lift the cap on regulator
3. Adjust to 80 PSI.
4. Snap cap down on regulator.
SECTION 2 - SETUP & ADJUST-
MACHINE PLACEMENT
2-2

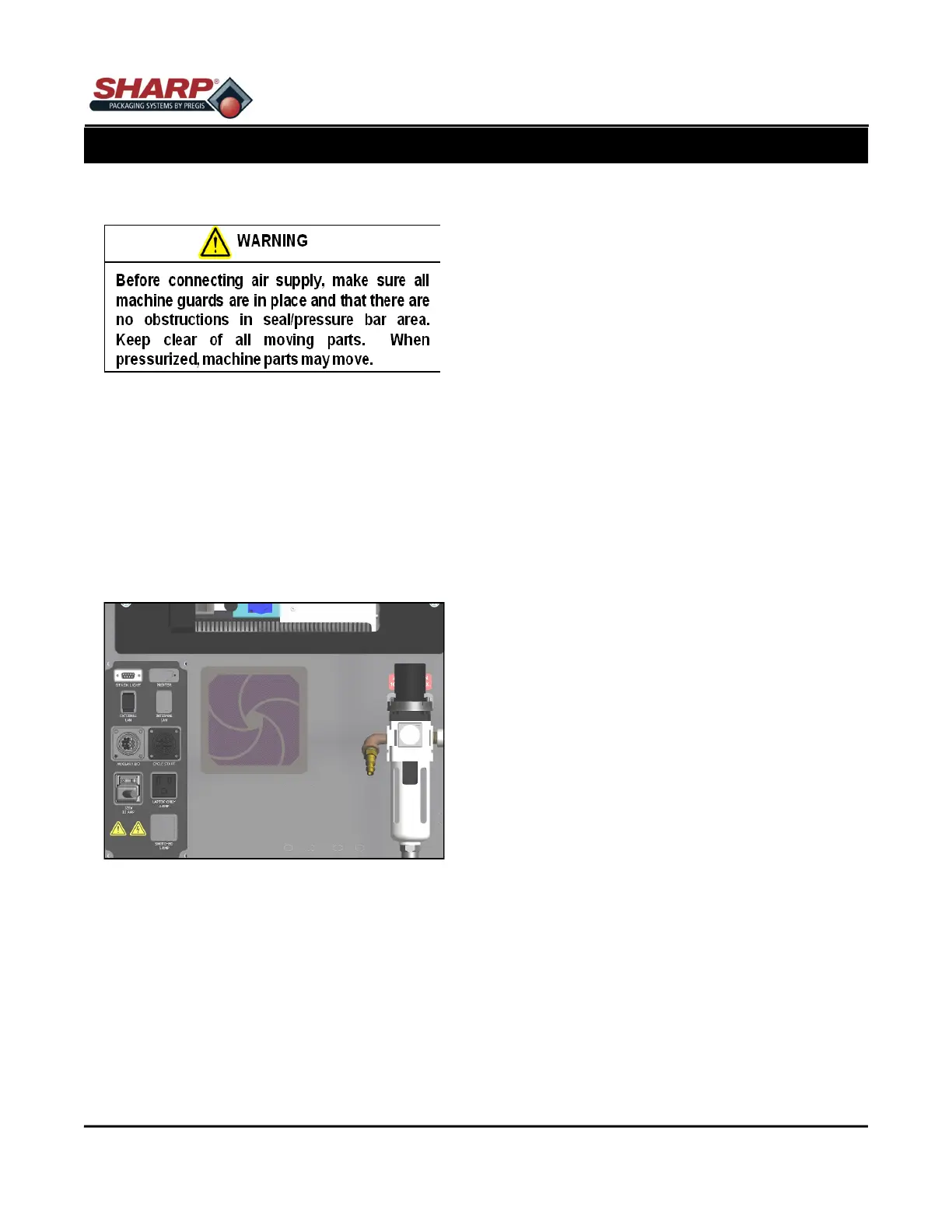

Figure 2-2A. Air Connections
