1. Remove the bag roll shaft from the unit.
2. Place the film roll onto the shaft with a core chuck
on each side of the roll. Figure 2-3B.
3. Align the dowel pins with the holes in the core hub
and slide core chucks tight against hub.
4. Locate the roll of bags in the center of the roll
shaft and tighten knobs securely.
5. Place the roll shaft on the mounting upright with
the bag opening facing towards the rear . Place
the roll shaft into the mounting upright on the side
of the brake strap (with the brake spring connect-
ed), and then place the assembly into the other
mounting upright. Figure 2-3B.
6. Manually thread the film through the series of roll-
ers. A Web Threading decal showing the film
thread path through the machine is located on the
side of the Sharp MAX™. Figure 2-3A.
7. Place the film at the back of the drive rollers. Bag
opening should be on top. Figure 2-3C.
8. Jog the film forward using the Jog Pushbutton
(Figure 2-3A) until a perforation is located be-
tween the electric eye and pressure bar.
9. Test the cycle by pressing the foot switch.
10. If necessary, adjust the Bag Length or Seal Dwell
as described in Bagger Settings Screen. See
page 4-2.
SECTION 2 - SETUP & ADJUSTMENTS
LOADING BAG FILM - STANDARD UNWIND
2-3

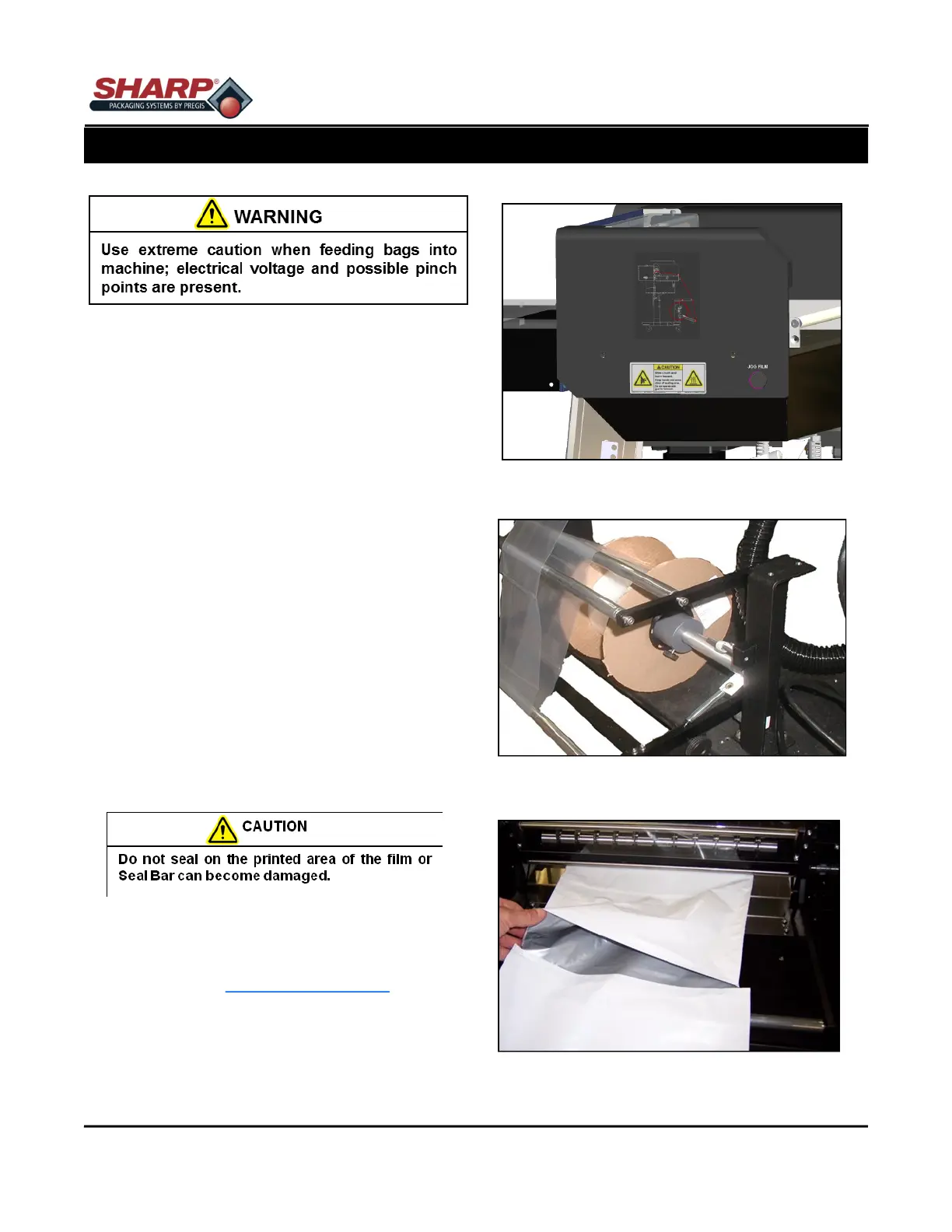

Figure 2-3A. Web Decal & Jog Button.
Figure 2-3B. Core Chuck & Unwind Shaft.
Figure 2-3C. Bag Opening
