MAX™ Operator Manual
©
Original Printed In English
SECTION 4 - HMI SCREENS
DASHBOARD SETUP SCREEN

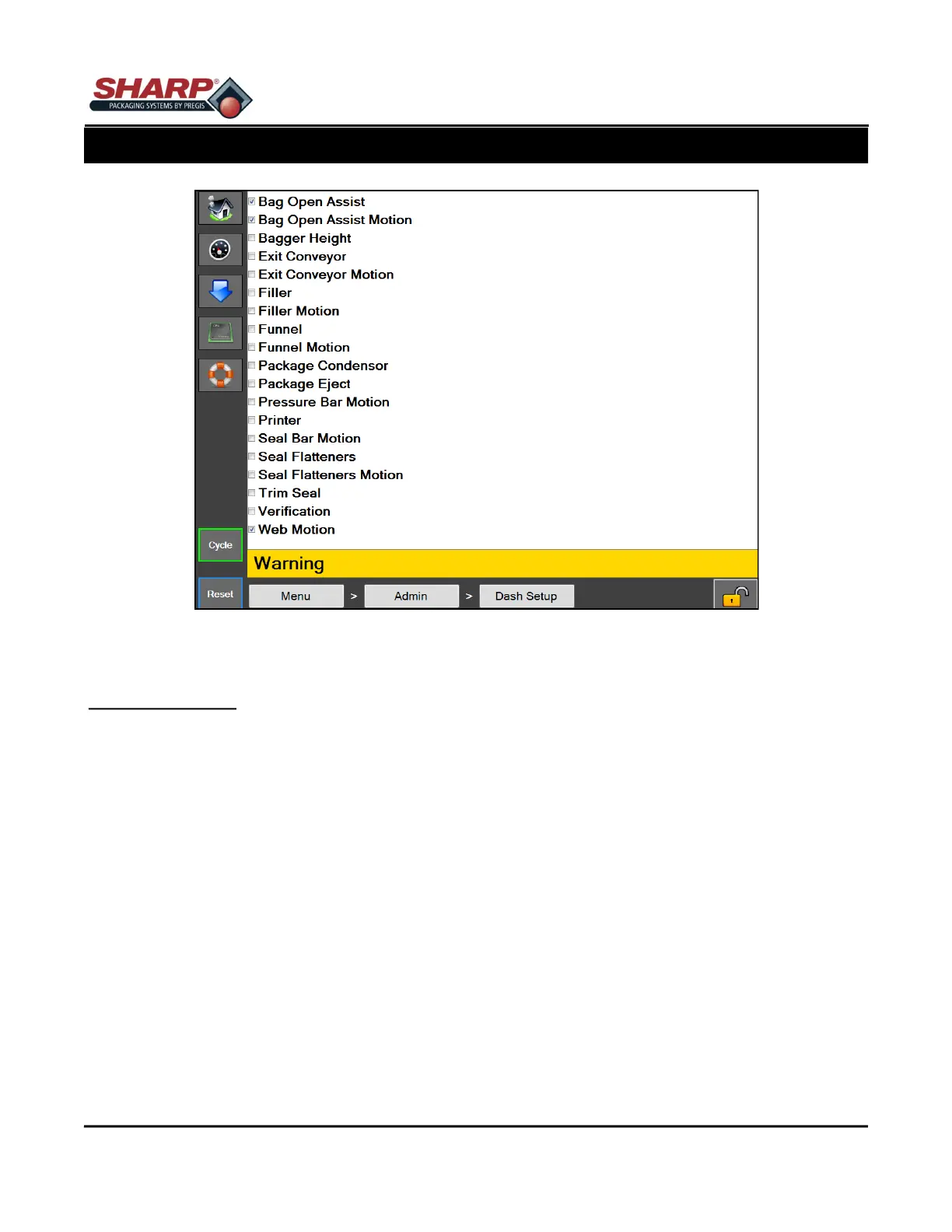

Figure 4-10A. Dashboard Setup Screen.
4-10
Dashboard Setup
General Description
The dashboard setup screen displays a list of available options/functions to be displayed on the Dashboard.
Minimum Security Access: Medium
Button/Label Descriptions:
A checked item in the list indicates the option/function is displayed and can be controlled on the Dashboard
Screen.
