MAX™ Operator Manual
©
Original Printed In English
HEIGHT ADJUSTMENT
Machine height can be adjusted to allow manual load-
ing at a convenient height.
NOTE: Height Adjustment requires two people.
NOTE: A counterbalance spring is located in the
frame upright. When bolts are loosened, unit may
raise or lower depending on spring tension.
1. Loosen height adjustment bolts located on the
Frame Upright. Figure 2-7A.
2. Two people, using both hands, should grasp the
electrical enclosure and machine hood. Pull up or
push down to place the machine at the desired
height.
3. While one person holds the unit at the desired
height, tighten the three adjustment bolts to 37 ft-
lbs of torque.
SECTION 2 - SETUP & ADJUSTMENTS
ADJUSTMENTS - HEIGHT
2-7

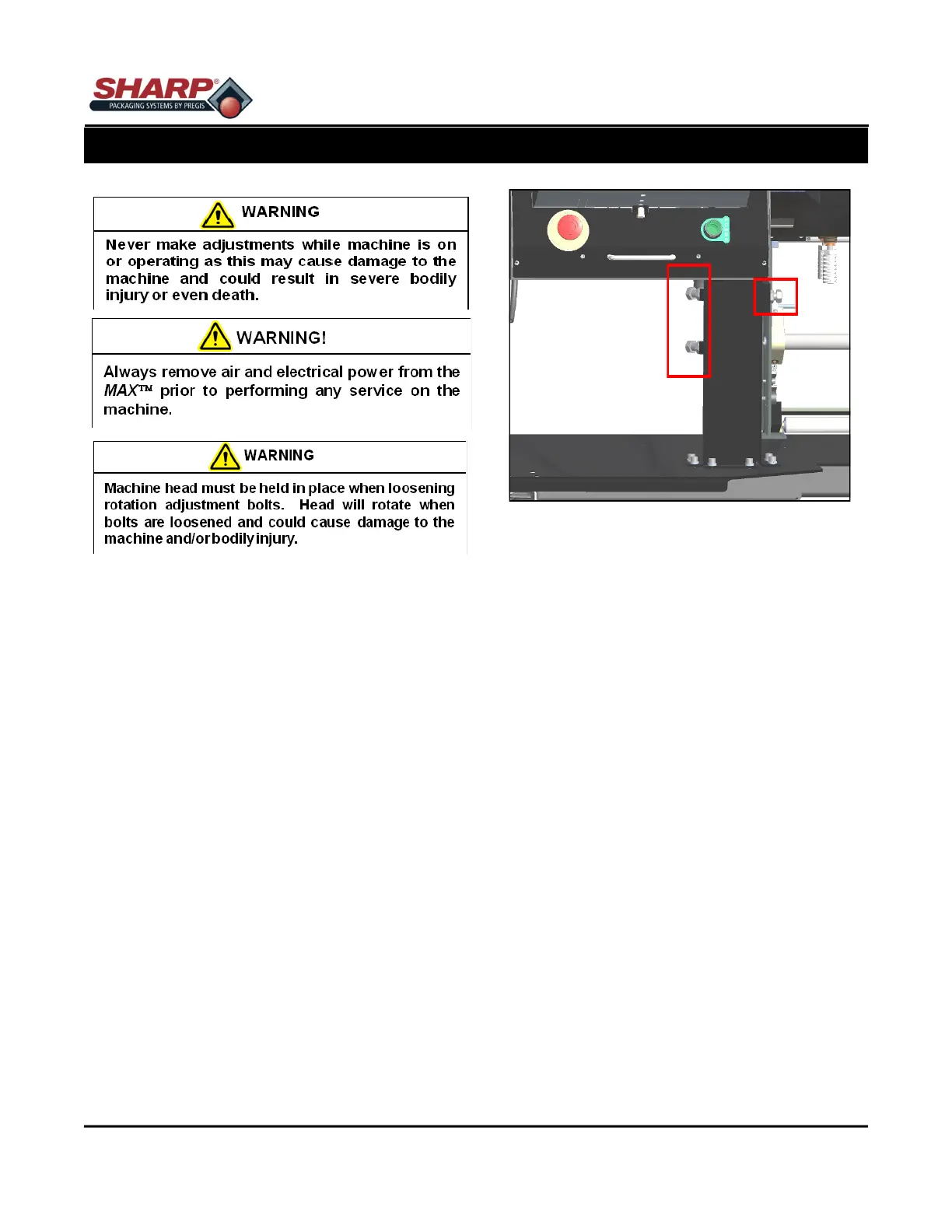

Figure 2-7A. Height Adjustment Bolts.
