Pregis SHARP MAX 1143 - Box Power Unwind Film Loading

MAX™ Operator Manual
©
Original Printed In English

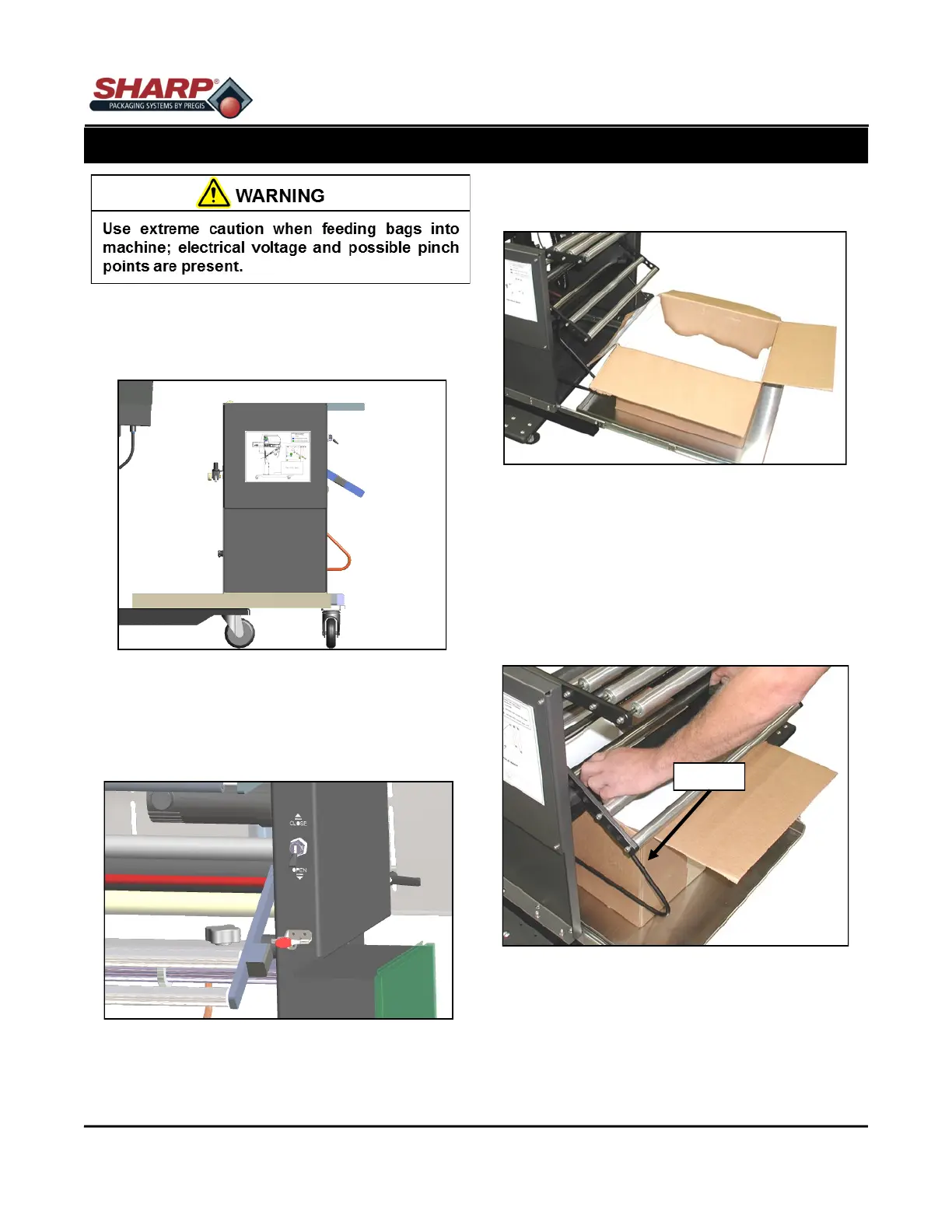

SECTION 2 - SETUP & ADJUSTMENTS
LOADING BAG FILM - BOX POWER UNWIND
2-4
A diagram showing the film threading path through
the machine is located on the side of the Power Un-
wind near the rear of the MAX™ bagger. Figure2-4A.
1. To begin threading the bags through the MAX
bagger, push the Toggle Switch to the OPEN po-
sition. Engage the Dancer Lock by moving the
locking pin into dancer arm. Figure 2-4B.
2. Open the box of fan fold bags.
3. Slide the box tray out from unwind and place the
box of bags centered on tray. Figure 2-4C.
NOTE: Position the box in tray so the perforation of
first bag opens toward you when standing behind
the box.
4. Slide the tray into the forward position. Loosen the
knobs on both Box Guides and slide both guides
the same distance inward until box is pinched be-
tween them. Figure 2-4D.
5. Tighten both knobs.
6. Thread the web according to the web threading
diagram.
7. Flip the Spool Valve Switch to the CLOSE posi-
tion. This will “pinch” the web between the Pinch
Figure 2-4A. Web Decal.
Figure 2-4B. Toggle Switch & Dancer Lock.
Figure 2-4C. Box on Tray
Figure 2-4D. Box Guides
Box Guide
