MAX™ Operator Manual
©
Original Printed In English
SLOT 3
Open Funnel - This will open the funnel door. The button will display Funnel Opened when the Funnel Opened
Sensor is made.
Close Funnel - This will close the funnel door. The button will display Funnel Closed when the Funnel Closed
Sensor is made.
Open Accum Funnel - This will open the accumulating funnel door. The button will display Accum Funnel
Opened when the Accumulating Funnel Opened Sensor is made.
Close Accum Funnel - This will close the accumulating funnel door. The button will display Accum Funnel
Closed when the Accumulating Funnel Closed Sensor is made.
Raise Funnel - This will raise the dunk funnel. The button will display Funnel Raised when the Dunk Funnel
Raised Sensor is made.
Lower Funnel - This will lower the dunk funnel. The button will display Funnel Lowered when the Dunk Funnel
Lowered Sensor is made.

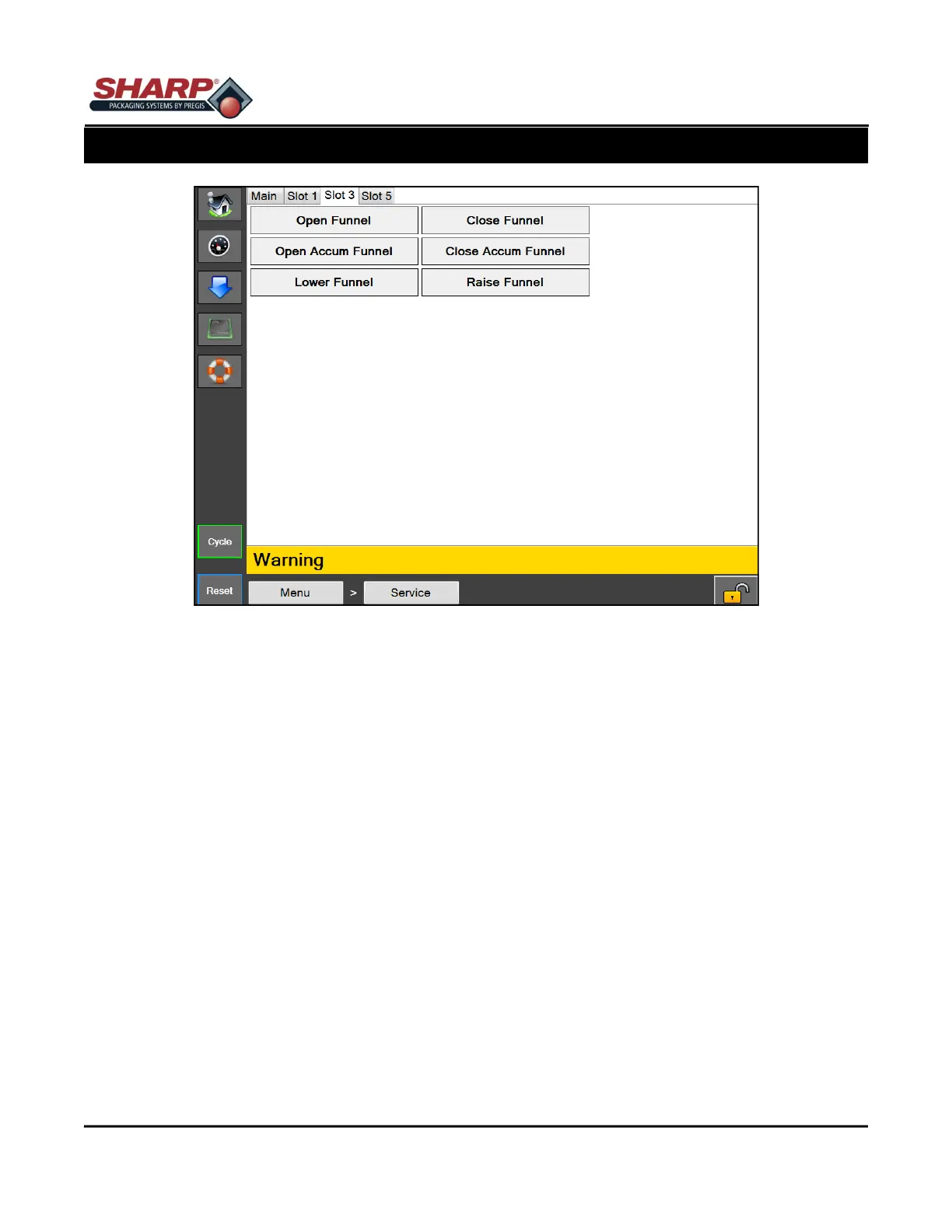

Figure 4-28A. Service Screen - Slot 3.
4-28
SECTION 4 - HMI SCREENS
SERVICE SCREEN
