Pro-face ST Series - Page 22

Chapter 1 Introduction
1-5
ST402-AG41-24V
*1 This communication port is designed exclusively to be used for an MPI Direct Connection with Seimens
Corporation S7-200/300/400 Series PLCs.
*2 This communication port is used exclusively for Extended SIO Scripts. To use this port, an Extended
SIO Script is required.
*3 For recommended units,
*4 Certain types and models of devices cannot be connected.
*5 For details about connecting,
SEE
GP-PRO/PBIII for Windows Device/PLC Connection Manual (included with the screen editor
software)
SEE
Recommended Units (Page 1-8)
SEE
GP-PRO/PBIII for Windows Operation Manual (included with the screen editor software)
SEE
GP-PRO/PBIII for Windows Device/PLC Connection Manual (included with the screen editor
software)

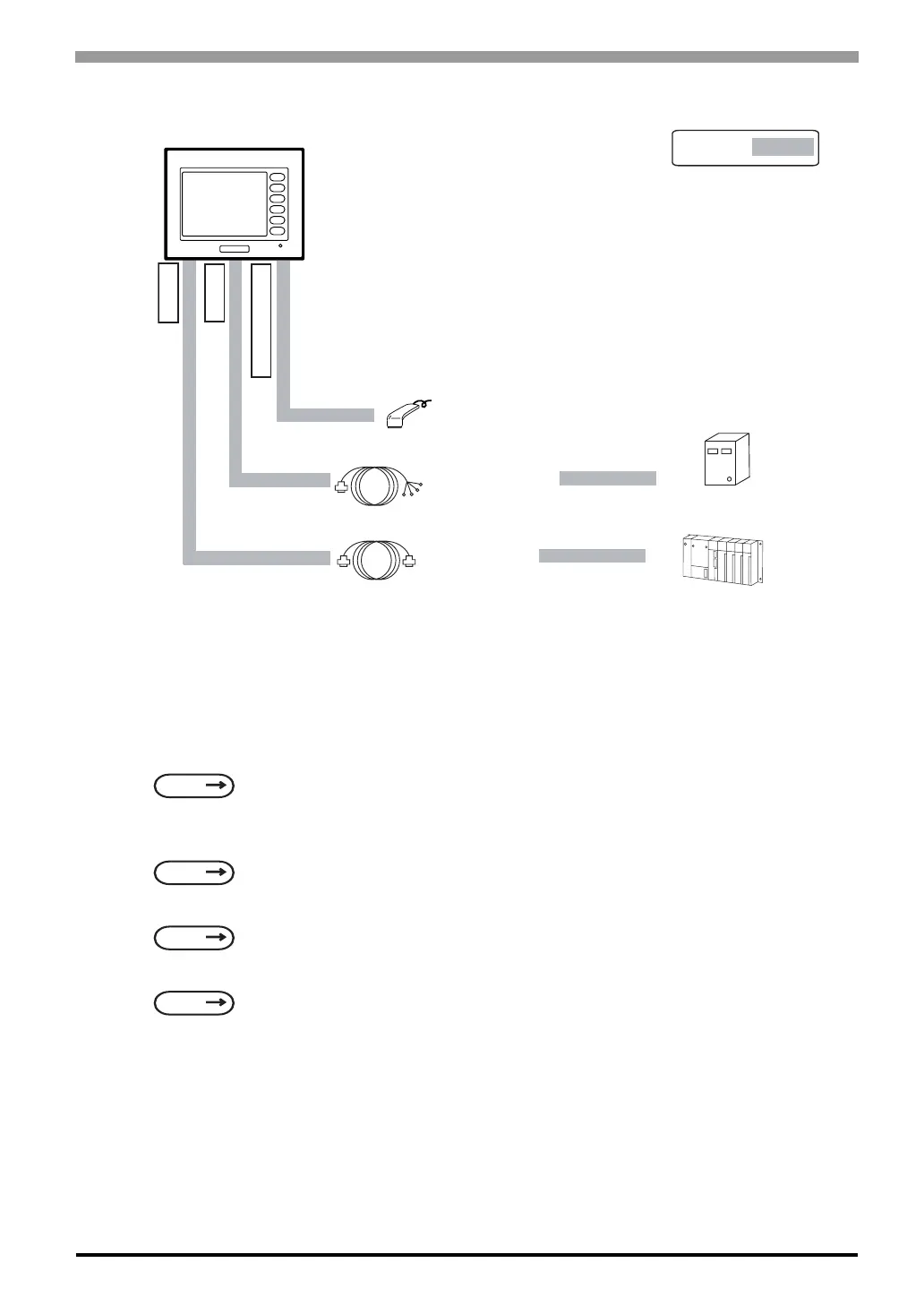

RUN Mode
ST Unit
Bar-Code Reader*
3
(Limited to tested models)
RS422 Cable
CA3-CBL422/5M-01*
4
Siemens PLC
S7-200/300/400 Series
F1
F2
F3
F4
F5
F6
Tool Connector
Y Port*
2
X Port*
1
RS422 Cable
(User-created)*
5
External Device
Controller, Card Reader etc.
