ProntoNetLC User Manual
70

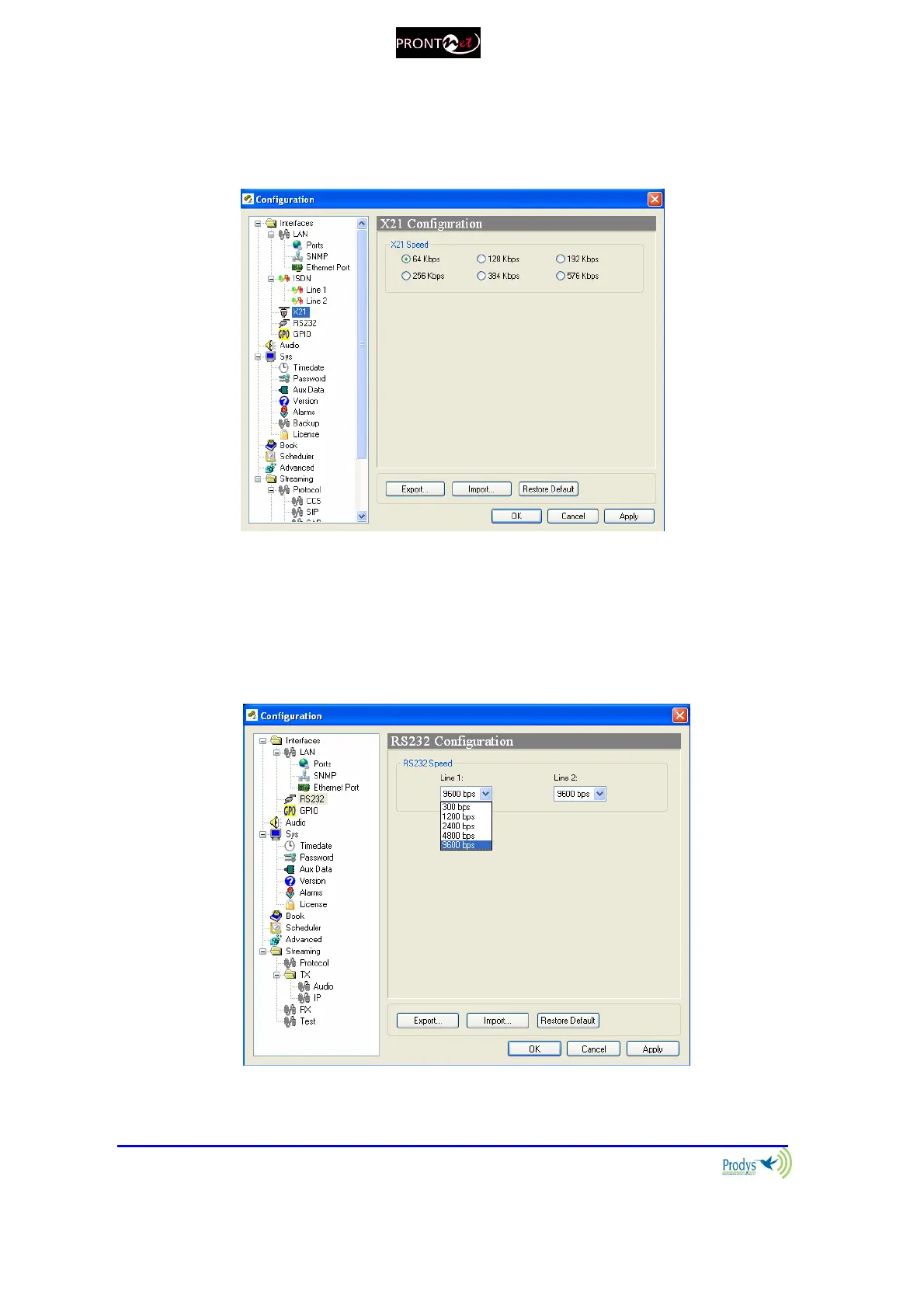

V.1.1.3. X21 Port
From this option the speed of the X21 port is selected.
V.1.1.4. RS232 Ports
There are two RS232 ports for use as auxiliary data ports. These ports allow the
transmission and reception of data along with encoded audio. The ports are
always set to 8 DATA bits, NO parity, 1 START bit and 1 STOP bit. The bit rate
can be adjusted to between 300 and 9600 bps via software.
