Quantronix CubiScan 125 User Manual

Setup Assembling the CubiScan 125
CubiScan 125 11
2. Remove the four raised screws from the top of the CubiScan
125 base assembly, and retain them to attach the top sensor sup-
port.
3. Set the top sensor support in position on top of the CubiScan
125 gate support, and line up the screw holes.

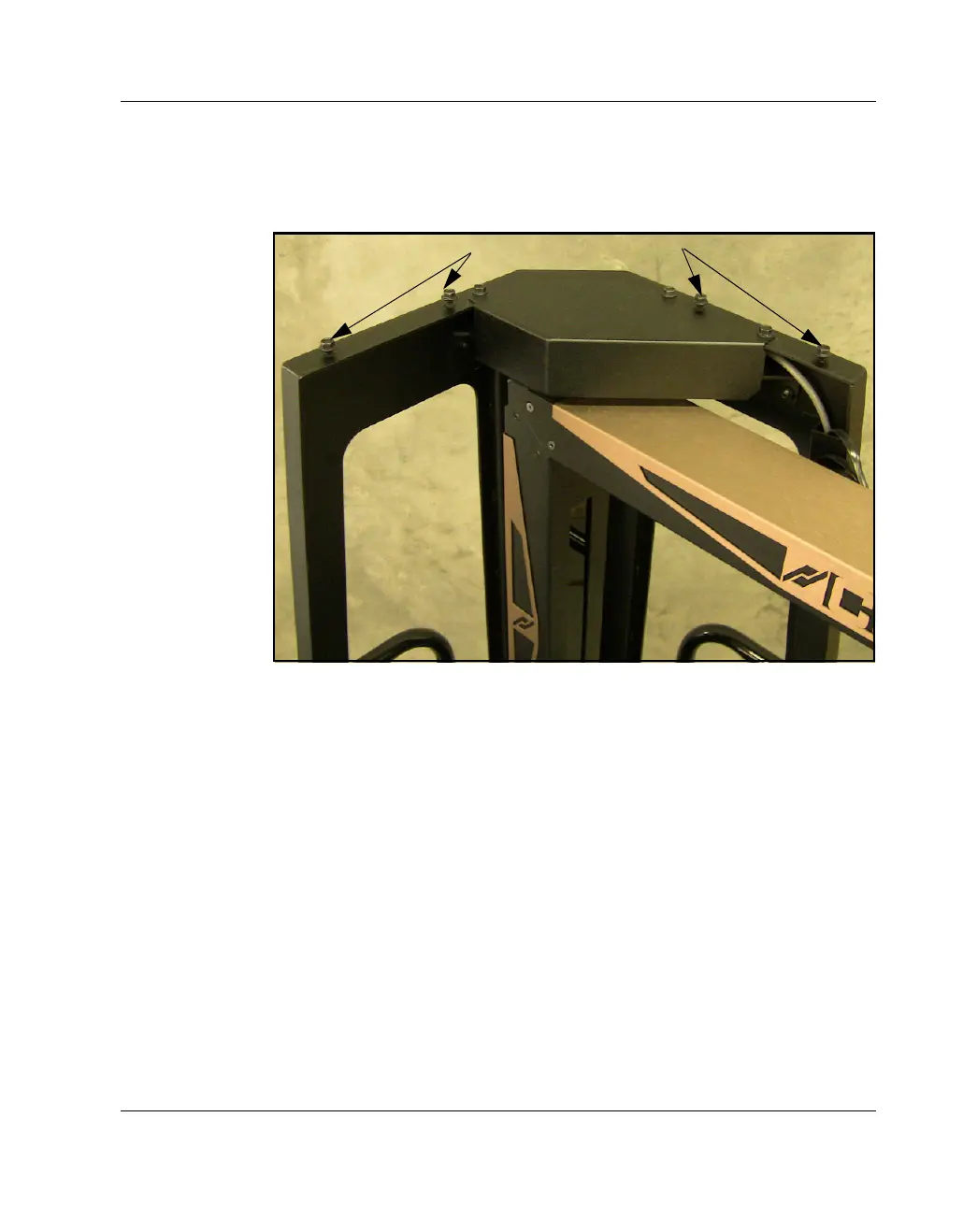

Figure 5
Raised Screws at Top of Assembled CubiScan 125
Remove 4 raised screws.
