Cubing and Weighing Operation
40 CubiScan 125
2. Place the package or object to be cubed and weighed on the
platform and slide it against the back corner until it is in contact
with both side panels. The
zero indicator light will go out.
NOTE
Do not lean on or touch the CubiScan 125 platform or the package
while a package is being cubed and weighed. Any kind of contact
with the platform during the measurement process can alter the
weight or sensor reading.
3. Tap
[Measure]. The weight, length, width, and height of the
package are displayed.
4. Remove the package from the platform. Wait for the
zero indi-
cator to light before placing the next package on the platform.
If the
zero indicator does not light, it means that the CubiScan 125
needs to be zeroed. To zero the scale, make sure that the platform is
free of all objects, then tap
[Zero].
☞

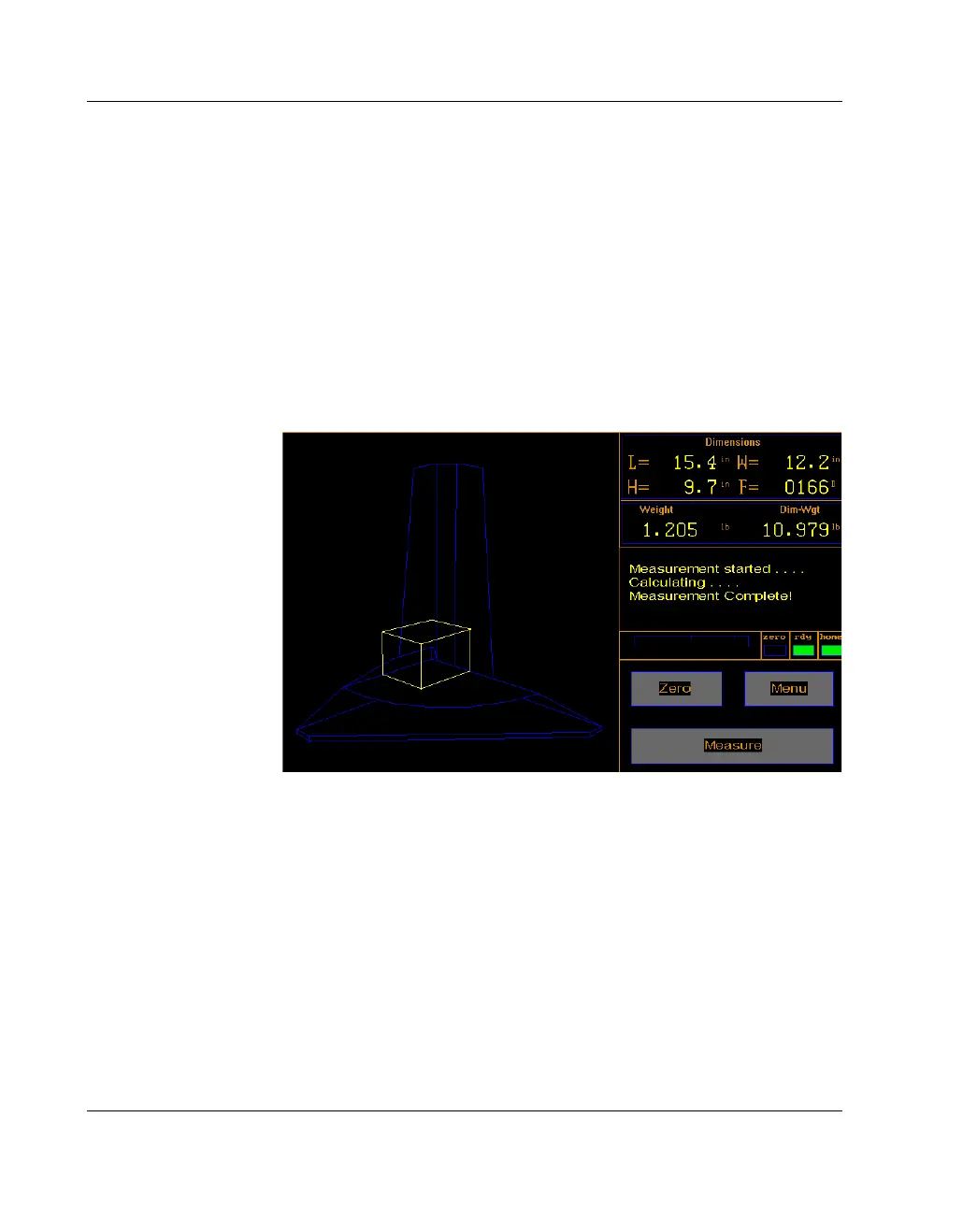

Figure 19
Measurement Display
