Operation Cubing and Weighing
CubiScan 125 43
A two-dimensional image of the object, as well as the weight,
length, width, and height of the object are displayed on the
touch screen.
Tap the image to display an image of the object’s height. Tap the
height image to return to the two-dimensional width and length
image.
4. Remove the package from the platform. Wait for the
zero indi-
cator to light before placing the next package on the platform.
If the
zero indicator does not light, it means that the CubiScan 125
needs to be zeroed. To zero the CubiScan 125, make sure that the
platform is free of all objects, then tap
[Zero].

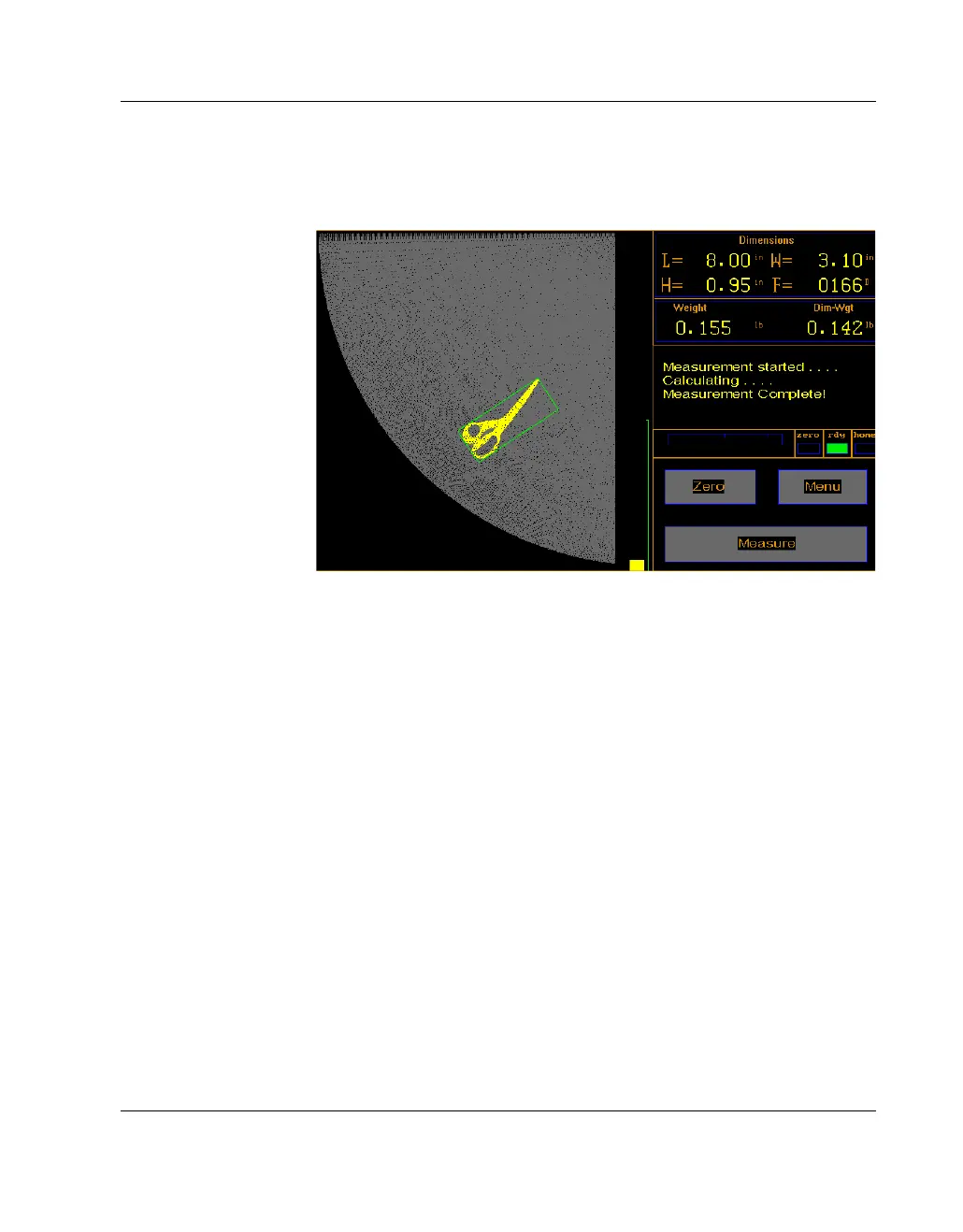

Figure 21
Measuring Gate Display
