Setup Connecting to a Computer or Network
CubiScan 125 23
NOTE
You need to load a driver on your computer before connecting it to
the USB port, and you must turn on the CubiScan 125 before con-
necting the USB cable for the first time. Refer to “Installing and
Configuring the USB Driver” on page 24 for more information.
4. Locate a free RS-232-C serial or USB (communications) port
on your computer. If using an RS-232 serial connector, deter-
mine whether the port is 9-pin or 25-pin. Refer to your com-
puter's documentation, if necessary, to identify the ports.
5. Connect the computer end of the RS-232 serial communications
cable to your computer's serial port, or connect the USB cable
to the USB port. If the serial port is 9-pin, connect the serial
cable directly to the serial port. If it is 25-pin, use a 25-pin to
9-pin adapter (not supplied).
6. To secure the RS-232 serial cable, tighten the screws (two on
each connector) at both ends of the cable. It is important that the
cable be secure. Or make sure the USB connector has snapped
into place securely.
For information on the serial cable pin-outs, refer to “Serial
(RS-232-C) Cable Pin Assignments” on page 81.

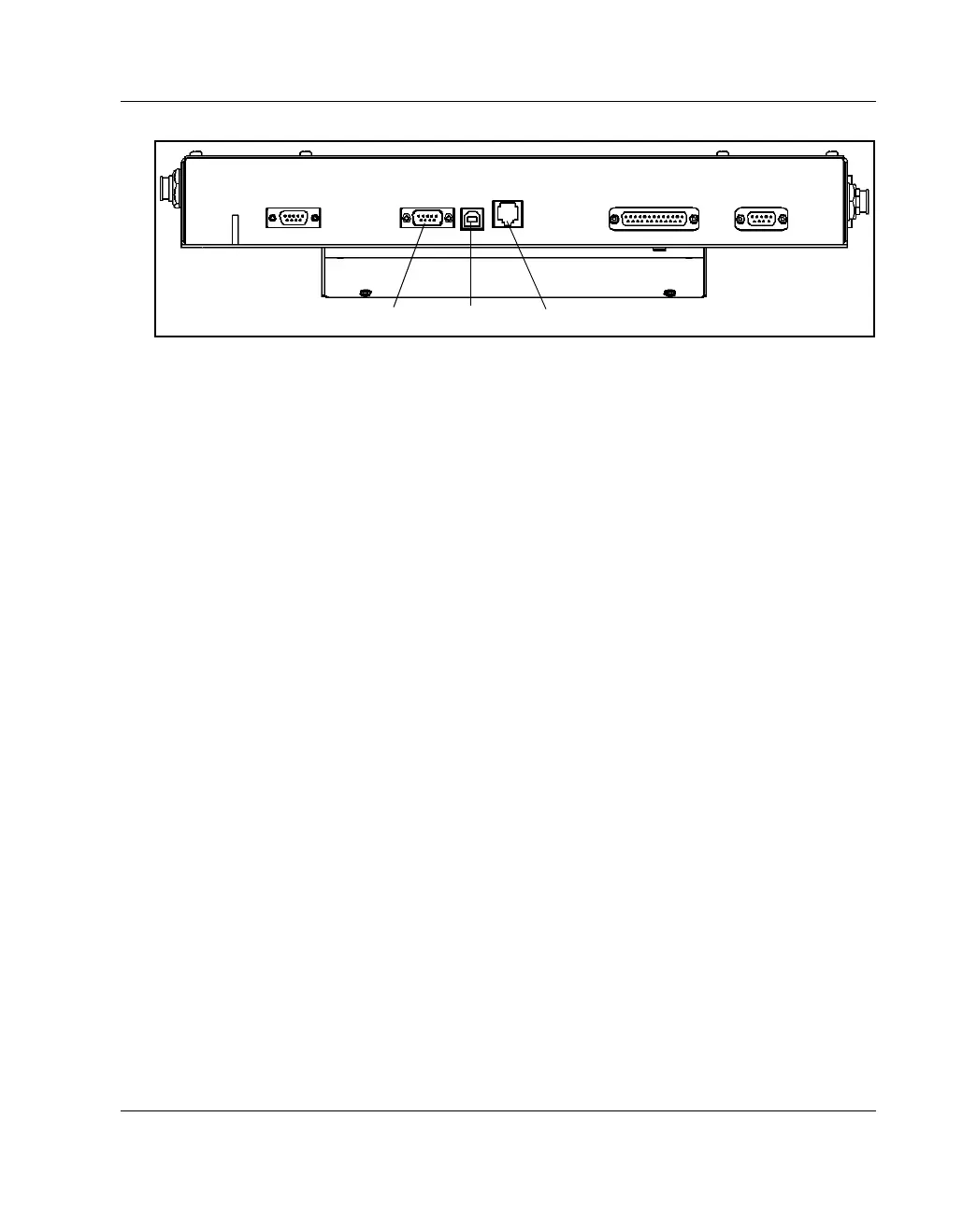

Figure 15
Serial Cable and USB Connectors
Serial EthernetUSB
☞
To Next Page
