Assembling the CubiScan 125 Setup
14 CubiScan 125
5. Route the height sensor cable from the top of the gate support
up the side of the top sensor support as shown below.
6. Place the supplied cable ties over the sensor cable and through
the holes on either side and secure them to hold the sensor cable
in place.

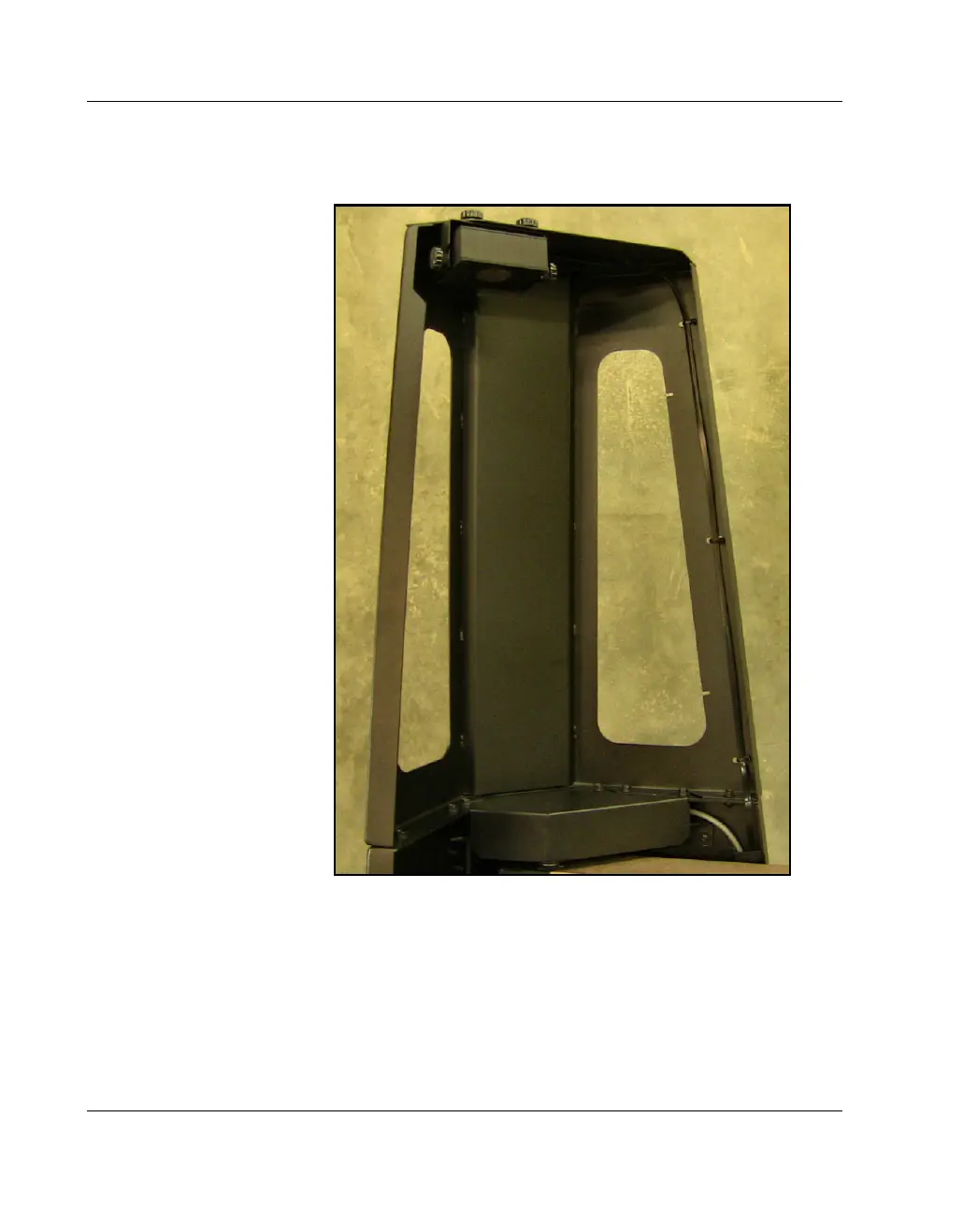

Figure 8
Routing the Height Sensor Cable
