10

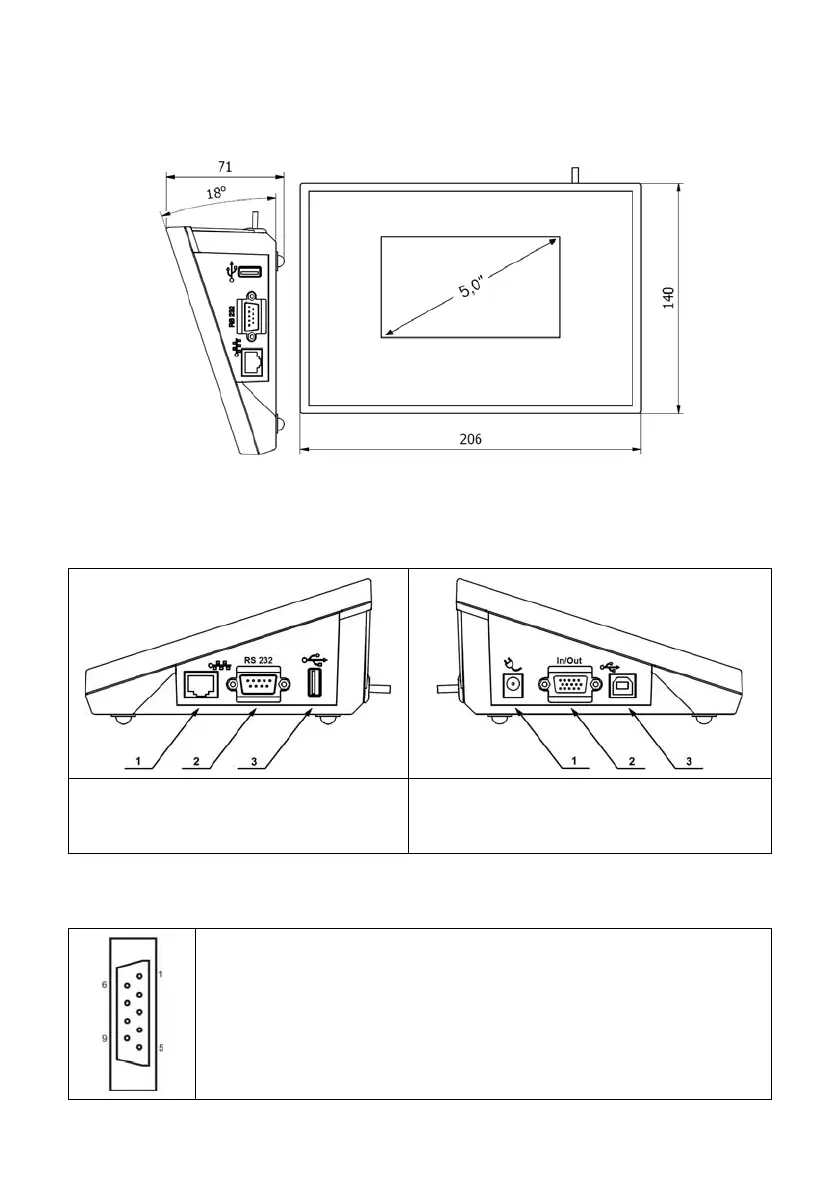

5.
MECHANICAL
DESIGN
5.1.
Dimensions
PUE C32 overall dimens
ions
5.2.
Connectors Arrangement
1 – Ethernet RJ45 connector
2 – RS232 (COM1) connector
3 – USB type A connector
1 – power supply socket
2 – I/O, RS232 (COM2) connector
3 – USB type B connector
5.3.
RS232 Connectors
RS232 - DB9/M conn
ector (male), front:
Pin2 - RxD
Pin3 – TxD
Pin4 - 5VDC
Pin5 - GND
9
11
Table of Contents
Default Chapter
3
Table of Contents
3
1 Intended Use
7
2 Precautions
7
Operation
7
Battery Power Supply
8
3 Maintenance
8
Cleaning ABS Components
8
Cleaning Stainless Steel Components
9
4 Warranty Conditions
9
5 Mechanical Design
10
Dimensions
10
Connectors Arrangement
10
RS232 Connectors
10
Inputs / Outputs
11
Technical Specifications
11
I/O Schematic Diagrams
12
6 Unpacking and Installation
12
7 Start-Up and Operation
12
Levelling
12
Connecting the Scale to the Mains
12
Battery Status
13
8 Operation Panel
13
9 Home Screen
14
Top Bar
15
Weighing Result Window
15
Workspace
16
Pictograms
16
10 Operating the Menu
16
Entering the Menu
16
Menu Keys
17
Entering Numeric and Text Characters and Signs
18
Numerical Box
18
Text Box
19
Diacritical Sign Table
21
Special Sign Table
21
Return to Weighing
22
11 Program
22
12 Log in Operation
22
Log in Procedure
22
Log out Procedure
23
Permission Levels
23
13 Weighing
23
Good Weighing Practice
24
Zeroing
24
Taring
25
Dual Range Devices
25
Weighing Unit Change
25
Setting MIN, MAX Thresholds
26
Setting MIN, MAX Threshold Using a Programmable Button
26
Setting MIN, MAX Thresholds by Product Selection
27
Setting MIN, MAX Threshold Using Proximity Sensor
27
Setting MIN, MAX Threshold Using a Digital Input
27
14 Communication
28
Rs232
28
Ethernet
28
Wireless Communication
28
Usb a
30
USB B Port
30
15 Peripheral Devices
33
Computer
33
Port
33
Address
34
Weighing Printout Template
34
Continuous Transmission
34
Printout Interval
34
E2R
35
Printer
35
Port
35
Code Page
36
Prefix, Suffix
37
Record of Measurement Data Onto a USB Flash Drive
37
Barcode Scanner
38
Port
38
Offset
38
Code Length
39
Prefix, Suffix
39
Field Selection
39
Filtering
39
Test
40
Additional Display
40
Port
40
Bottom Text Area Template
41
16 Printouts
41
Print Mode: Header - GLP Printout - Footer
41
Non-Standard Printouts
43
Adjustment Report
44
Dosing Report
44
Formulation Report
45
17 Inputs / Outputs
46
Input Setup
46
Output Setup
46
18 Display
47
Workspace
47
Label
48
Text Box
49
Bar Graph
49
Keys
51
Default Screen Settings
53
19 Permissions
53
Anonymous Operator
54
Date and Time
54
Printouts
54
Databases Editing
55
Select Database Record
55
20 Units
55
Units Availability
56
Start Unit
56
Gravitational Acceleration
56
Custom Units
57
21 Miscellaneous Parameters
57
Interface Language
57
Beep' Sound
57
Display Brightness
58
Proximity Sensors Sensitivity
58
Date and Time
58
Backlight Standby Time
59
Automatic Shutdown
59
Default Operator Settings
59
22 Adjustment
60
External Adjustment
60
User Adjustment
60
Start Mass Determination
60
Adjustment Report
61
23 Scale Data
61
24 WORKING MODES - General Information
61
Running Working Mode
62
Working Mode Accessibility
62
25 WORKING MODES - Local Settings
62
Readout
63
Proximity Sensors
63
Save Mode
64
Auto Threshold
64
Result Control
64
Autotare
65
Labelling Mode
65
Automatic C Label Triggering
66
Statistics
67
26 Working Mode - Weighing
67
Home Screen
67
Local Settings
68
27 Working Mode - Parts Counting
68
Home Screen
68
Function of Automatic Correction of Reference Sample Mass
69
Minimum Reference Sample Mass
70
Setting Reference Sample Mass by Entering Mass of a Single Part
70
Setting Reference Sample Mass by Determining Mass of a Single Part
70
Setting Reference Sample Mass by Acquiring Mass of a Single Part from Database
71
Entering Reference Sample Mass to the Scale Memory
72
28 Working Mode - Percent Weighing
72
Home Screen
72
Local Settings
72
Reference Sample Mass Determined by Weighing
73
Reference Sample Mass Entered to the Scale Memory
73
Setting Reference Sample Mass by Acquiring Mass of a Single Part from Database
73
29 Working Mode - Dosing
74
Home Screen
74
Local Settings
74
New Dosing Process
75
Dosing Procedure
76
Dosing Status
78
Dosing Bar Graph
79
Dosing Process Report
80
30 Working Mode - Formulations
81
Home Screen
81
Local Settings
81
New Formulation
82
Formulation Procedure
83
Formulation Report
85
31 Databases
86
Database Export
86
Database Import
87
Adding Database Record
87
Deleting Database Record
87
Deleting Database Content
88
Database Editing
88
Operators
88
Products
88
Packaging
89
Customers
90
Formulations
90
Dosing Processes
90
Labels
91
Universal Variables
91
32 Reports
91
Export of Reports
92
Deleting Reports
92
Reports Preview
93
Weighings
93
Alibi
93
Dosing Reports
94
Formulation Reports
94
33 Import / Export
95
Data Export
95
Data Import
95
34 Diagrams of Connection Cables
96
35 Technical Specifications
97
36 Error Messages
98
37 ANNEX 01 - Printout Variables
99
Variables
99
Variable Formatting
101
38 ANNEX 02 - Label Template
103
Creation of a Label Template Via the Scale
103
Sending a Label Template to the Scale Memory
103
Assigning a Label with a Template to a Product
103
Assigning a C Label with a Template to a Product
104
Assigning a Label with a Template to a Customer
104
Printing a Label with a Template
104
39 ANNEX 03 - ZEBRA Printer Configuration
104
40 ANNEX 04 - Barcode Scanner Configuration
105
