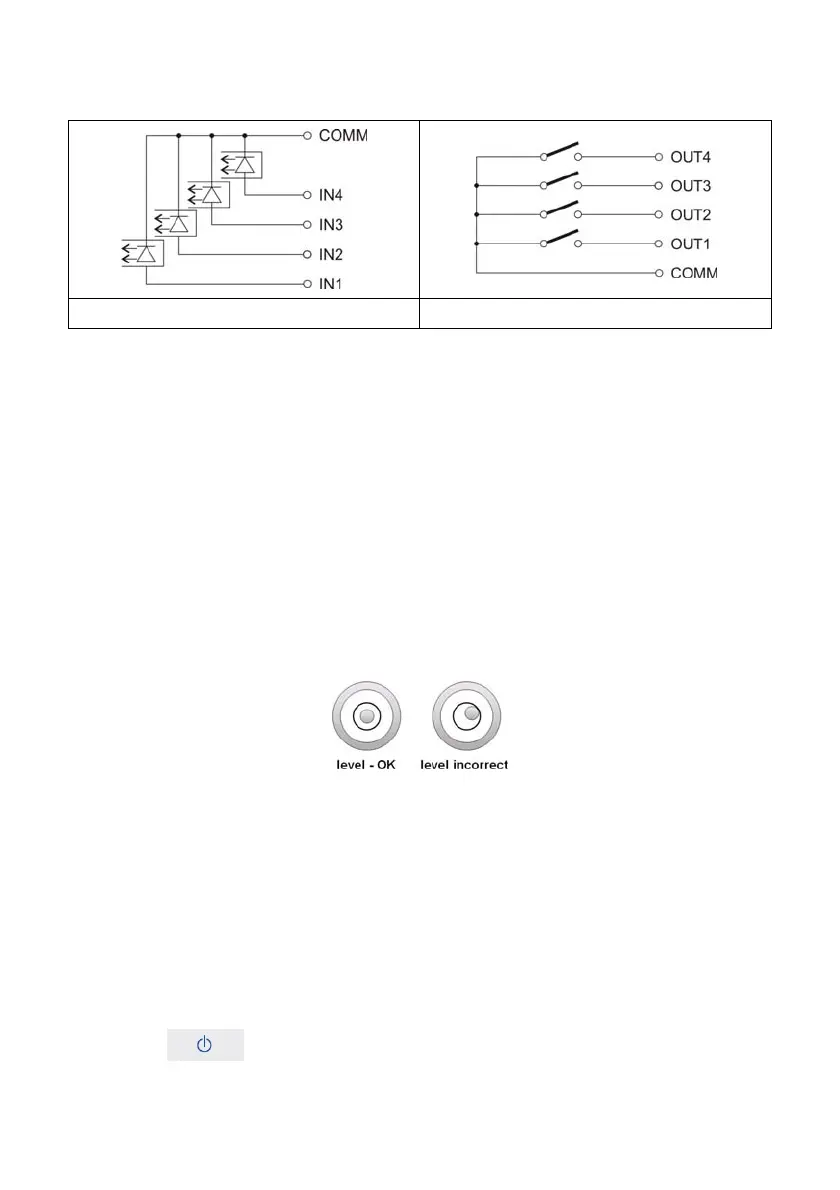

5.4.2. I/O Schematic Diagrams
4 inputs 4 outputs
6. UNPACKING AND INSTALLATION
A. Take the indicator out of the packaging.
B. Connect the indicator to a weighing platform, next place the weighing
device on a flat and even surface. Keep it far away from any sources
of heat.
7. START-UP AND OPERATION
7.1. Levelling
It is necessary to level the scale, do it by turning its feet. Keep turning the feet
until the air bubble takes central position.
7.2. Connecting the Scale to the Mains
The weighing device can be connected to the mains only with a power supply
that comes standard with a particular model. Nominal voltage of the power
supply (specified on the power supply data plate) has to be compatible with the
mains nominal voltage.
Procedure:
• Connect the power supply to the mains. Plug it to the power supply socket
that is located on the scale's side.
• Press
key, it is to be found on the top of the operation panel.
• Upon completed start-up, the home screen is displayed automatically.
