RADWIN2000D+UserManual Release3.6.00 15‐6
ConfigurationofVLANTaggingforEthernetService Chapter15
3.EnteraProviderVLANIDandPriority.TheVLANIDmustbeintherange2to4094.
TheVLANPrioritymustbeintherange0to7.YoumayalsochangetheTPIDfrom
thedefaultasshown.
4.ClickOKtoaccept.

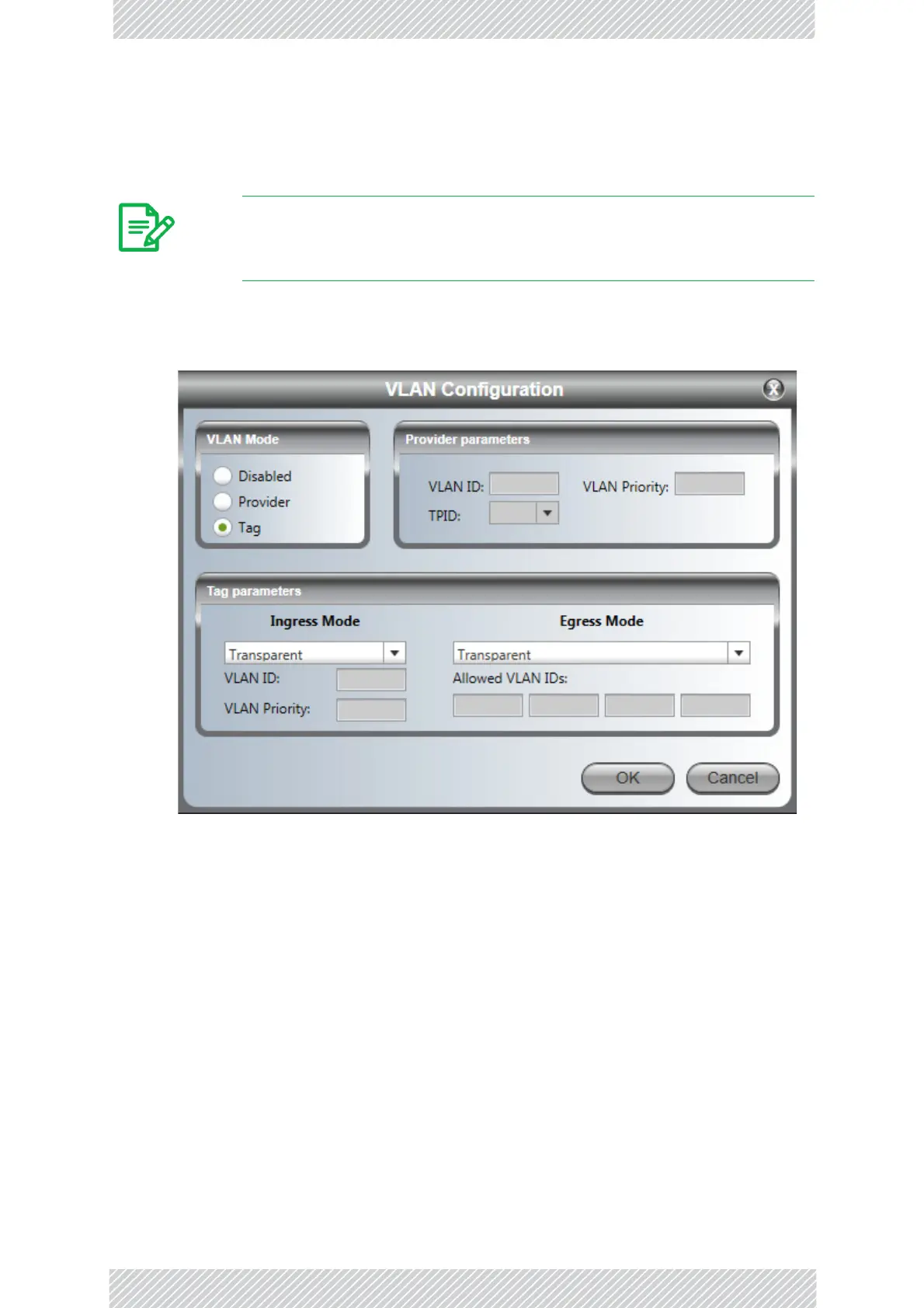

5.ForuserVLANtagging,clicktheTagRadiobutton:
InTagmodeEthernetframesaretaggedoruntaggedtodistinguishbetweendiffer‐
entnetworks.
6.Forcompletelytransparentpassageoftagge dframes,ther eisnothingfurthertodo.
Table 15‐3showsthepossiblesettingsforeachcombinationofIngressandEgress
modes.
Note
Thisfacilityisprovidedtoenableconnectionthroughlegacyswitches
requiringit.Otherwise,thereisnoneedtochangetheTPID.
