RADWIN2000D+UserManual Release3.6.00 20‐7

Zoominginandout Chapter20

20.9Zoominginandout

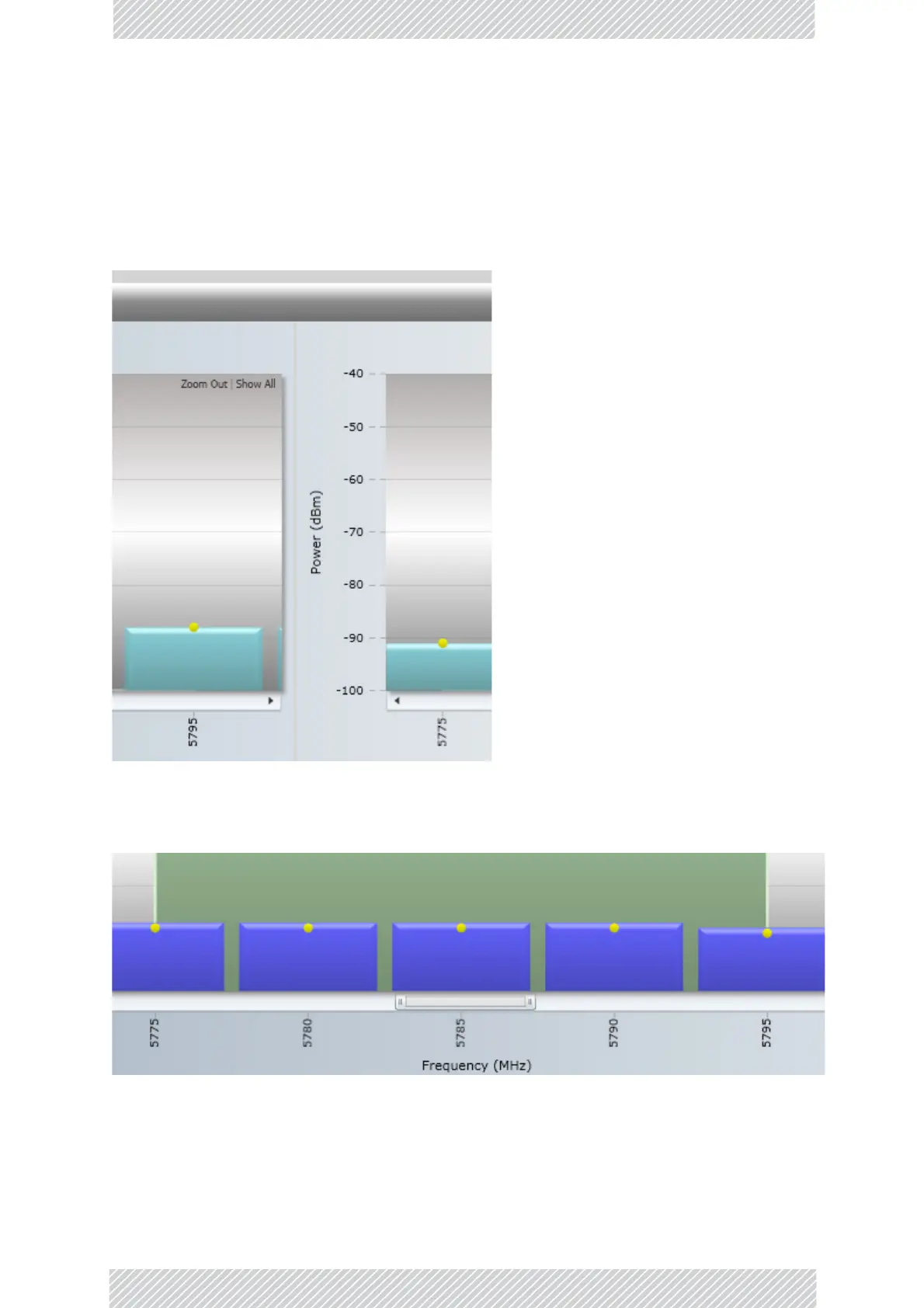

Youmay zoominonarangeofinterestand enlargeit. Usethemousetoswipetherangefrom

lefttorightorreverseandthenclick.Theswipedrangeiszoomedin.Youmayrepeatthis

severaltimes.Thezoomappliestoallchartsforallelementintheanalysis.Anindicatoris

providedatthetoprightofeachchart:

ZoomOutreturnsyoutothepreviouszoomstate;Showallrevertsyoutotheoriginaldisplay.

Inazoomedstate,ahorizontalscrollbarenablesyoutoviewotherareasofthedisplayed

frequencyrange.
