RADWIN2000D+UserManual Release3.6.00 6‐8

ActivatingtheRT‐A(HBS) Chapter6

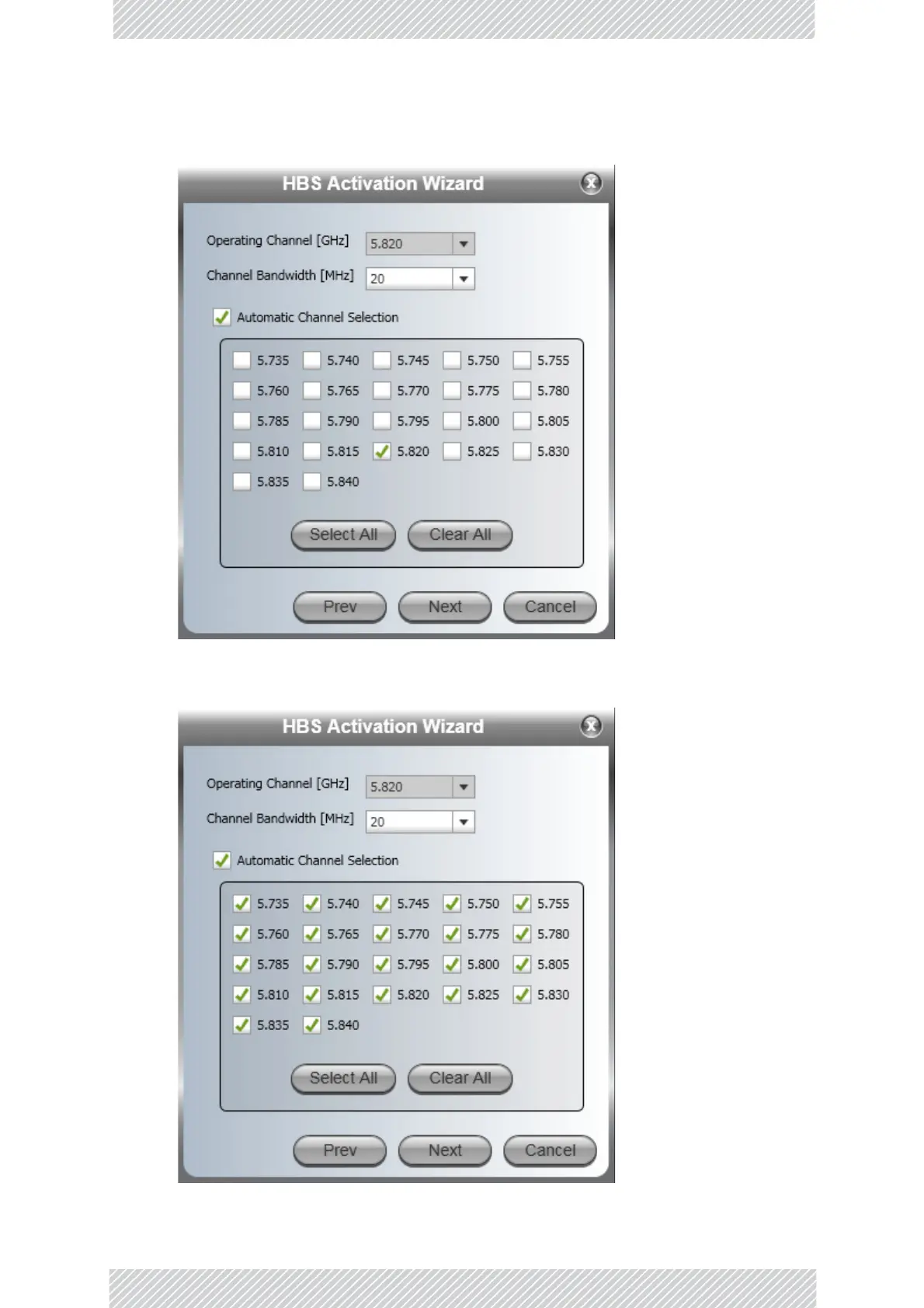

• ForCBW20MHzorless,enableACSbycheckingtheAutomaticChannelSelection

box:

YoucanperformacustomizedchannelselectionorclickSelectAlltocheckallthe

channelboxesasshown:
