RADWIN2000D+UserManual Release3.6.00 6‐19

Ethernet Chapter6

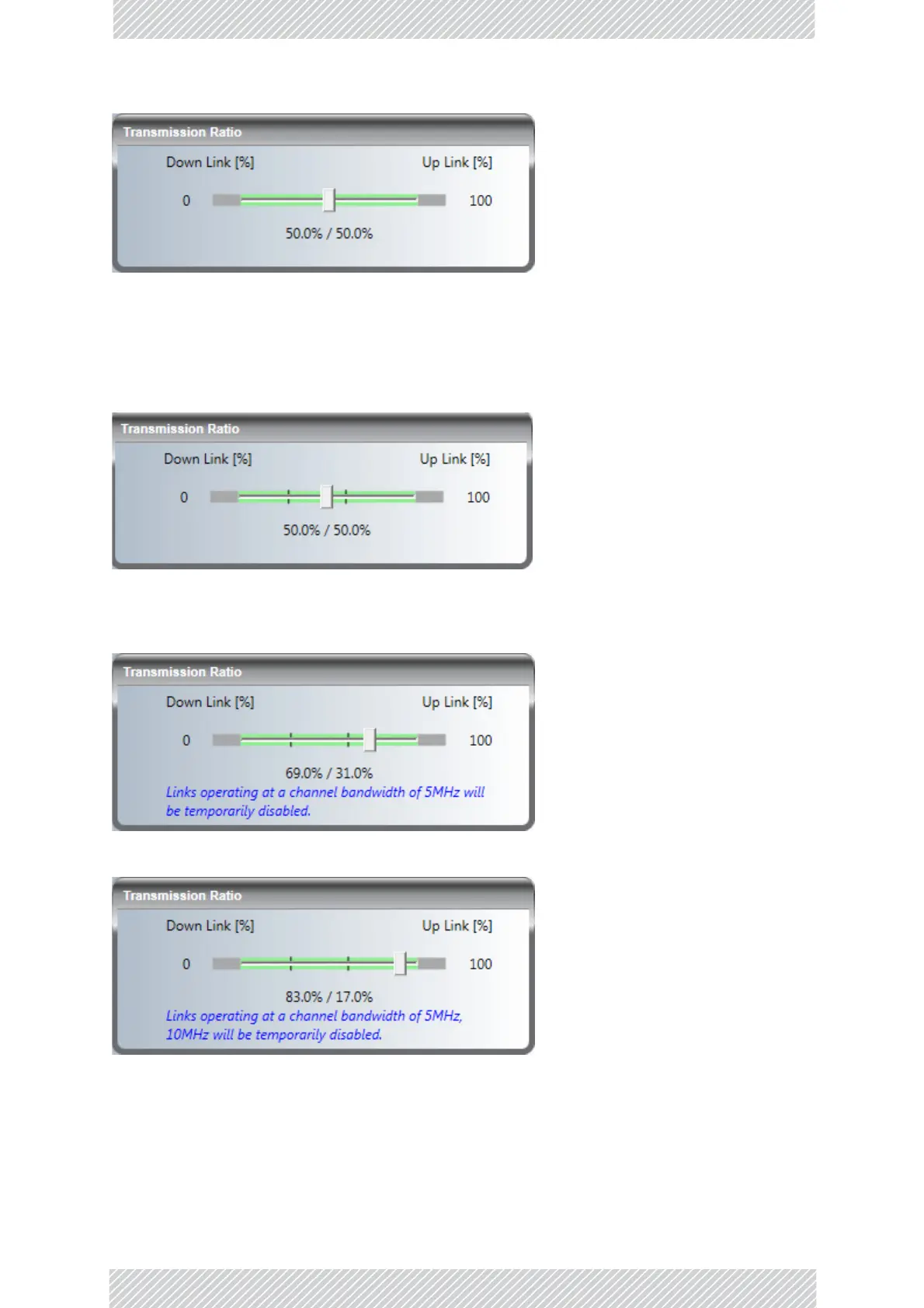

Figure6‐8:RT‐A(HBS)Collocatedclientorindependentunit

ThepermissibleTransmissionRatioisalsodependentonRT‐A(HBS)’sHSS(collocation)status.

(ForfurtherdetailsaboutconfiguringandusingHSS,seeHubSiteSynchronization.)

IftheRT‐A(HBS)isanHSSmaster,youwillseesomethinglikethis:

Figure6‐9:RT‐A(HBS)Collocatedmaster

Movingtheslidertotherightinstages,yieldsthefollowing:

TheeffectiveavailablerangeforAspymmetricallocationisdeterminedbychannelbandwidth

asshownaswellaslinkdistance.Inthiscontext,“link”isacollocatedRT‐A(HBS)orother

RADWIN2000ODU.
