RADWIN2000D+UserManual Release3.6.00 6‐18

Ethernet Chapter6

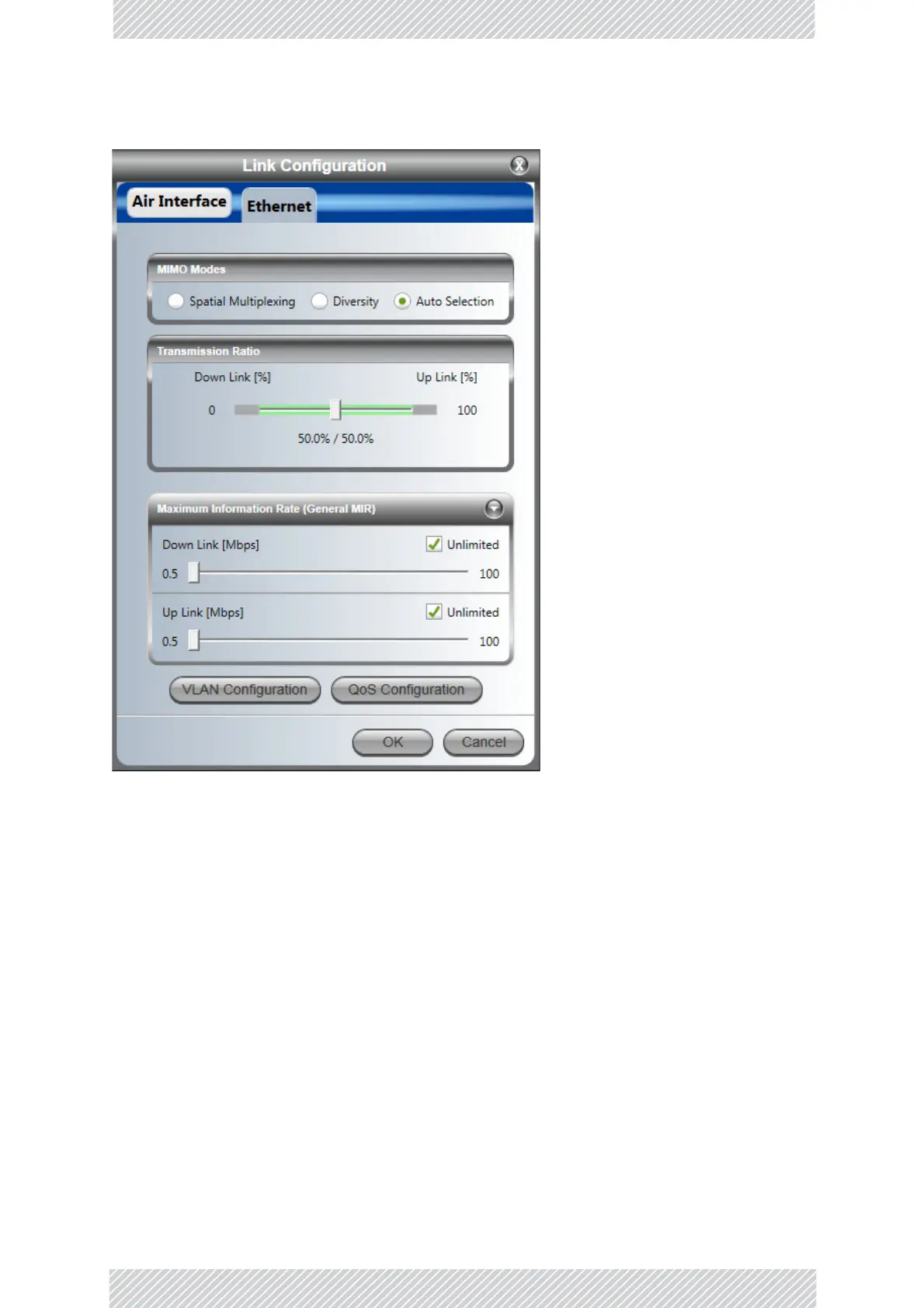

6.3.2Ethernet

MIMOModes

IfyouareusingDualAntennas,youmaycheckaMIMOMode:SpatialMultiplexing (default)

splitsthedataintotwostreamsontransmissionandrecombinesitonreceptionproviding

maximumthroughput.Diversitytransmitsthesamedataonfrombothantennasandcheck

forcorrectnessonreception.ForfurtherdetailsaboutMIMOante nnamodes,seeLink

Configuration.

TransmissionRatio

TheTransmissionRatioshowstheallocationofthroughputbetweendownlinkanduplink

trafficatRT‐A(HBS).
