Installation and Service manual
Compass STD 22
Compass STD 22 Compact
8
Edition: Feb. 17, 2006
3646/110 --233.DOC010302
24VDC
18--36 V. d.c
Option:
Compass
STD 22
110 --233
or
2x Heading (course--bus or NMEA)
1x Heading (Course bus)
Status
-- SEC
-- System
-- Available
Distribution Unit
138--118
Compass
STD 22
110 --233
Compass
STD 22
110 --233
Operator Unit
130--613
for external data processing
CAN bus
CAN bus
8x Heading (12x -- E10)
(course bus or NMEA)
3x Step
1x rate
of turn
1x RS232
for printer

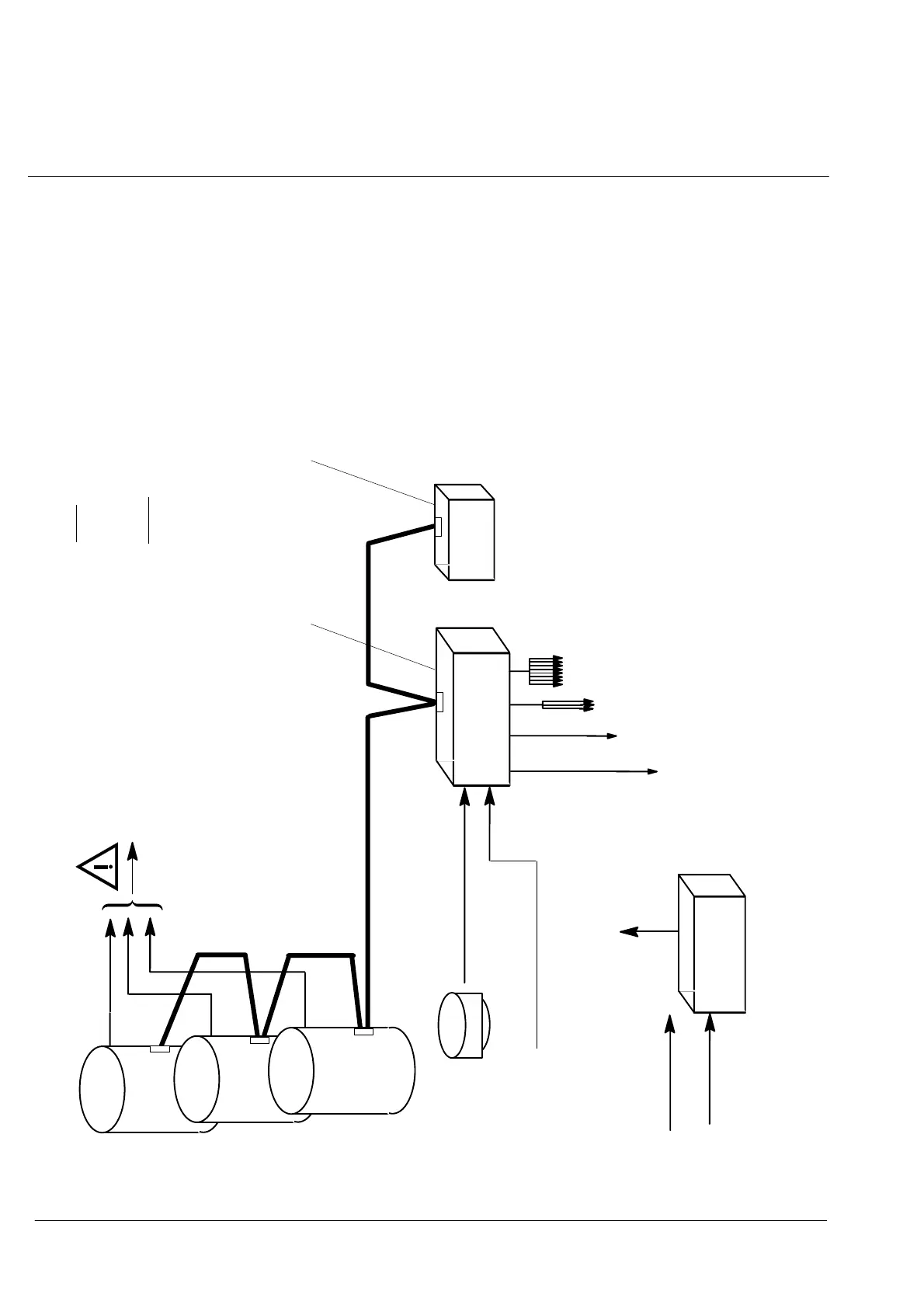

STD 22 GGGM Gyro Compass System
*
*(GGGM = Gyro/Gyro/Gyro/Magnet)
see manual no.:3648
see manual no.: 3647
Inputs:
-- NMEA Speed
-- NMEA Position
-- Pulse Log
-- Pulse Log Direction
NMEA Position
NMEA Speed
Pulse Log Direction
Pulse Log
Outputs:
each STD 22 Compact Compass NG001
-- 2x Heading RMG course bus or NMEA
--1x status signal
Distribution Unit
-- 8x Heading RMG course bus or NMEA
-- 3x Step (6 steps/degree), 24/35VDC, max. 10W
-- 1x RS232 serial interface for printer
-- 1x rate of turn +/-- 10V for 30/100/300 degrees/min
-- 12x Status (potential free)
115--230VAC
50/60Hz
AC/DC converter
(1x per compass)
Magnetic sonde
108--010
*
*The number of necessary
AC/DC converters depends on the neces-
sary max. power of all supplied devices
Heading (course bus or
NMEA) with/without SEC
