Raytheon Anschütz STD 22 Compact GYRO COMPASS Installation And Service Manual

Compass
STD 22
Installation and Service manual
Compass STD 22
Compass STD 22 Compact
9
Edition: Feb. 17, 2006 3646/110 --233.DOC010302
or
CAN bus

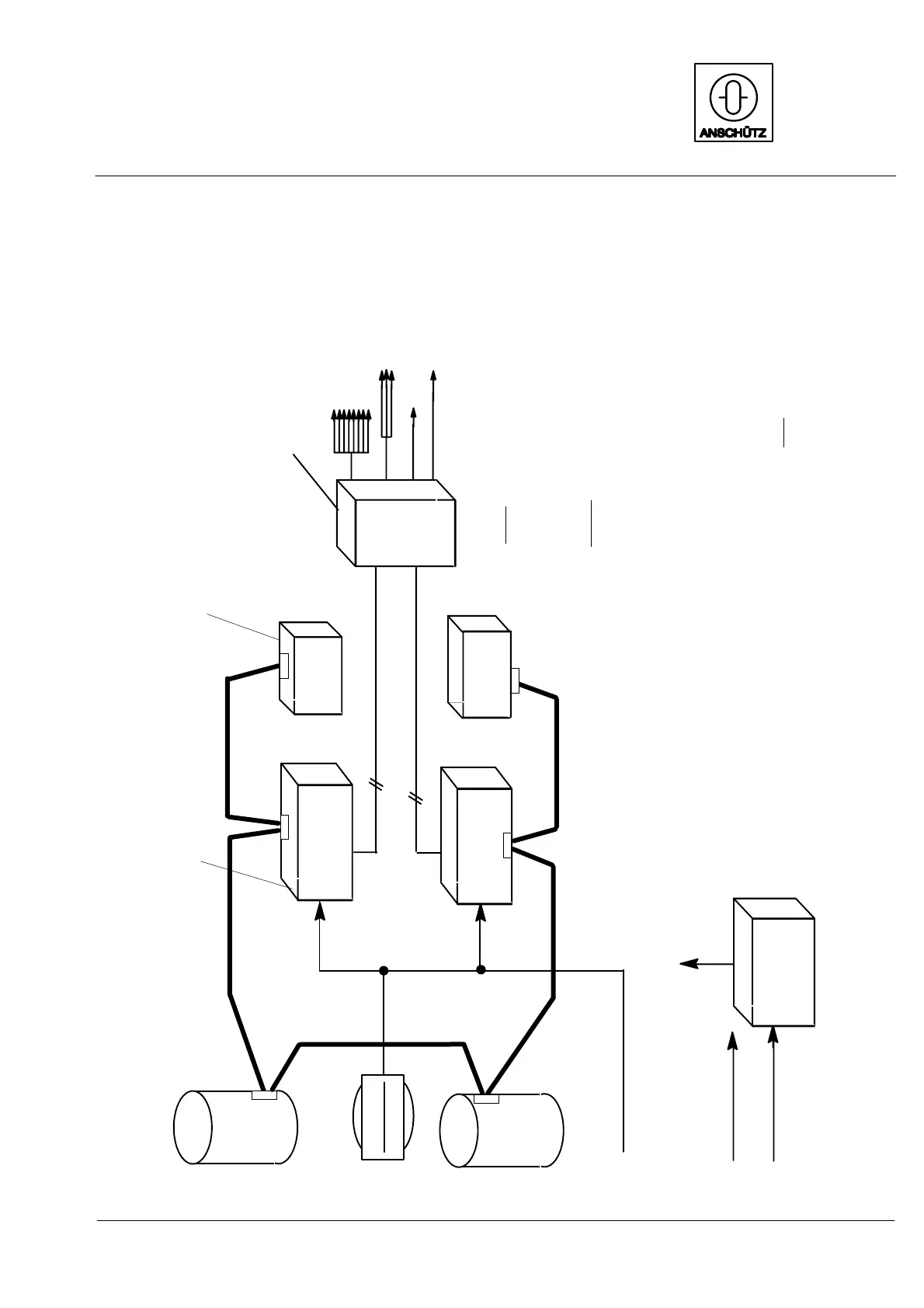

STD 22 GGM--R Gyro Compass System
*
*(GGM--R = Gyro/Gyro/Magnet -- Redundant)
Inputs:
-- NMEA Speed -- NMEA Position -- Pulse Log -- Pulse Log Direction
Outputs:
Distribution Unit:
-- 8x Heading RMG course bus or NMEA -- 3x Step (6 steps/degree), 24/35VDC, max. 10W -- 1x RS232 serial interface for printer -- 1x rate of turn +/-- 10V for 30/100/300 degrees/min -- 12x Status (potential free)
Compass
STD 22
110 --233
CAN bus
see manual no.:3648
see manual no.: 3647
Compass
STD 22
110 --233
8x Heading (12x) (course bus or NMEA
3x Step
1x rate of turn
1x RS232 for printer
Change- over box
138--119
CAN bus
CAN bus
24VDC
115--230VAC 50/60Hz
Operator
Unit
130--613
Operator Unit
130--613
Distribution Unit
138--118
Distribution Unit
138--118
NMEA Position NMEA Speed Pulse Log Direction Pulse Log
Option:
AC/DC converter
121--062
(per compass)
18 -- 36 V.d.c
108--010
Magnetic sondes
*
*The number of necessary
AC/DC converters depends on the neces- sary max. power of all supplied devices
!Not for DV--bus application!
see manual no.:3769
Note: Manual inputs (Deviation) has to be
set for both Distribution Units
