Installation and Service manual
Compass STD 22
Compass STD 22 Compact
10
Edition: Feb. 17, 2006
3646/110 --233.DOC010302
24VDC
18 -- 36 V. d. c
AC/DC converter
121--062
Option:
or
Distribution Unit
138--118
Operator Unit
130--613
CAN bus
8x Heading (12x)
(course bus or NMEA)
3x Step
1x rate
of turn
1x RS232
for printer

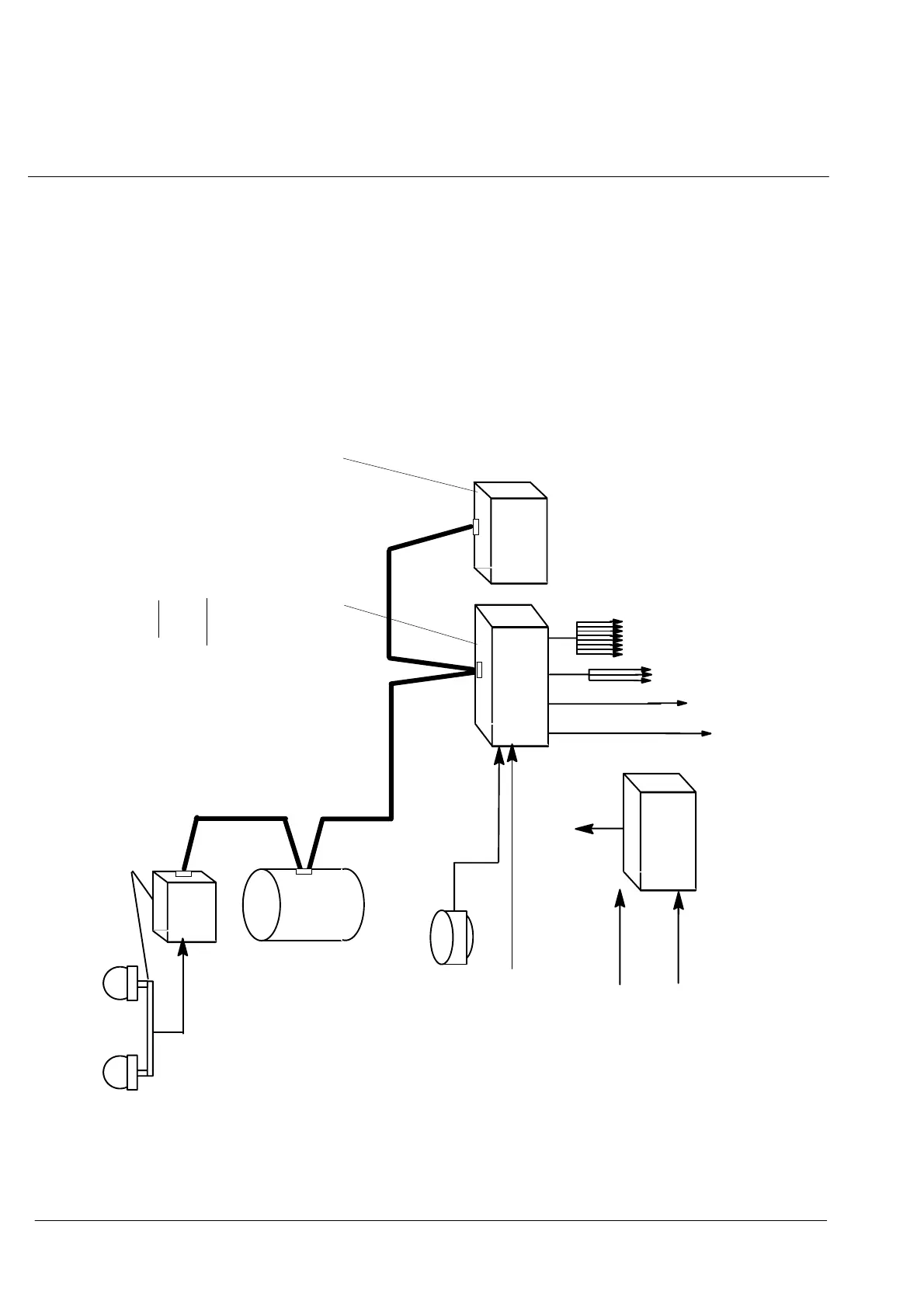

STD 22 GSM Gyro Compass System
*
*(GMS = Gyro/Satellite/Magnet)
see manual no.:3648
see manual no.: 3647
Inputs:
-- Pulse Log
-- Pulse Log Direction
Pulse Log Direction
Pulse Log
Outputs:
Distribution Unit:
-- 8x Heading RMG course bus or NMEA
-- 3x Step (6 steps/degree), 24/35VDC, max. 10W
-- 1x RS232 serial interface for printer
-- 1x rate of turn +/-- 10V for 30/100/300 degrees/min
-- 12x Status (potential free)
Compass
STD 22
110 --233
CAN bus
Processor
Unit
114--001
Antenna unit
114 --002
Magnetic sonde
115--230VAC
50/60Hz
108--010
*
*The number of necessary
AC/DC converters depends on the neces-
sary max. power of all supplied devices
see manual no.: 3717
