Timer A
M30240 Group
Rev.1.00 Sep 24, 2003 Page 68 of 360

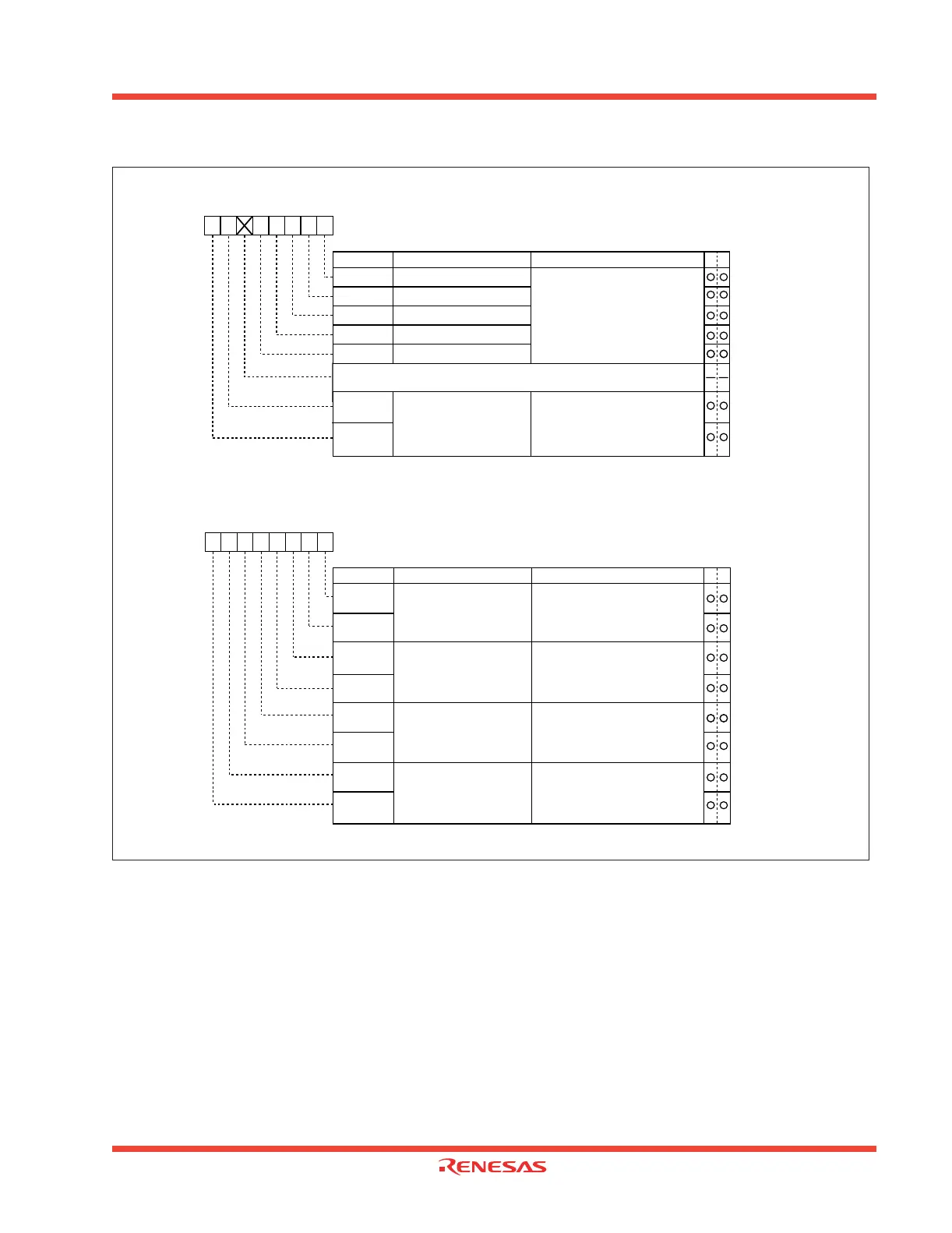

Figure 1.62: Timer A-related registers (3)
TA1TGL
Symbol Address When reset
TRGSR 0383
16
00
16
Timer A1 event/trigger
select bit
0 0 :
Input on TA1
IN
is selected (Note)
0 1 : TB2 overflow is selected
1 0 : TA0 overflow is selected
1 1 : TA2 overflow is selected
Trigger select register
Bit name FunctionBit symbol
b7 b6 b5 b4 b3 b2 b1 b0
0 0 : Input on TA2
IN
is selected (Note)
0 1 : TB2 overflow is selected
1 0 : TA1 overflow is selected
1 1 : TA3 overflow is selected
0 0 :
Input on TA3
IN
is selected (Note)
0 1 : TB2 overflow is selected
1 0 : TA2 overflow is selected
1 1 : TA4 overflow is selected
0 0 :
Input on TA4
IN
is selected (Note)
0 1 : TB2 overflow is selected
1 0 : TA3 overflow is selected
1 1 : TA0 overflow is selected
Timer A2 event/trigger
select bit
Timer A3 event/trigger
select bit
Timer A4 event/trigger
select bit
WR
TA1TGH
TA2TGL
TA2TGH
TA3TGL
TA3TGH
TA4TGL
TA4TGH
b1 b0
b3 b2
b5 b4
b7 b6
Note: Set the corresponding port direction register to “0”.
TA1OS
TA2OS
TA0OS
One-shot start flag
Symbol Address When reset
ONSF 0382
16
00X00000
2
Timer A0 one-shot start flag
Timer A1 one-shot start flag
Timer A2 one-shot start flag
Timer A3 one-shot start flag
Timer A4 one-shot start flag
TA3OS
TA4OS
Bit name FunctionBit symbol
b7 b6 b5 b4 b3 b2 b1 b0
TA0TGL
TA0TGH
0 0 :
Input on TA0
IN
is selected (Note)
0 1 : TB2 overflow is selected
1 0 : TA4 overflow is selected
1 1 : TA1 overflow is selected
Timer A0 event/trigger
select bit
b7 b6
Note: Set the corresponding port direction register to “0”.
WR
1 : Timer start
When read, the value is “0”
Nothing is assigned.
Write "0" when writing to this bit. When read, the value is indeterminate.
To Next Page
