RL78/F13, F14 CHAPTER 16 SERIAL INTERFACE IICA

R01UH0368EJ0210 Rev.2.10 1085

Dec 10, 2015

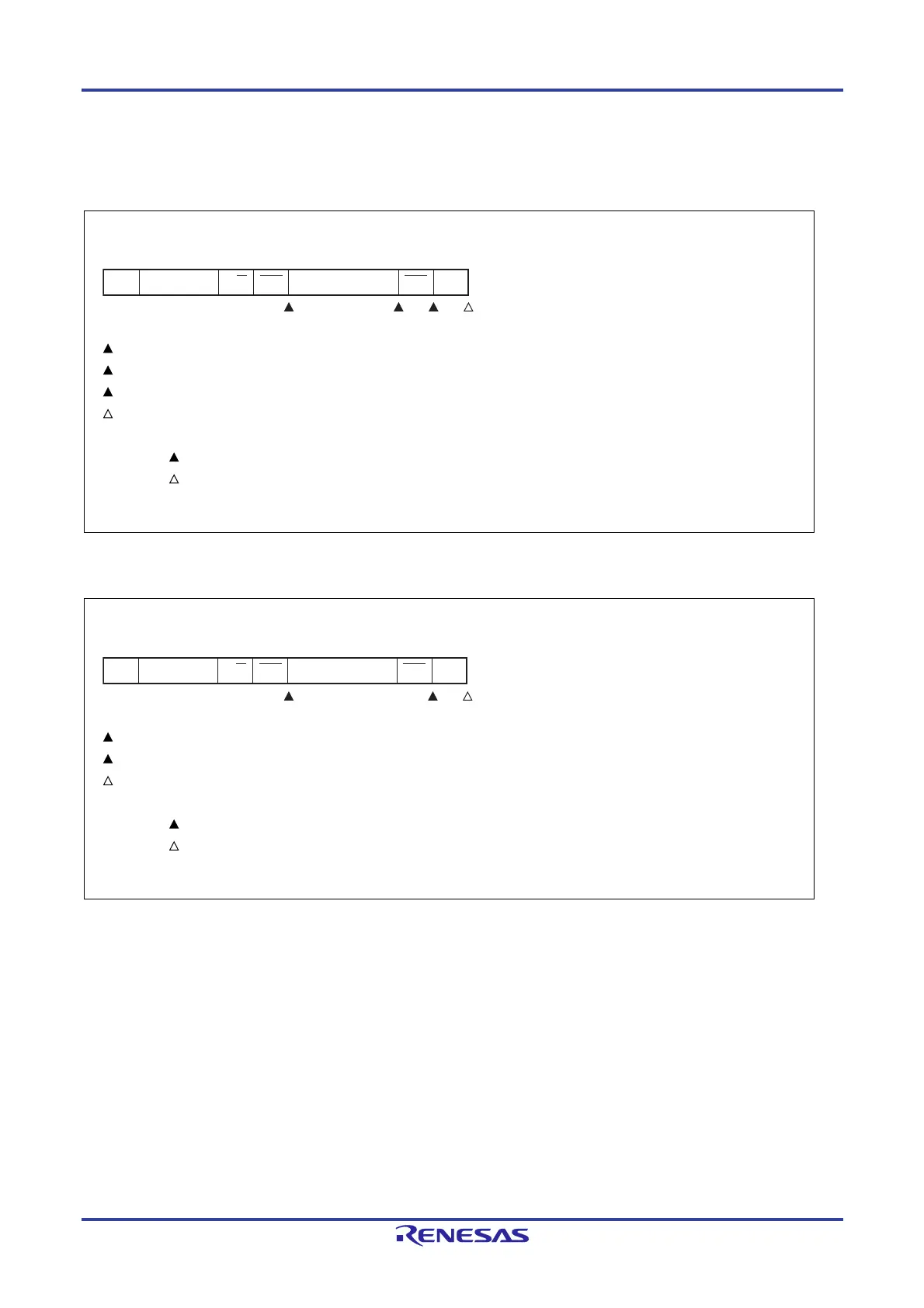

(g) When arbitration loss occurs due to a stop condition when attempting to generate a restart condition

(i) When WTIM0 = 0

1: IICS0 = 1000×110B

2: IICS0 = 1000×000B (Sets the WTIM0 bit to 1)

3: IICS0 = 1000××00B (Sets the STT0 bit to 1)

4: IICS0 = 01000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1

1: IICS0 = 1000×110B

2: IICS0 = 1000××00B (Sets the STT0 bit to 1)

3: IICS0 = 01000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care

ST AD6 to AD0 R/W ACK D7 to D0 ACK SP

STT0 = 1

↓

3 4 2

ST AD6 to AD0 R/W ACK D7 to D0 ACK SP

STT0 = 1

↓

2 3
