RL78/F13, F14 CHAPTER 37 PACKAGE DRAWING

R01UH0368EJ0210 Rev.2.10 1832

Dec 10, 2015

CHAPTER 37 PACKAGE DRAWING

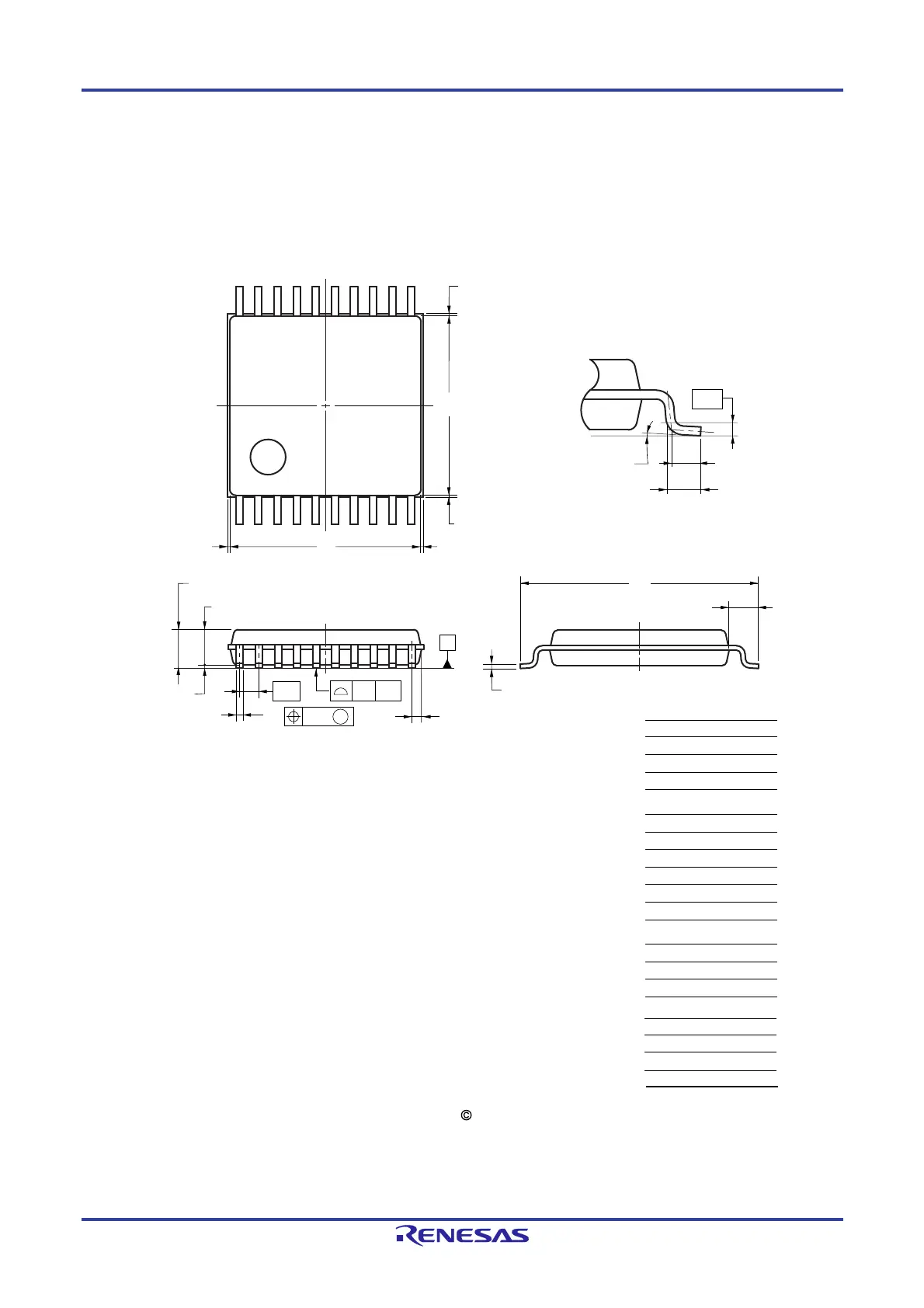

37.1 20-pin products

20-PIN PLASTIC SSOP (7.62 mm (300))

detail of lead end

NOTE

Each lead centerline is located within 0.13 mm

of its true position (T.P. ) at maximum material

condition.

ITEM DIMENSIONS

0.325

0.65 (T.P .)

0.10±0.05

1.30±0.10

1.20

8.10±0.20

6.10±0.10

1.00±0.20

0.50

0.13

0.10

0.22

+0.10

−0.05

0.15

+0.05

−0.01

3°

+5°

−3°

(UNIT:mm)

P20MC-65-CAA-1

6.50±0.10

0.25(T. P)

0.60±0.15

0.25 MAX.

0.15 MAX.
