RL78/F13, F14 CHAPTER 37 PACKAGE DRAWING

R01UH0368EJ0210 Rev.2.10 1833

Dec 10, 2015

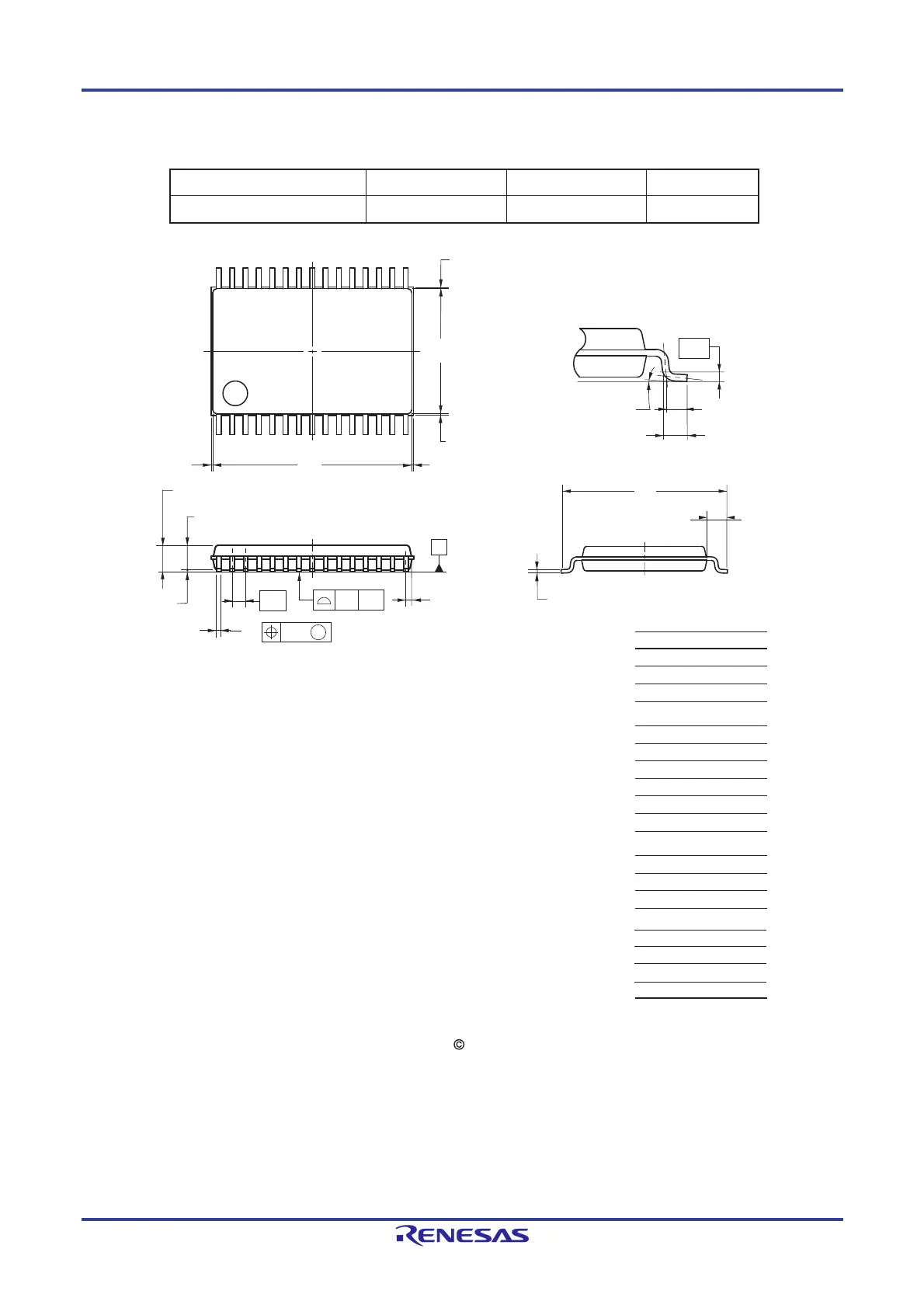

37.2 30-pin products

JEITA Package Code RENESAS Code Previous Code MASS (TYP.) [g]

P-LSSOP30-6.1x9.7-0.65 PLSP0030JB-A P30MC-65-CAB-2 0.18

1630

detail of lead end

NOTE

Each lead centerline is located within 0.13 mm of its

true position (T.P.) at maximum material condition .

ITEM DIMENSIONS

0.30

0.65 (T.P. )

0.10±0.05

1.30±0.10

1.20

8.10±0.20

6.10±0.10

1.00±0.20

0.50

0.13

0.10

0.22

+0.10

−0.05

0.15

+0.05

−0.01

3°

+5°

−3°

(UNIT:mm)

9.70±0.10

0.25(T.P. )

0.60±0.15

0.25 MAX.

0.15 MAX.
