RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 214

Dec 10, 2015

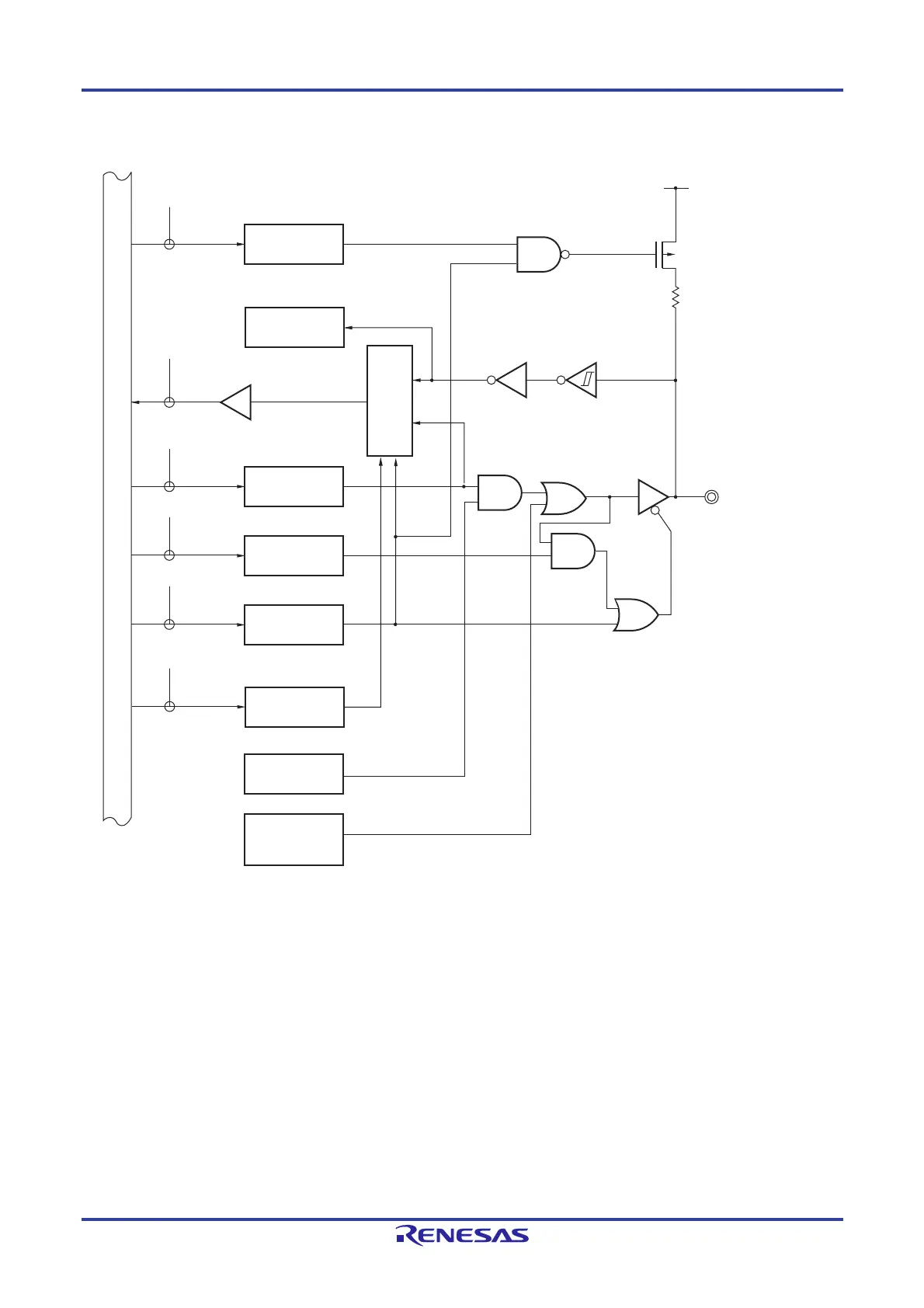

Figure 4-7. Block Diagram of P12

WRPU

PORT

WRPM

PU12

P12

PM12

EVDD

P-ch

PU1

PM1

WRPOM

POM12

POM1

WRPMS

PMS

PMS0

SO10/TXD1

TO11/SNZOUT3

/(TRDIOD0)

P12/TI11/TO11/

INTP5/SO10/

TXD1/SNZOUT3

(TRDIOD0)

Alternate function

Internal bus

Selector

Output latch

P1: Port register 1

PU1: Pull-up resistor option register 1

PM1: Port mode register 1

POM1: Port output mode register 1

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
