RL78/F13, F14
CHAPTER 4 PORT FUNCTIONS
R01UH0368EJ0210 Rev.2.10
235
Dec 10, 2015

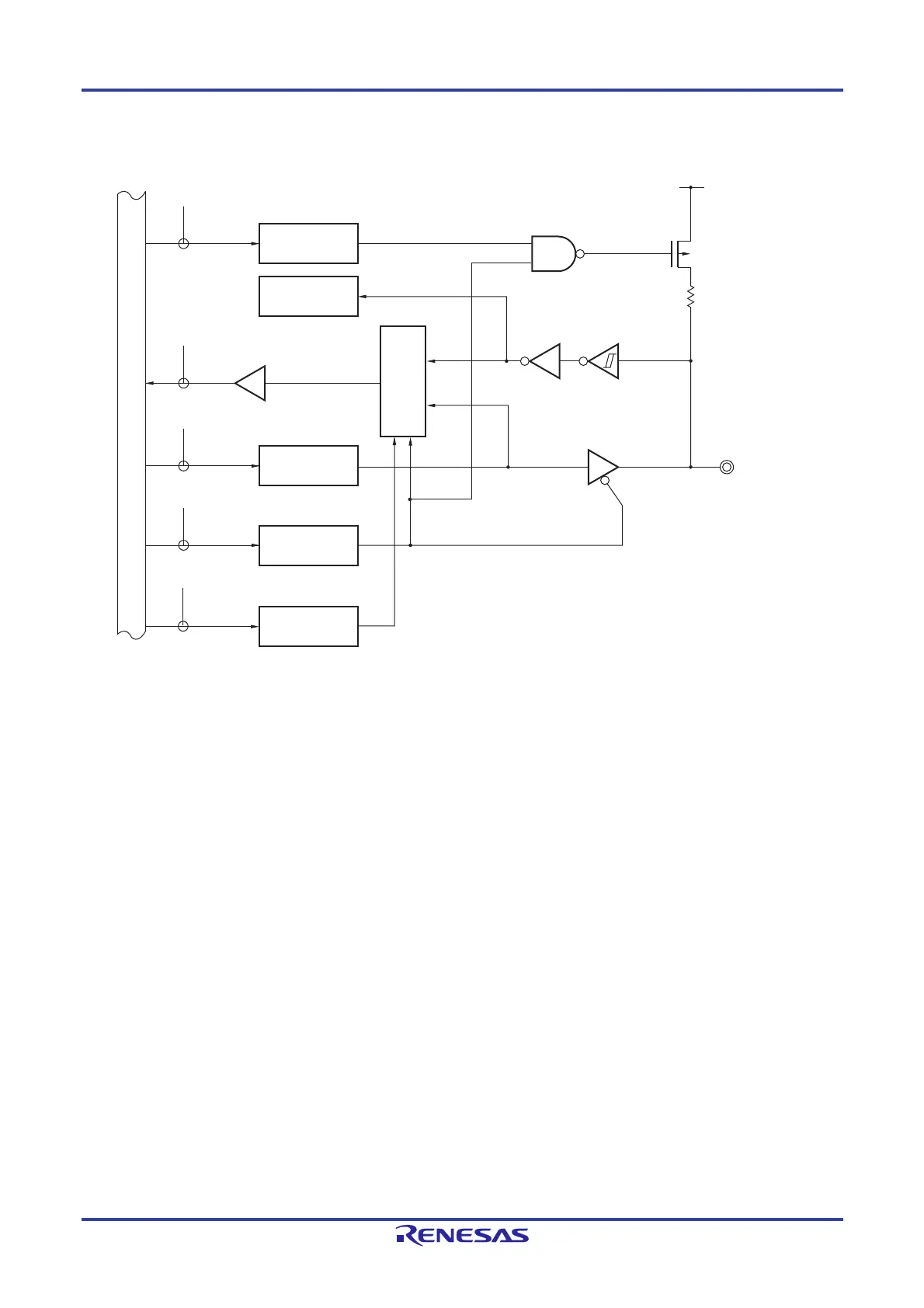

Figure 4-24. Block Diagram of
P47
P47/INTP13
WR
PU
RD
WR
PORT
WR
PM
PU47
PM47
EV
DD
P-ch
PU4
PM4
P4
WR
PMS
PMS
PMS0
P47
Alternate function
Internal bus
Selector
Output latch
P4:
Port register 4
PU4:
Pull-up resistor option register
4
PM4:
Port mode reg
ister 4
PMS:
Port mode select register
RD: Read
signal
WRxx: Write
signal
266
