RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 306

Dec 10, 2015

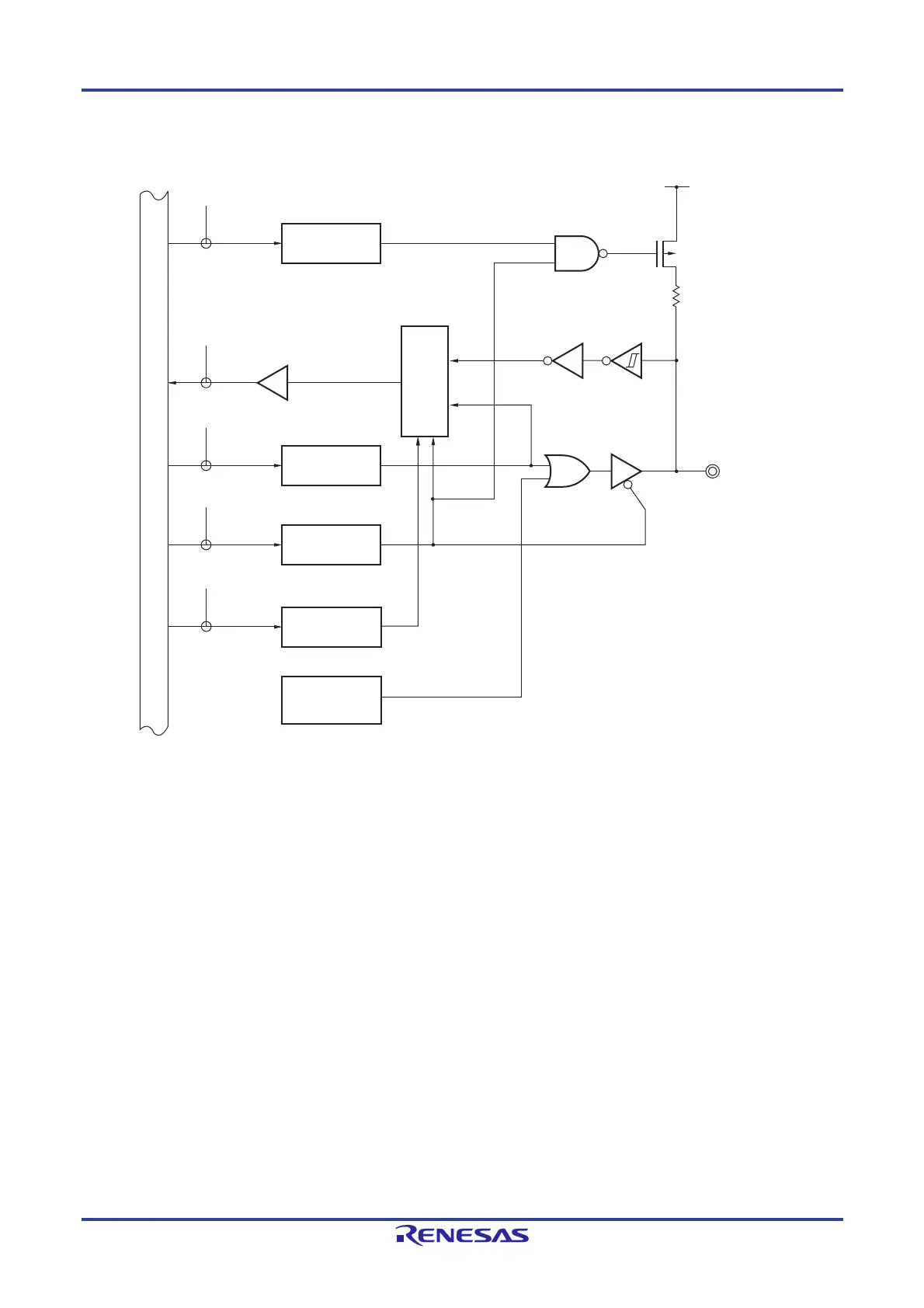

Figure 4-73. Block Diagram of P154 to P157

P154/(SNZOUT7),

P155/(SNZOUT6),

P156/(SNZOUT5),

P157/(SNZOUT4)

PORT

PU154 to PU157

P154 to P157

PM154 to PM157

P-ch

PU15

PM15

P15

(SNZOUT4 to

SNZOUT7)

PMS

PMS0

Internal bus

Output latch

Alternate function

Selector

P15: Port register 15

PU15: Pull-up resistor option register 15

PM15: Port mode register 15

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
