RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 305

Dec 10, 2015

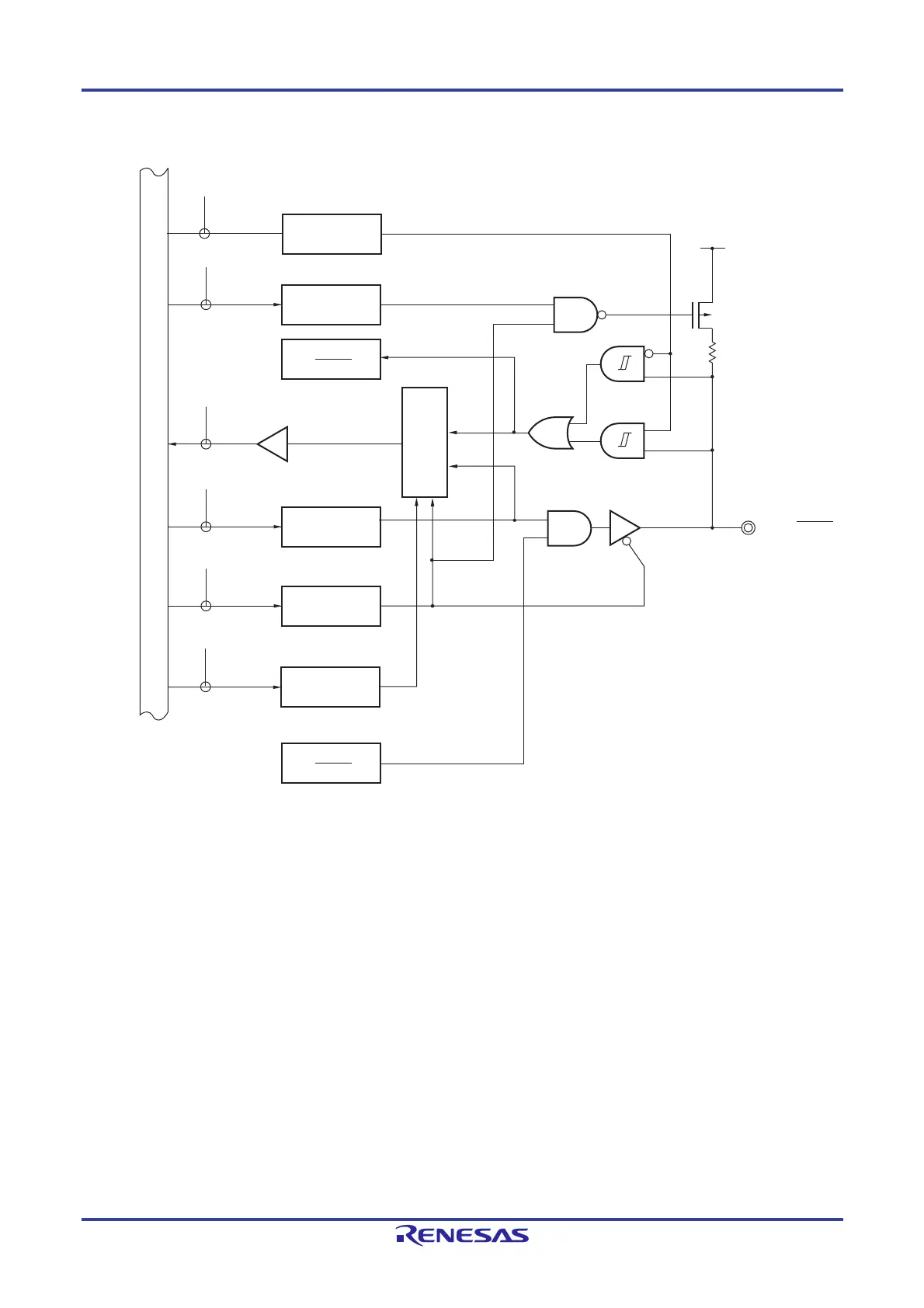

Figure 4-72. Block Diagram of P153

P153/(SCK11)

PORT

WRPM

PU153

(SCK11)

P153

PM153

EVDD

P-ch

PU15

PM15

P15

WRPMS

PMS

PMS0

PITHL15

PITHL153

WRPITHL

CMOS

(Schmitt3)

CMOS

(Schmitt1)

Internal bus

Output latch

Alternate function

(SCK11)

Alternate function

Selector

P15: Port register 15

PU15: Pull-up resistor option register 15

PM15: Port mode register 15

PMS: Port mode select register

PITHL15: Port input threshold control register 15

RD: Read signal

WRxx: Write signal
