RL78/F13, F14 CHAPTER 6 TIMER ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 520

Dec 10, 2015

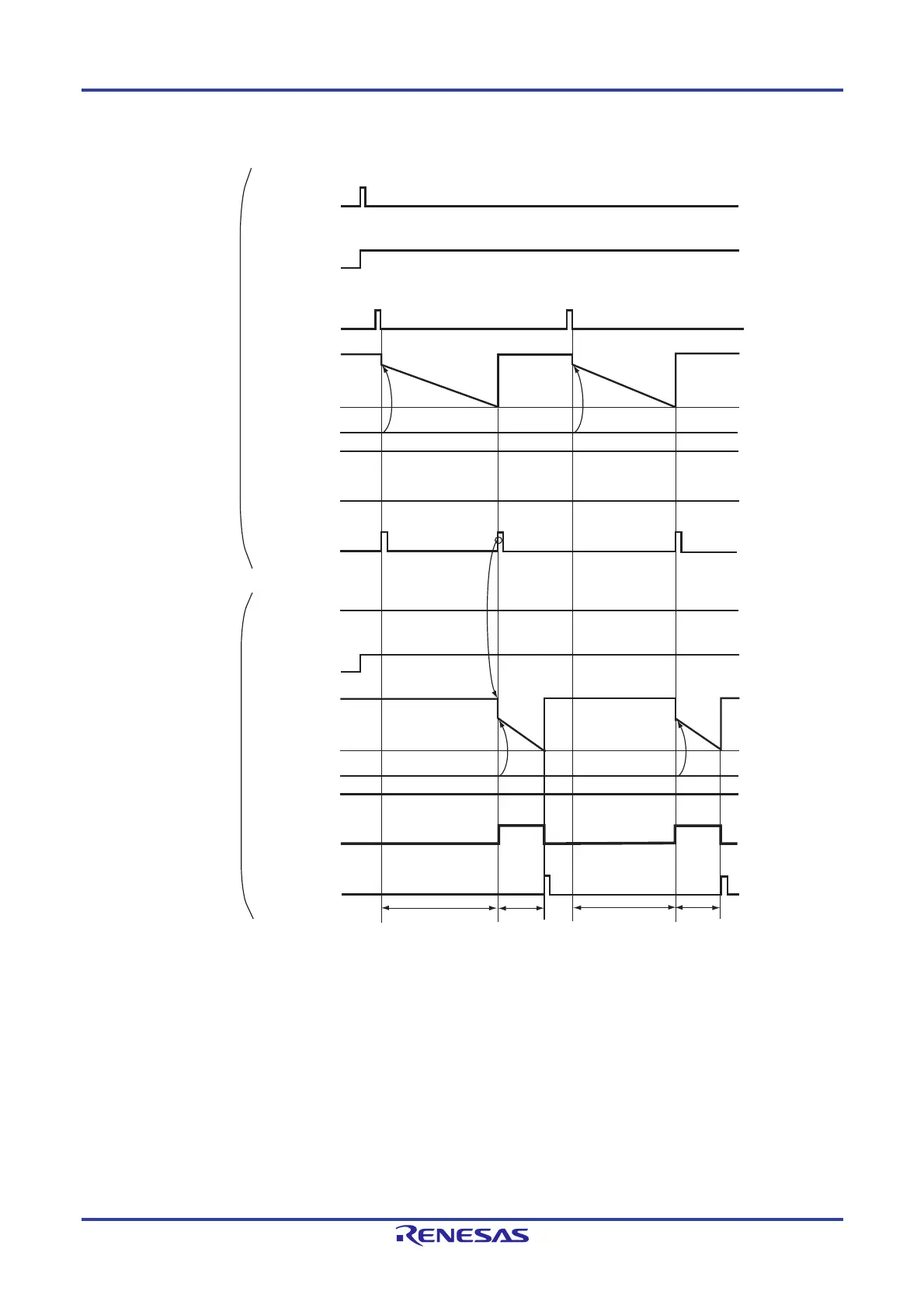

Figure 6-68. Example of Basic Timing of Operation as One-Shot Pulse Output Function

Remarks 1. m: Unit number (m = 0, 1), n: Master channel number (n = 0, 2, 4, 6)

p: Slave channel number (n < p ≤ 7)

2. TSmn, TSmp: Bit n, p of timer channel start register m (TSm)

TEmn, TEmp: Bit n, p of timer channel enable status register m (TEm)

TImn, TImp: TImn and TImp pins input signal

TCRmn, TCRmp: Timer count registers mn, mp (TCRmn, TCRmp)

TDRmn, TDRmp: Timer data registers mn, mp (TDRmn, TDRmp)

TOmn, TOmp: TOmn and TOmp pins output signal

3. Unit 1 is not provided in the Group A products.

Channels 7 to 4 of unit 1 are not provided in the Group B, C, and D products.

TEmn

TDRmn

TCRmn

TOmn

INTTMmn

0000H

TSmp

TEmp

TDRmp

TCRmp

TOmp

INTTMmp

0000H

Master

channel

Slave

channel

a+2

FFFFH

TImn

TSmn
