VisualMotion 9 Troubleshooting Guide VisualMotion Tools for Diagnosing 2-3
DOK-VISMOT-VM*-09VRS**-WA02-EN-P
Serial_Comm.tif

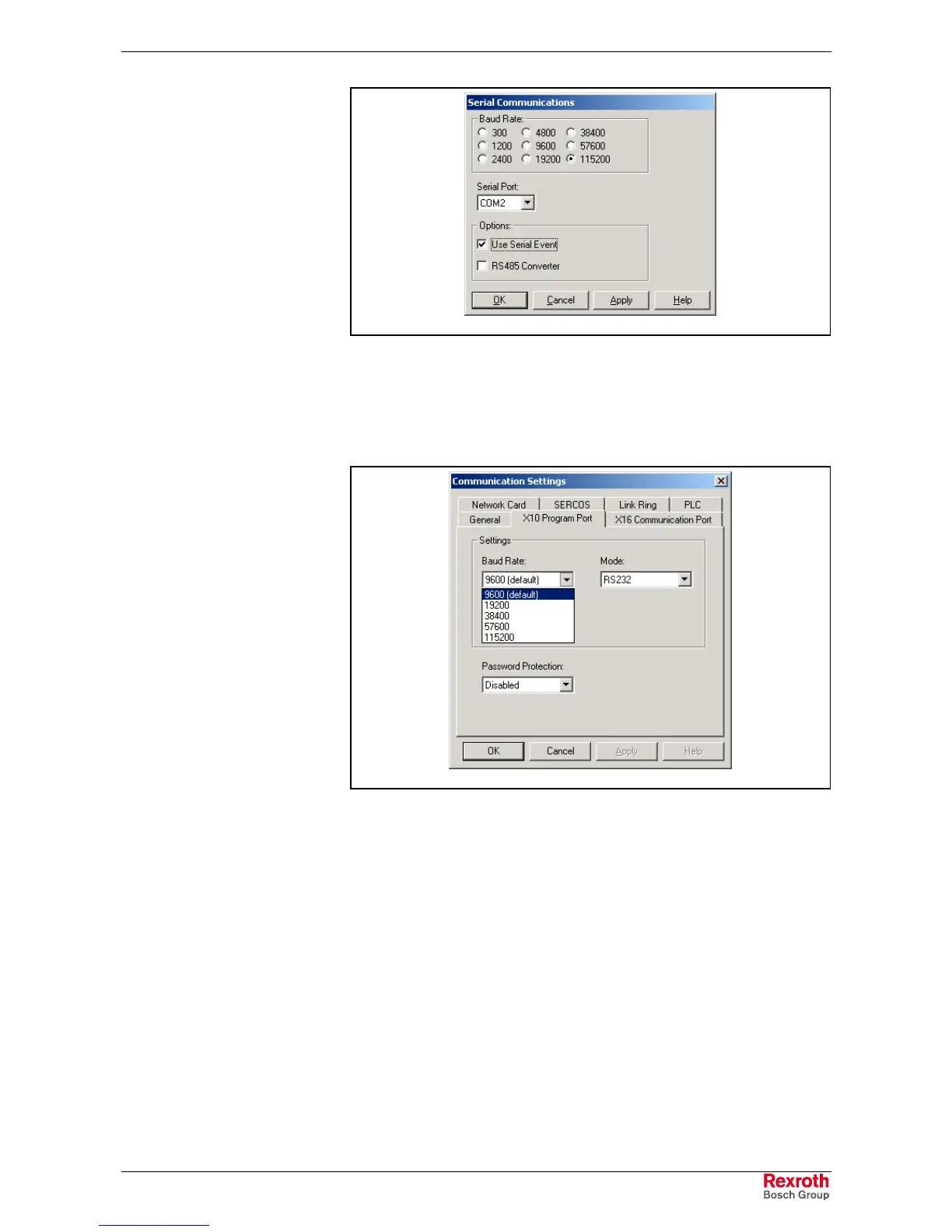

Fig. 2-3: Serial Communications
Changing the Serial Communication Baud Rate
From VisualMotion Toolkit's main menu, select Tools ⇒
⇒⇒
⇒ Control
Settings. Select the control's X10 or X16 port and change the baud rate.
ControlSettings.tif
Fig. 2-4: Control Settings
