Ricoh Aficio SP C232SF Service Manual

ADF
SM 4-65 M018/M019
Replacement
&
Adjustment

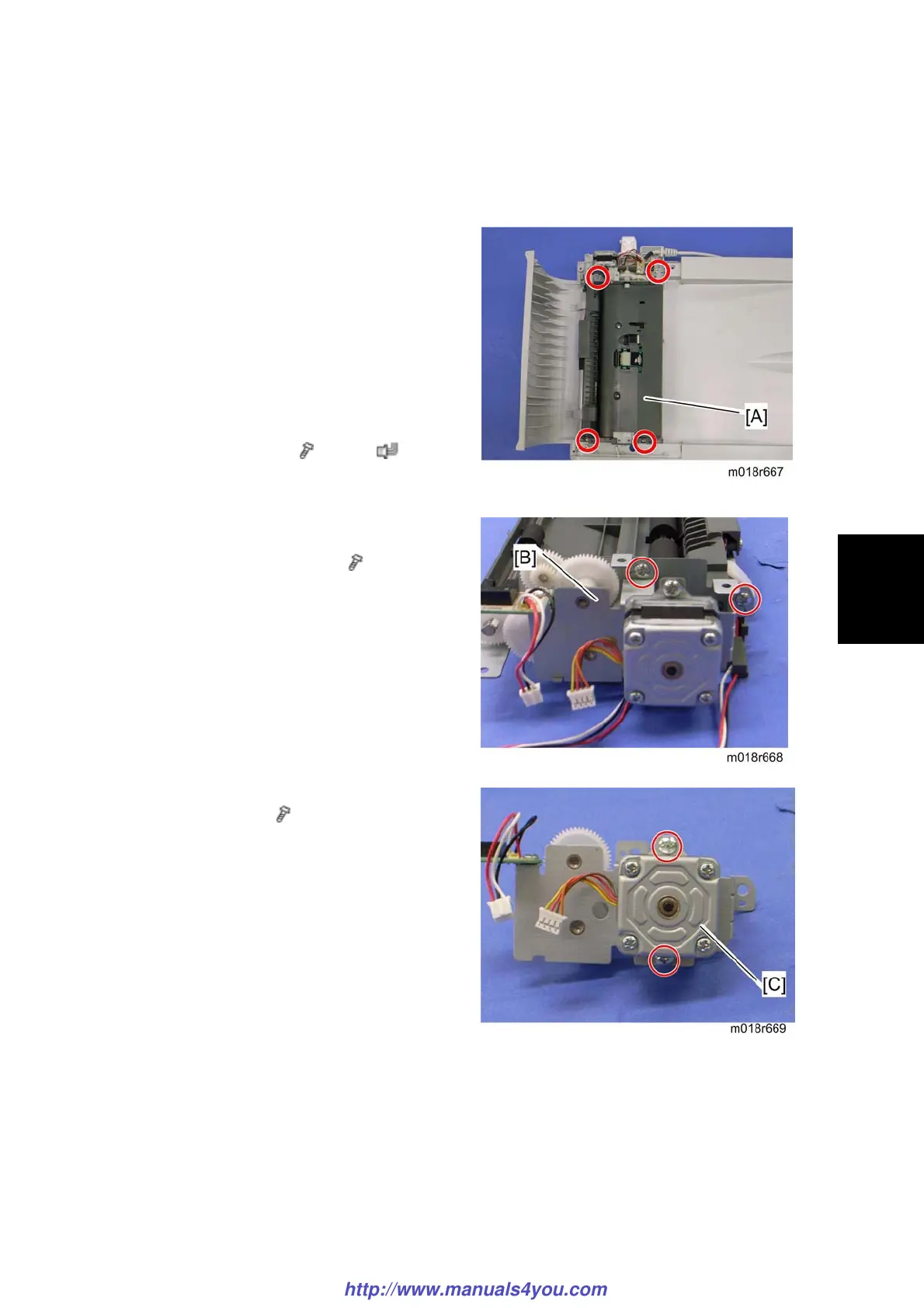

4.12.8 ADF MOTOR
1. ADF unit ( p.4-60)
2. Original Tray ( p.4-61)
3. ADF feed unit ( p.4-62)
4. ADF front cover ( p.4-63)
5. ADF rear cover ( p.4-63)
6. ADF drive unit [A] (
x 4, all s)
7. ADF motor assembly [B] (
x 2)
8. ADF motor [C] (
x 2)
