Ricoh Aficio SP C232SF - Black Aio Motor

AIO Cartridge
SM 4-13 M018/M019
Replacement
&
Adjustment
4.5.2 BLACK AIO MOTOR
1. Left cover ( p.4-5)

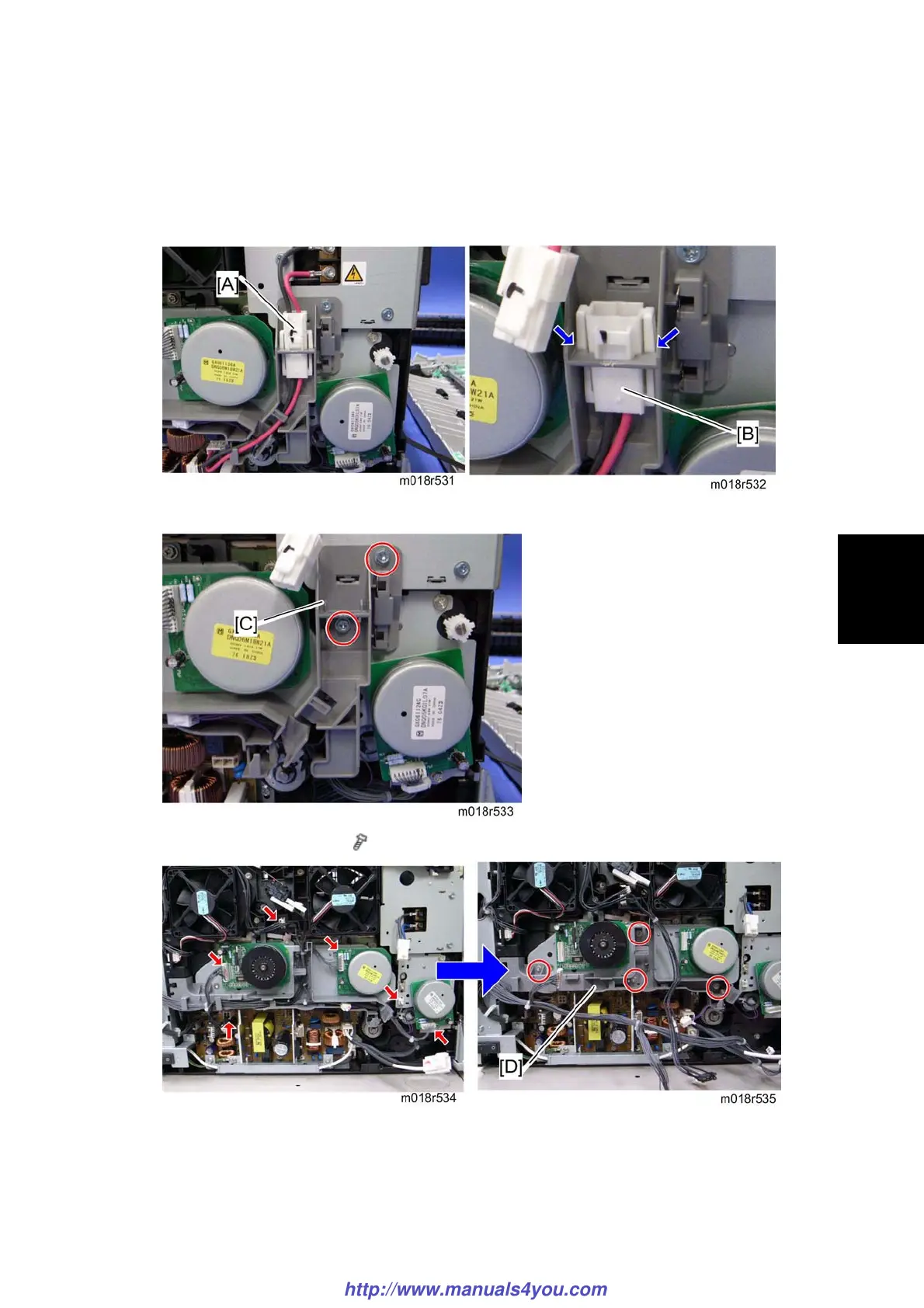

2. Disconnect the fusing connector [A] and remove the fusing relay harness [B] (hooks).
3. Fusing harness guide [C] (
x 2)
4. Disconnect the connectors shown by arrows in the above picture and release all
harnesses on the harness guide [D].
